Solar Panel for Industrial Wate Heater Usage
US$ 148.76 - 245.9
/ Set
10 Sets(Min. Order)
- Shanghai Ningbo
- Credit Card
You May Like
-
2016 New Fashionable Style 100L -300L Pressurized Flat Plate Solar Water Heater for Overseas Market
-
150L 300L Integrative System Solar Flat Plate Heat Collector
-
Solar Storm 300L Split Pressure Flat Plate Solar Water Heater
-
High Tech Heat Pipe Solar Powered Water Heater Vacuum Tube
-
Four Season Use 300l Pressured China Solar Water Heater
-
Quality Assured Solar Energy Pressurized Heat Pipe Bathroom Heater
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Shinesea | |
| Model Number | HX-FP-100 | Type | Flat Panel | |
| Application | Solar Thermal | Pipe Material | Copper |
Product Description
Solar Panel for industrial wate heater usage
Product Description
Solar Panel for industrial wate heater usage
<
| Description | Model No.FP2-CT All Copper Flat Plate With Blue Titanium Coating | Model No.FP2-CAT Cu-Al Composite Flate With Blue Titanium Coating | Model No. FP2-CC All Copper Flat Plate With Black Chromed Coating | Model No. FP2-CAA Cu-Al Composite Flate With Anodization Coating | |
| Diamension L*W*H | 2000x1000x80 mm | 2000x1000x80 mm | 2000x1000x70 mm | 2000x1000x70 mm | |
| Gross Area | 2.00 M2 | 2.00 M2 | 2.00 M2 | 2.00 M2 | |
| Absorber Area | 1.85 M2 | 1.85 M2 | 1.85 M2 | 1.85 M2 | |
| Net Weight | 35 Kg | 35Kg | 35 Kg | 34Kg | |
| Max. Pressure | |||||
| Max Working Pressure | 0.6 Mpa | 0.6 Mpa | 0.6 Mpa | 0.6 Mpa | |
| Connector Type | Staight Pipe Without Screw | Staight Pipe Without Screw | Staight Pipe Without Screw | Staight Pipe Without Screw | |
| Absober | Dimension LxWxT | 1850 x 140 x δ0.3 mm | 1850 x 140 x δ0.3 mm | 1850 x 140 x δ0.15 mm | 1850x140x δ0.41 mm |
| Materials | Red Copper & Aluminum Belt | Aluminum | Red Copper & Aluminum Belt | Aluminum | |
| Surface Treatment | Blue Titanium Coating (Imported from Germany) | Blue Titanium Coating (Imported from Germany) | Black Chromed | Anodization | |
| Construction Type | Fin & Tubes (Ultrasonic Welding) | Fin & Tubes (Ultrasonic Welding) | Fin & Tubes (Ultrasonic Welding) | Fin & Tubes (Ultrasonic Welding) | |
| Absorptivity/Emissivity | 96%(+-2%)/5%(+-2%) | 96%(+-2%)/5%(+-2%) | 96%(+-3%)/9%(+-5%) | 95%(+-3%)/18%(+-5%) | |
| Riser Tube Size/Material | Ø10 x 0.5 x 1886 mm 7pcs/ Copper TP2 | Ø10 x 0.5 x 1886 mm 7pcs/ Copper TP2 | Ø10 x 0.5 x 1888 mm 7pcs/ Copper TP2 | Ø9.5 xδ0.4 x 1888 mm 7 pcs/Copper TP2 | |
| Header Tube Size/Material | Ø22 x 0.6 x 1060mm 2pcs Copper TP2 | Ø22 x 0.6 x 1060mm 2pcs Copper TP2 | Ø22 x 0.6 x 1060mm 2pcs Copper TP2 | Ø22 x 0.6 x 1060mm 2pcs Copper TP2 | |
| Thermal Insulation | Thickness | Back:50 mm | Back:50 mm | Back:50 mm | Back:50 mm |
| Conductivity (W/mK) | <= 0.048W/m.K under test temperature 70℃ | <= 0.048W/m.K under test temperature 70℃ | <= 0.048W/m.K under test temperature 70℃ | <= 0.048W/m.K under test temperature 70℃ | |
| Material | 32K Fibre Glass (Black backing) | 32K Fibre Glass (Black backing) | 32K Fibre Glass (Black backing) | 24K Fibre Glass (Black backing) | |
| Frame | Bronze/Silver Aluminum Alloy, δ 1.0mm | Bronze/Silver Aluminum Alloy, δ 1.0mm | Bronze/Silver Aluminum Alloy, δ 1.0mm | Bronze Aluminum Alloy, δ 0.9mm | |
| Back Plate | Galvanized Steel Plate, δ 0.3mm | Galvanized Steel Plate, δ 0.3mm | Galvanized Steel Plate, δ 0.3mm | Galvanized Steel Plate, δ 0.3mm | |
| Sealing Gasket | Rubber | Rubber | Rubber | Rubber | |
| Transparent Cover | Number of covers | 1 | 1 | 1 | 1 |
| Dimension of the Opening LxW | 1985x985 mm | 1985x985 mm | 1985x985 mm | 1985x985 mm | |
| Transmission | 89% | 89% | 89% | 89% | |
| Material | 4.00 mm Low-iron Tempered Texture glass | 4.00 mm Low-iron Tempered Texture glass | 4.00 mm Low-iron Tempered Texture glass | δ4.0mm float glass | |
| Container Loading Sets | 20GP | 155 | 155 | 155 | 155 |
| 40HC | 318 | 318 | 318 | 318 | |

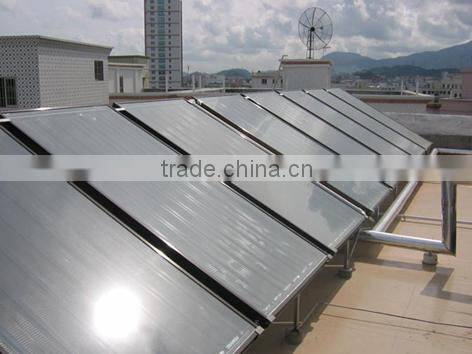

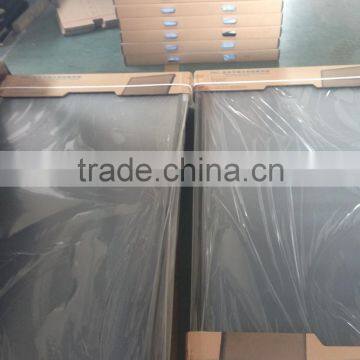

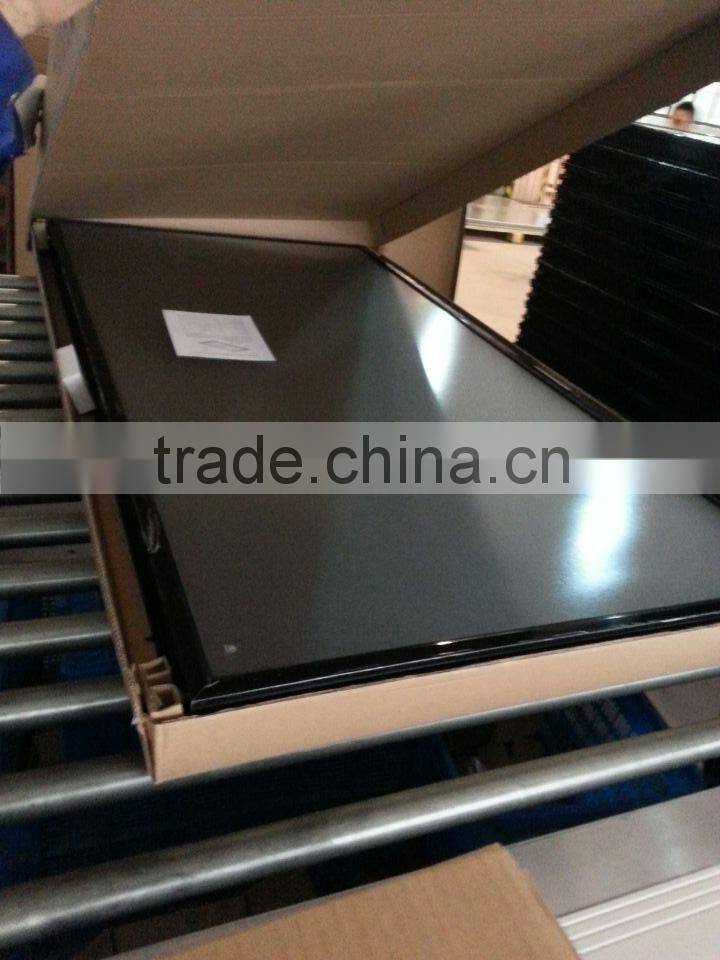

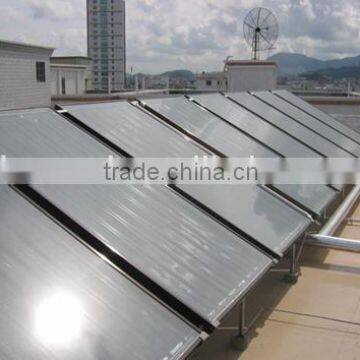

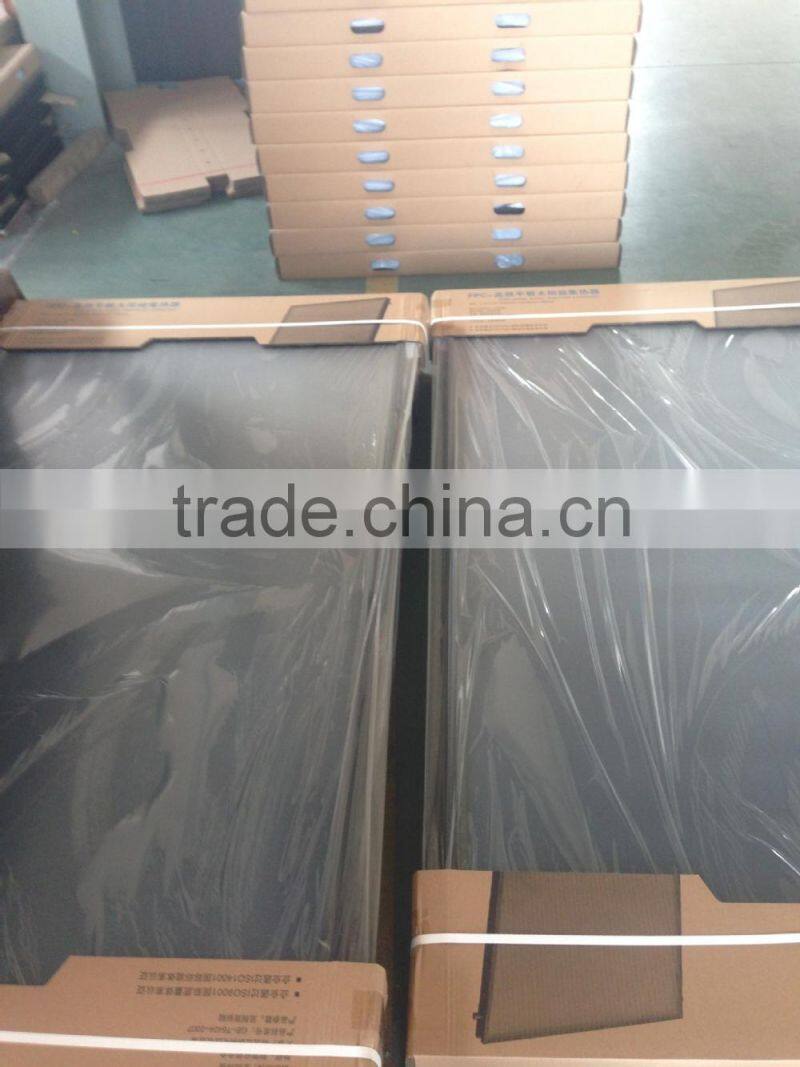

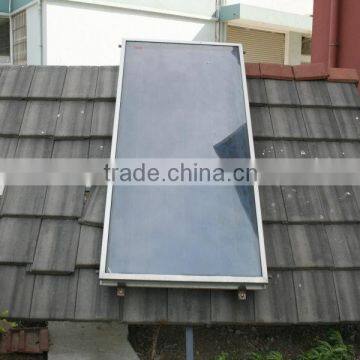

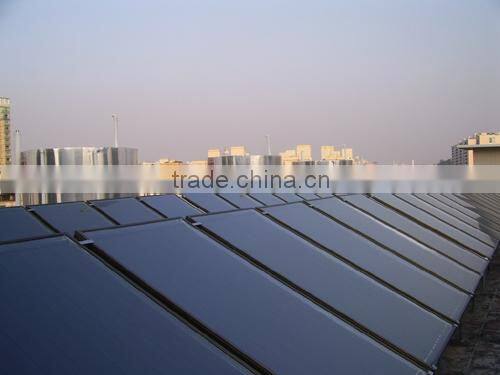

Products Show
