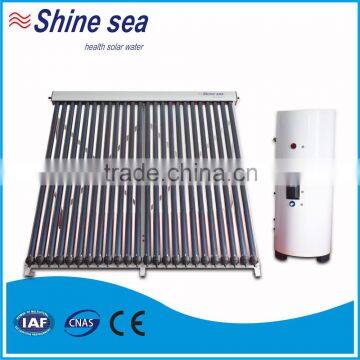

Low Heat Rejection Solar Pool Heating System (CCC CE ISO9001)

Specification:

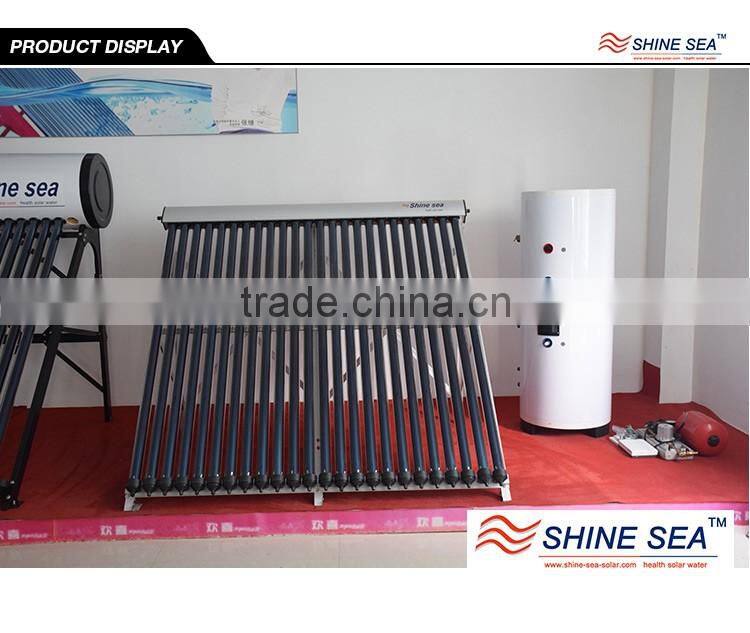

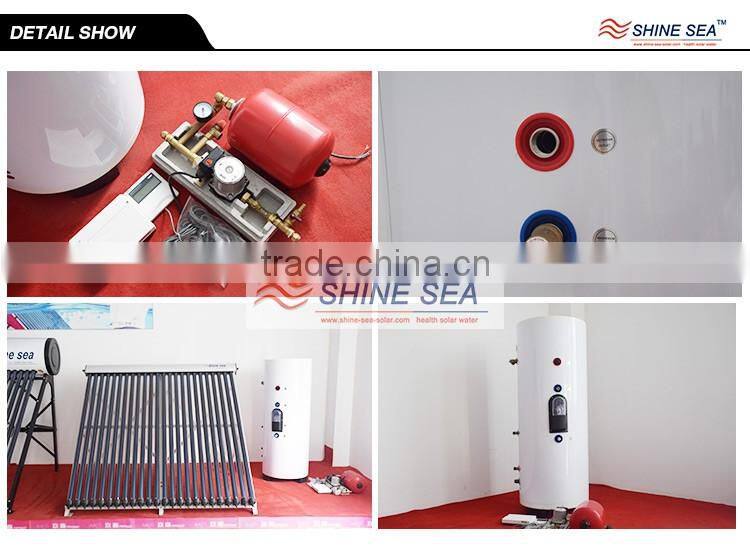

Include

pressure tank,pressure solar collector,

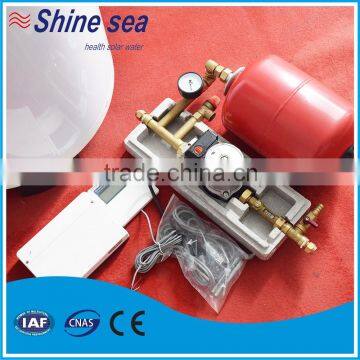

working station,expansion kit,controller,pump.

Working pressure

0.6Mpa.

Daily efficiency

1.>55%(>42% in winter)

Heat preservation

72h-80h

Electrical element

72h-80h

Electrical element

1500w-3000w

Heat pipe anti-freezing

-35c.

Advantages:

1.New manifold,more stronger;

2.The frame can be adjusted;

3.Easy installation;

4.Tail stock support is made of stainless steel or aluminum alloy.

Feature:

1.Module design,arbitrary combination,harmony with the building perfectly;

2.Intelligent control and automatic operation;

3.Anti-freeze:using the anti-freezing liquid as the medium and the controller has the anti-freezing function;

4.it can be combined with existing pipeline

5.Multifunction:bathing,washing,domestic heating,etc;

6.Working at anytime and enjoyable.

Material:

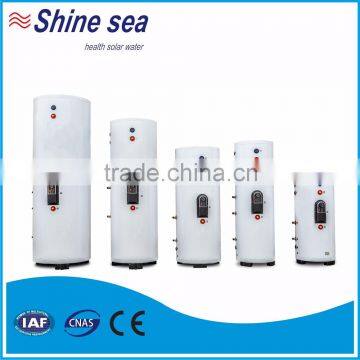

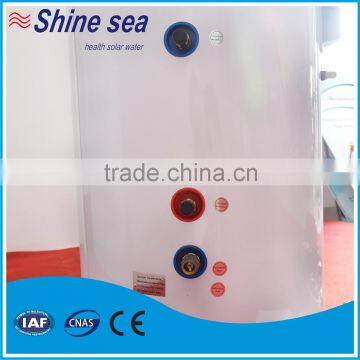

Inner tank:

SUS304,thickness 1.2mm/1.5mm/2.0mm

Out tank

PVDF steel white color /Grey color

Heating exchanger

copper,12mm-diameter,0.8mm thickess,15m-20m

Electrical booster

1500w/2000w/3000w

P/T valve:

AKE brand

Circulation pump:

Wilo brand

Expansion tank:

Italy brand

Controller:

Shuangri brand

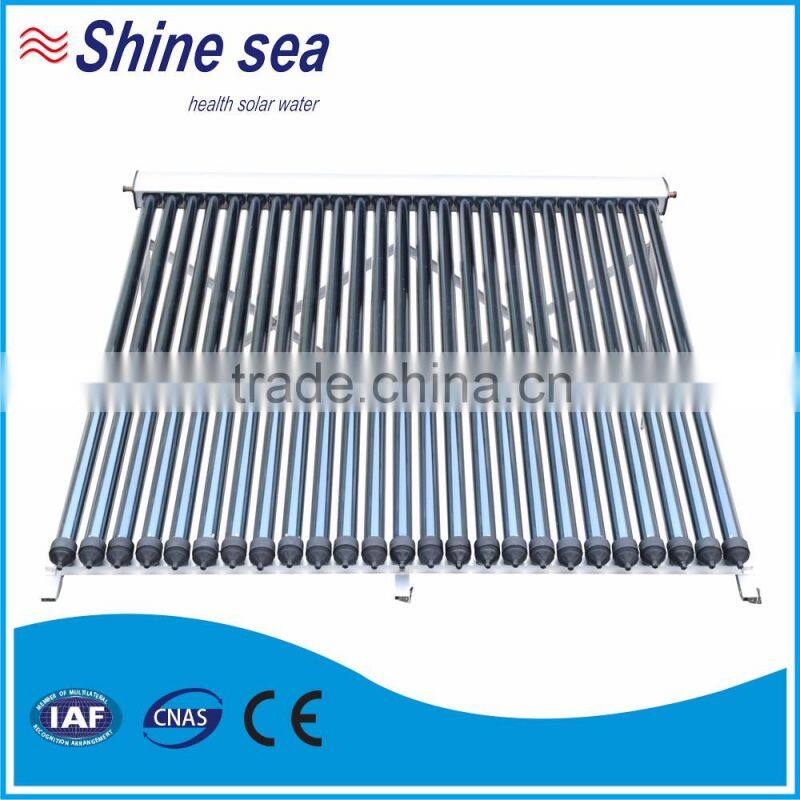

Collector:

Shinesea HPC Series

Working principle:

The collector absorbs solar energy and transmits it to the water tank through circulation.

When the temperature of the collector reaches the set value,the controller starts the

circulation pump automatically.

Location:

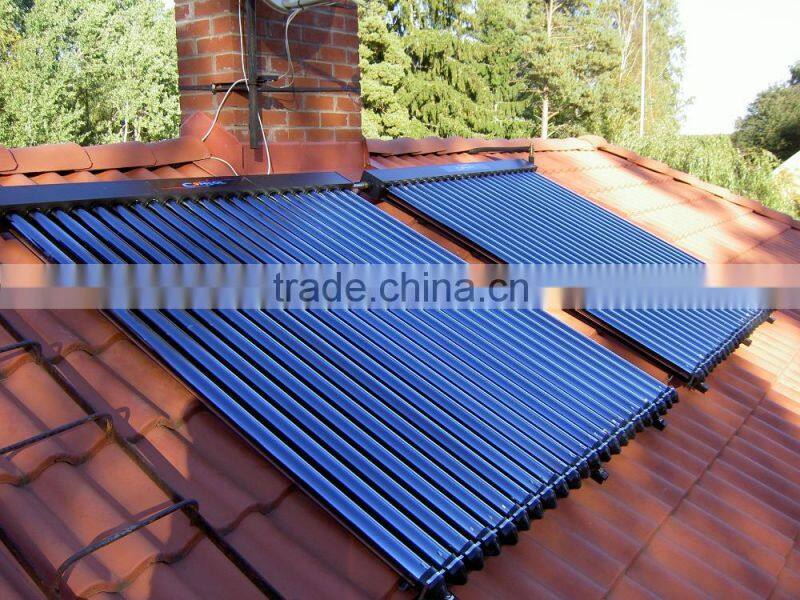

Collector maybe installed either on the roof or wall while water tank may be installed

at any place in a villa flexible .collector harmonizes with villa’s outlook and maintains
