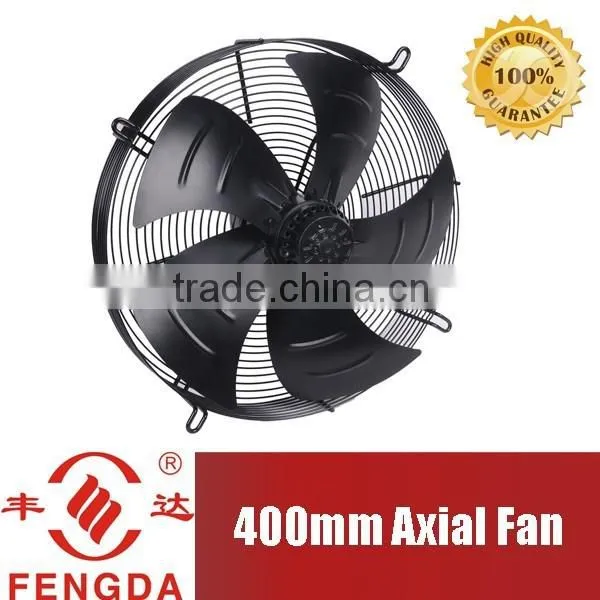

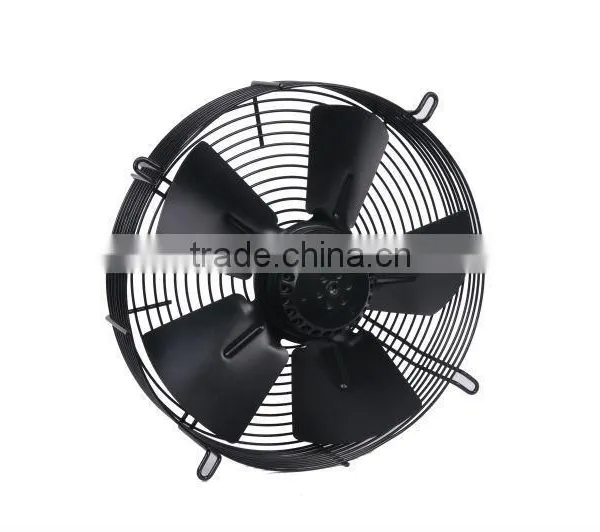

400mm Vacuum Cleaner Motor Fan for Air Cooling
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
UL Approved 450mm Fan Motor for Air Cooler
-
UL Approved 400mm Fan Motor for Central Air Unit
-
High-speed Industrial Axial Flow Fan/ventilation Fan/exhaust Fan Manufacturer
-
500mm AC Heat Pump Fan Motor With External Rotor
-
200Mmm Exhaust Axial Fan Motor With External Rotor
-
250mm Dehumidifier Axial Fan Motor With IP54
Product Details
| Electric Current Type | AC | Mounting | Wall Fan | |
| Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
| Brand Name | FENGDA | Model Number | YWF400 | |
| Voltage | CE,CCC,UL approved | Power | 95-300 | |
| Air Volume | 2530-3490 | Speed | 920-1550 | |
| Certification | CCC, CE, CSA, GS, ROHS, UL, CCC, CE, ROHS, UL | After-sales Service Provided | Overseas third-party support available |
Product Description
450mm vacuum cleaner motor fan for air cooling
YWF series external rotor motors have two kinds ,single phase asynchronous capacitor fan motor and three phases
asynchronous fan motor.The Voltage of single phase motor is 120V,60Hz,220-240V,50/60Hz.The Voltage of three phases motor is 380V,50Hz,or according to customer's requirements.
Fan diameter is from 200mm-900mm.
The using life is over 30000 hours.
The using ambient temperature is from -30℃~60 ℃
| Model | Voltage V | Frequency Hz | Current A | Input Power W | Speed RPM | Air Flow m3/h | Capacitor uF | Noise dB(A) | Curve |
| YWF4D400 | 380 | 50 | 0.52 | 190 | 1380 | 3500 | / | 68 | 1 |
| YWF4E400 | 220 | 50 | 0.85 | 190 | 1380 | 3500 | 6 | 68 | 1 |
| 120 | 60 | 2.3 | 270 | 1600 | 4000 | 22 | 69 | 2 | |
| YWF6D400 | 380 | 50 | 0.38 | 110 | 920 | 2510 | / | 58 | 3 |
| YWF6E400 | 220 | 50 | 0.57 | 110 | 920 | 2510 | 4 | 58 | 3 |
| 120 | 60 | 1.15 | 135 | 980 | 2750 | 12 | 59 | 4 |
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.
We professionally manufacture various fans and motors,which widely used in ventilation,air condition,
cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying
on professionally R &D team,high efficiency production lines and scientific management ."Low noise,high
airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values
of noise, volume, temperature rising balance,lifetime are better than other factories.
Over the years,we have been insisting on the principle "being the leader enterprise ,being the best quality,
being the greast contribution",which establish the famous brand of "Fengda".We have gotten CE certificates
and ISO9001Quality Management System Certification.And our products are exporting to Europe and America,
Middle East,Russia etc.
Packed in seaworthy cartons, we also could packing according to customers' requests
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
1.Water cooler
2.Air cooler
3.Heater
4.Heat Pump
5.Evaporator
6.Dehumidifier
