200-900 mm UL Approved Forced Cooling Fan for Motor
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Electric Current Type | AC | Mounting | Other, axial fan | |
| Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
| Brand Name | FENGDA | Model Number | YWF | |
| Voltage | 220V or 380V | Power | 160w | |
| Air Volume | 2130 m3/h | Speed | 2300 RPM | |

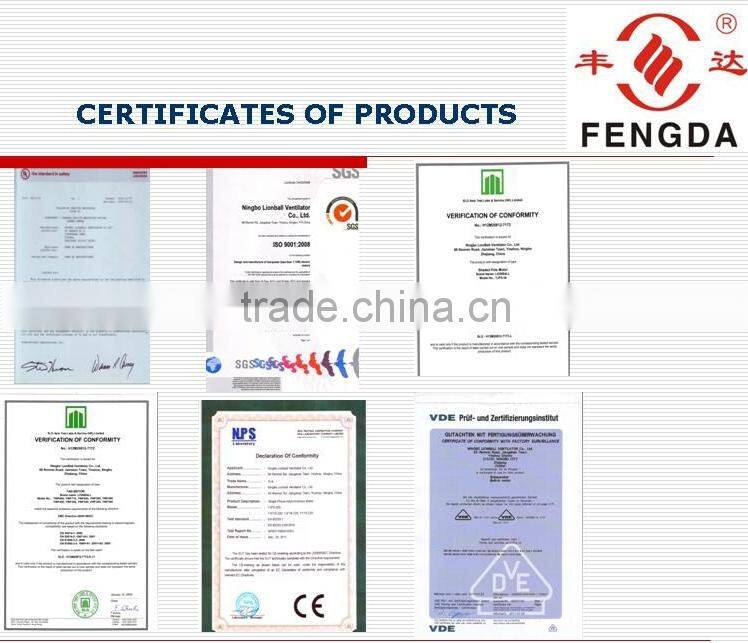

| Certification | CCC, CE, CSA, GS, ROHS, UL, CE, UL, ROHS | After-sales Service Provided | Overseas third-party support available |
Product Description

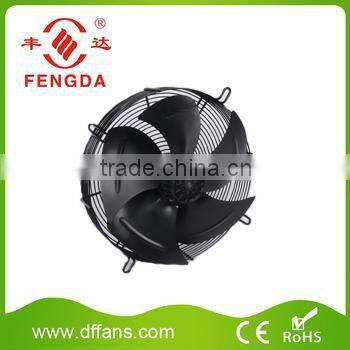

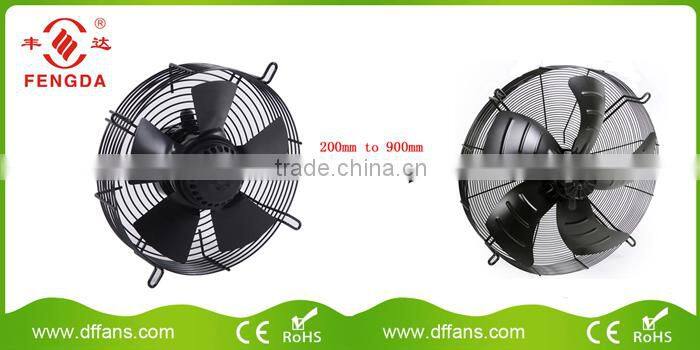

200-900 mm UL approved forced cooling fan for motor
1.Fan diameter : 200mm to 900mm.
2.The using life is over 30000 hours.
3.The using ambient temperature is from -30°c to 60°c
4.The motors are 100% pure copper
5.Airflow Direction: Suction or Blowing.
6. Speed: We have Two-speed Switch, Three-speed Switch and Stepless Speed Switch.
| Model | Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Air Flow (m3/h) | Capacitor (uF) | Noise (dB) |
| YWF4E200 | 220 | 50 | 0.2 | 40 | 1450 | 540 | 1.5 | 45 |
| YWF4E250 | 220 | 50 | 0.25 | 56 | 1400 | 770 | 2 | 52 |
| YWF4D250 | 380 | 50 | 0.19 | 60 | 1400 | 770 | / | 52 |
| YWF4E300 | 220 | 50 | 0.4 | 90 | 1400 | 1600 | 3 | 58 |
| YWF4D300 | 380 | 50 | 0.28 | 90 | 1400 | 1600 | / | 58 |
| YWF4E350 | 220 | 50 | 0.73 | 145 | 1380 | 2500 | 4 | 62 |
| YWF4D350 | 380 | 50 | 0.4 | 145 | 1380 | 2500 | / | 62 |
| YWF4E400 | 220 | 50 | 0.85 | 190 | 1380 | 3500 | 6 | 68 |
| YWF4D400 | 380 | 50 | 0.52 | 190 | 1380 | 3500 | / | 68 |
| YWF4E450 | 220 | 50 | 1.2 | 250 | 1350 | 4850 | 8 | 68 |
| YWF4D450 | 380 | 50 | 0.62 | 250 | 1350 | 4850 | / | 68 |
| YWF4E500 | 220 | 50 | 1.6 | 350 | 1350 | 6570 | 10 | 72 |
| YWF4D500 | 380 | 50 | 0.52 | 390 | 1350 | 6570 | / | 72 |
| YWF4E550 | 220 | 50 | 2.4 | 500 | 1300 | 8700 | 12 | 75 |
| YWF4D550 | 380 | 50 | 1.25 | 500 | 1300 | 8700 | / | 75 |
| YWF4E600 | 220 | 50 | 3.3 | 710 | 1350 | 10850 | 16 | 78 |
| YWF4D600 | 380 | 50 | 1.61 | 750 | 1350 | 10850 | / | 78 |
| YWF4E630 | 220 | 50 | 3.55 | 750 | 1310 | 11000 | 16 | 78 |
| YWF4D630 | 380 | 50 | 1.6 | 750 | 1310 | 12000 | / | 78 |
| YWF6D710 | 380 | 50 | 1.25 | 670 | 650 | 12800 | / | 80 |
| YWF6D800 | 380 | 50 | 2.4 | 1100 | 900 | 21500 | / | 83 |
| YWF6D900 | 380 | 50 | 3.2 | 1600 | 900 | 27300 | / | 85 |
Packing Details: one piece in single carton
Delivery Details: 30-45 days/4HQ
1. Warranty: 1 year warranty for all products.
2. Products Quality: 100% products inspection before delivery.
3. Just in time delivery: Normally, lead time is 30 days.
4. Customized Service: As we have our own molding department, customized service can be provided.
5. Prompt customers’ services: E-mail will be replied in 24 hours.
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally
R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.

CRH 2015 in Shanghai
RHVAC 2015 in Bangkok

1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.

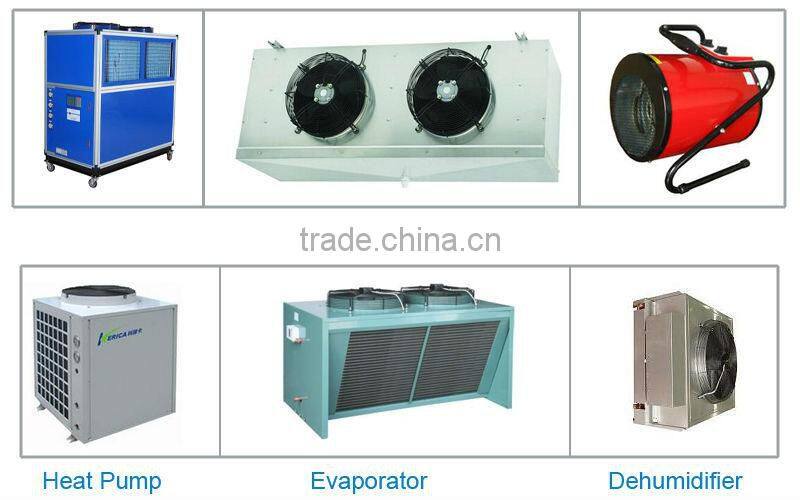

1. Water Cooler
