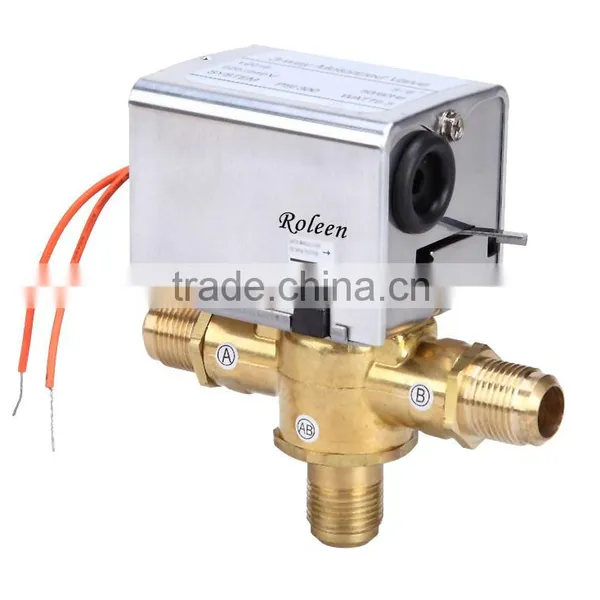

RL 8058 3 Way Valve 2-wire On/off Motorized Valve
US$ 13 - 20
MOQ: 50 Units
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RL 8068 Series Two-way / Three-way 2-wire On/off Motorized 3 Way ValveUS$ 10 - 15MOQ: 50 Units -
RL303 Series LCD FCU Digital Cooling ThermostatUS$ 10 - 18MOQ: 100 Units
-
RL306 Series Touch Screen LCD Cooling ThermostatUS$ 10 - 18MOQ: 100 Units
-
RL301 Touch Screen LCD FCU Digital Room Cooling ThermostatUS$ 15 - 30MOQ: 100 Units
-
RL305 Series Wall-mount Digital Fan Coil ThermostatsNegotiableMOQ: 100 Units
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Other, AC hysteresis Synchronous
Material
Brass
Temperature of Media
Normal Temperature
Media
Water
Port Size
5/8
Place of Origin
Fujian, China
Model Number
RL 8058
Brand Name
Roleen
Specifications
Actuator could be installed after the valve body is fixed.RL 8058 3 way Two-way/Three-way 2-wire On/off Motorized Valve
RL 8058 Series Two-way/Three-way Motorized Valves are widely used in heating and air-conditioning system. Actuator could be installed after the valve body is fixed.
Part No &Specification
| Power Consumption: | <7 W |
| Motor: | AC hysteresis SynchronousMotor |
| Actuator: | Stainless Steel Plate, Aluminum Cover. |
| Valve Body: | Forging Brass |
| Stem: | Brass |
| Paddle: | Nitrile-butadiene rubber (NBR) |
| Spring Return | Yes |
Model# |
Screw & Size |
Config. |
KV |
Pressure Mpa |
Medium |
Media Temp. |
Ambient Temp. |
Power Supply |
RL8058-2 |
5/8 |
2-way, Normally Close |
2.0 |
2.0 |
Cool Water or Hot Water |
2~94℃ |
0~65℃ |
24/110/220 Vac, + 10%, 50/60Hz |
RL8068-3 |
5/8 |
3-way, Diverting |
2.0 |
2.0 |
