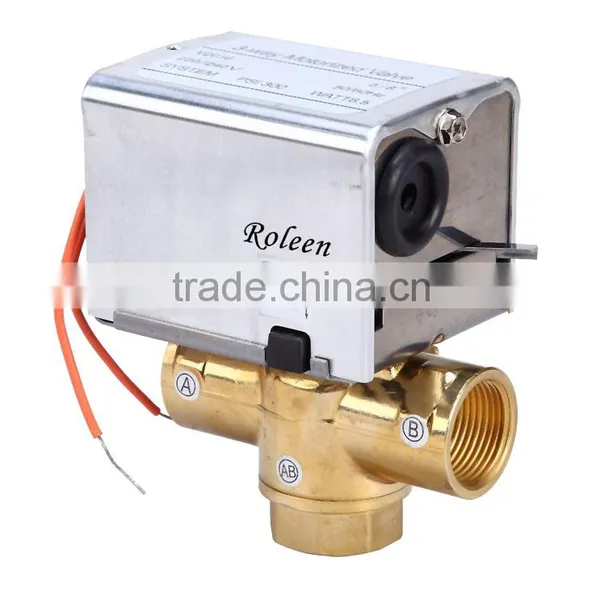

RL 8068 Series Two-way / Three-way 2-wire On/off Motorized 3 Way Valve
US$ 10 - 15
MOQ: 50 Units
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RL303 Series LCD FCU Digital Cooling ThermostatUS$ 10 - 18MOQ: 100 Units -
RL306 Series Touch Screen LCD Cooling ThermostatUS$ 10 - 18MOQ: 100 Units
-
RL301 Touch Screen LCD FCU Digital Room Cooling ThermostatUS$ 15 - 30MOQ: 100 Units
-
RL305 Series Wall-mount Digital Fan Coil ThermostatsNegotiableMOQ: 100 Units
-
RL303 Series LCD FCU Digital ThermostatUS$ 10 - 18MOQ: 100 Units
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Other, AC hysteresis Synchronous
Material
Brass
Temperature of Media
Normal Temperature
Media
Water
Port Size
DN 15 DN 20 DN 25
Model Number
RL 8068
Brand Name
Roleen
Specifications
Actuator could be installed after the valve body is fixed.RL 8068 Series Two-way / Three-way 2-wire On/off Motorized Valve
RL 8068 Series Two-way/Three-way Motorized Valves are widely used in heating and air-conditioning system. Actuator could be installed after the valve body is fixed.
Part No &Specification
| Power Consumption: | <7 W |
| Motor: | AC hysteresis SynchronousMotor |
| Actuator: | Stainless Steel Plate, Aluminum Cover. |
| Valve Body: | Forging Brass |
| Stem: | Brass |
| Paddle: | Nitrile-butadiene rubber (NBR) |
| Spring Return | Yes |
Model# |
Screw & Size |
Config. |
KV |
Pressure Mpa |
Medium |
Media Temp. |
Ambient Temp. |
Power Supply |
RL8068-215 |
G1/2(15mm) |
2-way, Normally Close |
2.0 |
2.0 |
Cool Water or Hot Water |
2~94℃ |
0~65℃ |
24/110/220 Vac, + 10%, 50/60Hz |
RL8068-220 |
G3/4(20mm) |
2-way, Normally Close |
2.6 |
2.0 |
||||
RL8068-225 |
G1 (25mm) |
2-way, Normally Close |
2.8 |
2.0 |
||||
RL8068-315 |
G1/2(15mm) |
3-way, Diverting |
2.0 |
2.0 |
||||
RL8068-320 |
G3/4(20mm) |
3-way, Diverting |
2.6 |
2.0 |
||||
RL8068-325 |
G1 (25mm) |
3-way, Diverting |
2.8 |
2.0 |
