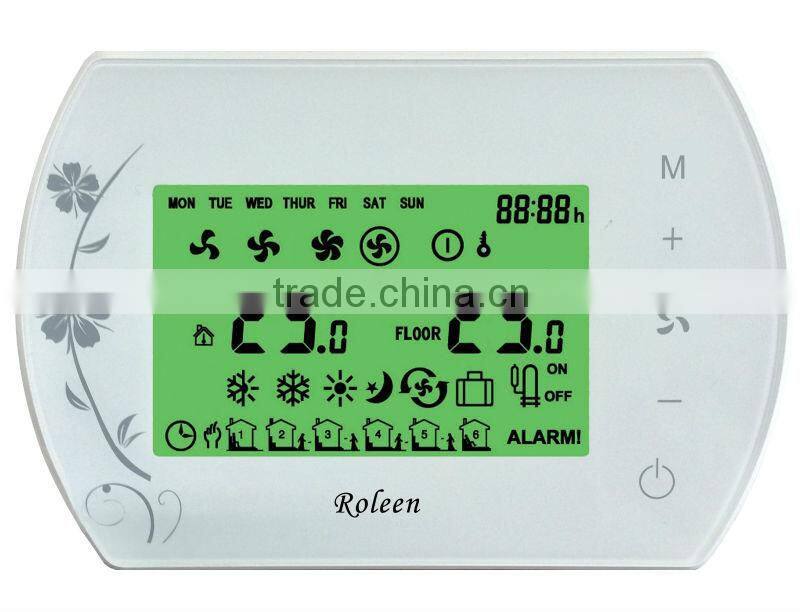

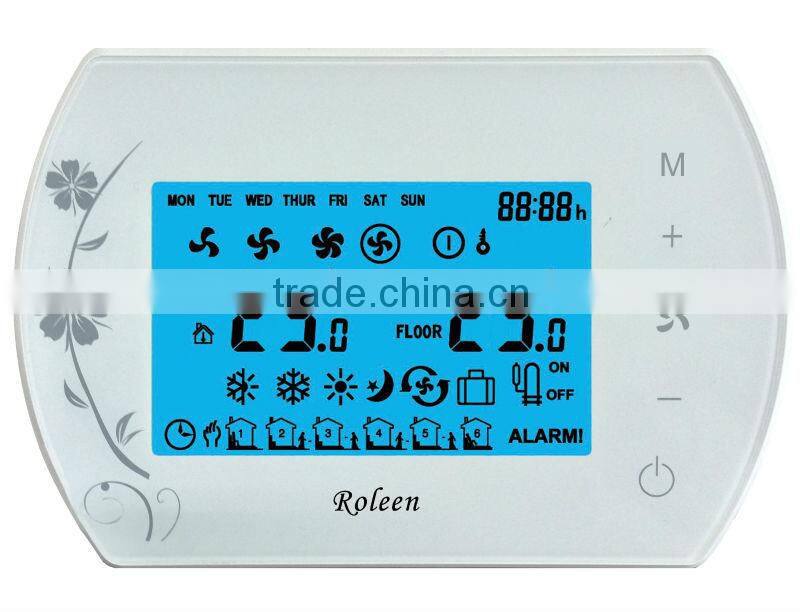

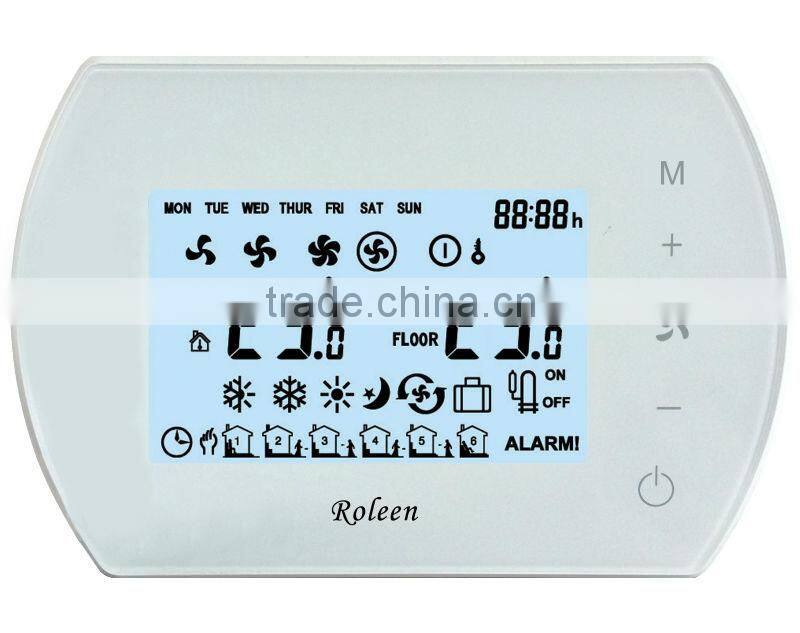

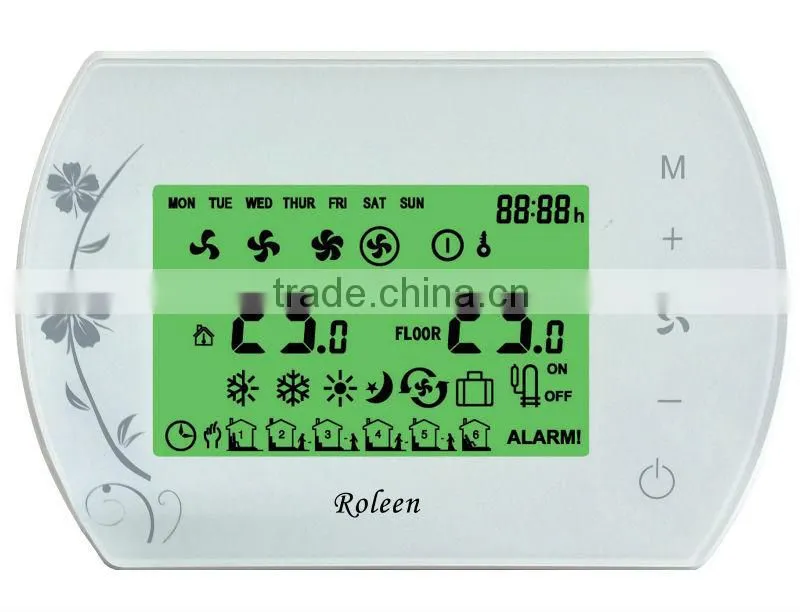

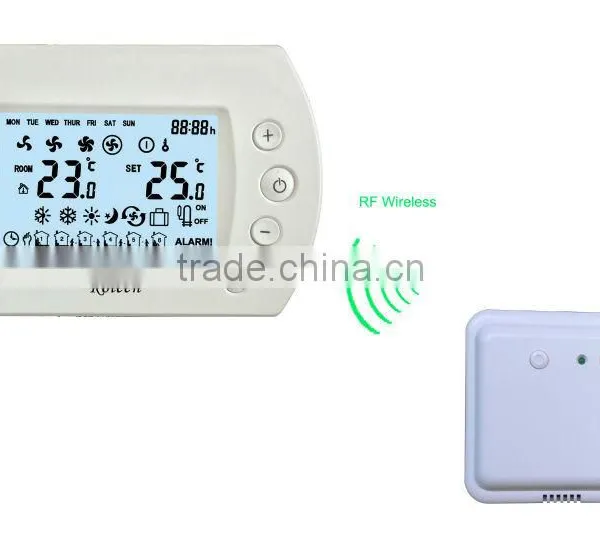

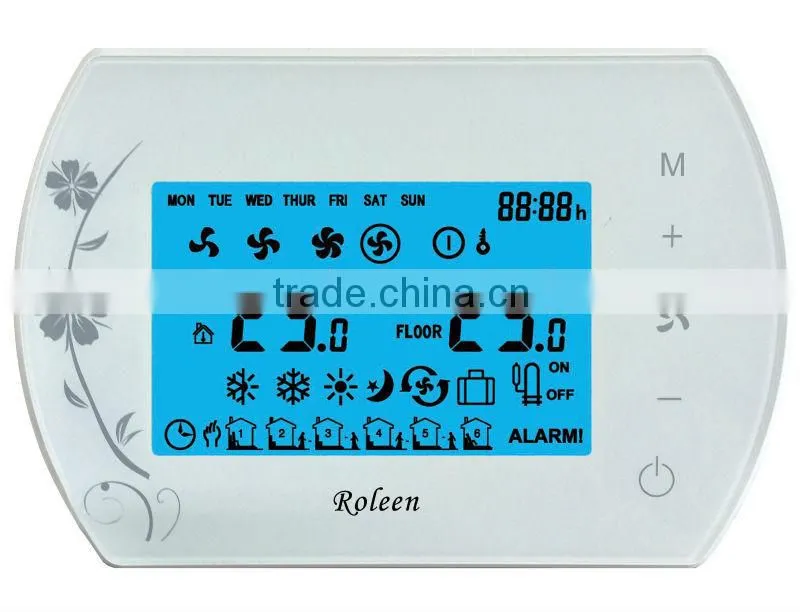

R309Set Big LCD Touch ScreenRF Wireless Programmable FCU Room Temperature Controller
RL309SET is used to control the room temperature in Heating or Cooling systems. The Typical applications include: Homes, Residential Buildings, School, Office.
A programmer allows you to set ‘On’ and ‘Off’ time periods ( 5 Weekdays, Saturday and Sunday, 6 Time Zone) to suit your own lifestyle.The pre-set floor temperature is to protect heating equipments from over-heat damage, to keep the whole heating system safety, reliable and energy-saving.
Feature
Attractive design ,Shiny Button, easyinstallation and operation
Different painting colors housing isavailable (Optional, there is MOQ)
LCD display with 3 optional backlightcolors
Selectable Heating/Cooling/VentilatingMode
High/Medium/Low/Auto Fan Speed, or SingleFan Speed,
Single stage or Multi stage with On/off,Floating, P&I Modulating and Network controls
Compatible between 2-wire and 3-wiremotorized valve in single stage system
EEPROM capacity
Infrared Remote Control Function(Optional)
RS-485 or Modbus protocol (Optional)
Key-card contact (Optional)
Specification
| Back Light | White ( Defaulted), Green or Blue color |
| Temp. Display | Celsius (Defaulted), or Fahrenheit |
| Working Mode | On/off, Floating,Modulating or Multi-functions |
| Sensor | Internal or external |
| Usage | FCU System, or AHU System, etc. |
| Programmability | Non-programmable &Programmable (5+1+1 days, 5+2 days) |
| Network | RS-485, or M-Bus |
| Mounting box | Chinese standard/European standard |
| Power Supply | Thermostat:3VDC(2x AA1.5 V)/ Cooling/Heating Device:AC100V~AC240V, 50/60 Hz |
||
| Consumption | 5A | Room Temp Range | 0℃~99.5℃ |
| Set Temp Range | 5℃~40℃ | WorkAmbient | -10-60℃ |
| RelativeHumidity | 95%RH | Accuracy | ± 1℃ |
| Control Accuracy | ±0.5℃ | Housing | ABS+PC fire-resistant |
