RL305Set Big LCD RF Wireless Programmable FCU Thermostat

FOB Price

Negotiable / Unit

100 Units(Min.Order)

Supply Ability 10000 Unit / Units per Month
Port Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	Roleen
Model Number	RL305SET		Type	HVAC Systems

Product Description

Specifications

RL305SET is used to control the room temperature in Heating or Cooling systems. The Typical applications include: Homes, Residen

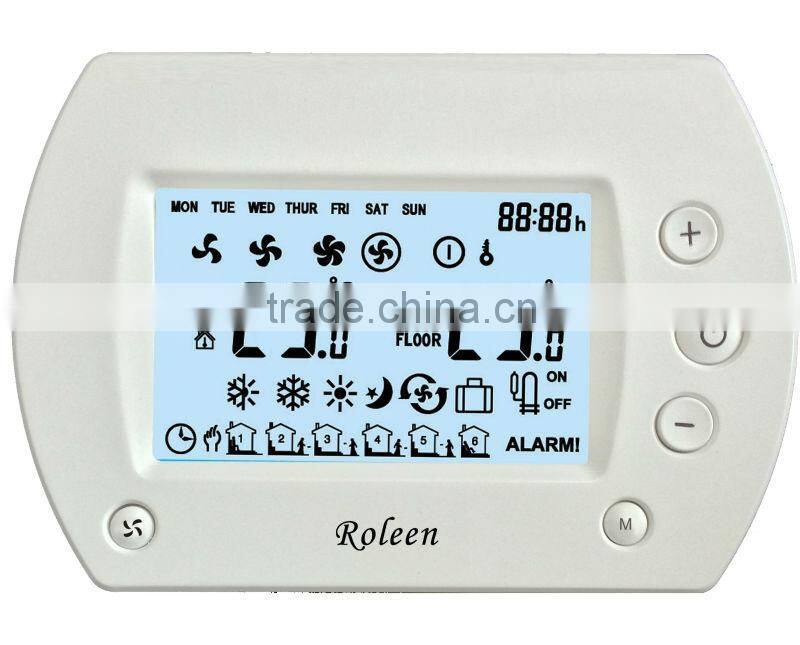

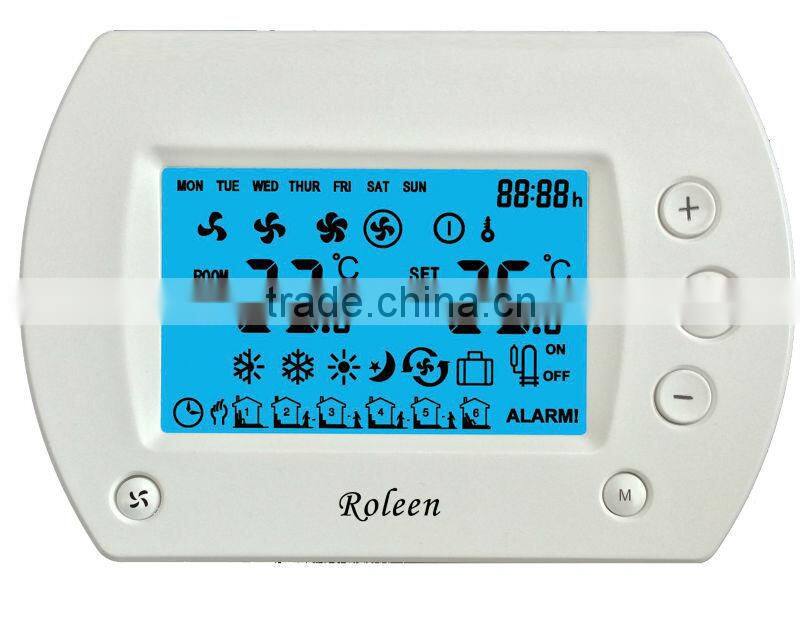

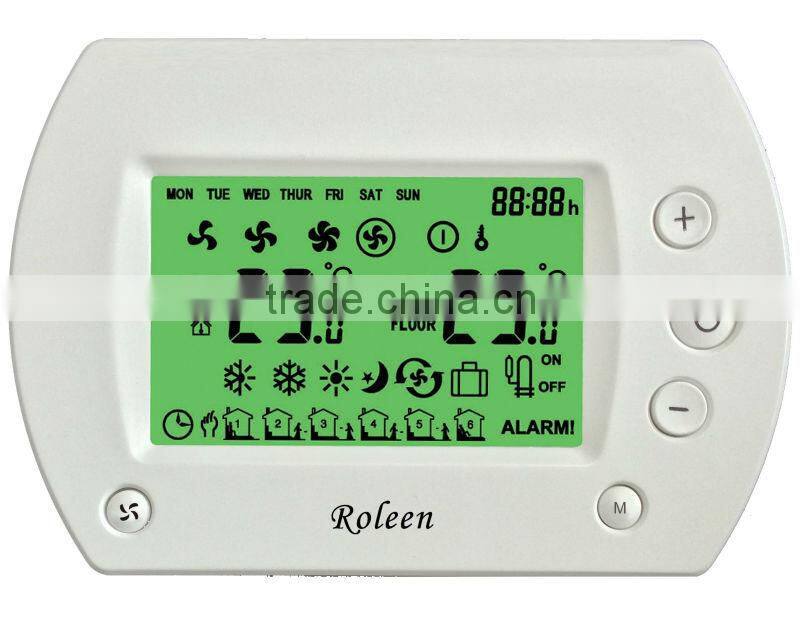

R305Set Big LCD RF WirelessProgrammable FCU Thermostat

RL305SET is used to control the room temperature in Heating or Cooling systems. The Typical applications include: Homes, Residential Buildings, School, Office.

A programmer allows you to set ‘On’ and ‘Off’ time periods ( 5 Weekdays, Saturday and Sunday, 6 Time Zone) to suit your own lifestyle.The pre-set floor temperature is to protect heating equipments from over-heat damage, to keep the whole heating system safety, reliable and energy-saving.

Feature

Attractive design ,Shiny Button, easyinstallation and operation

Different painting colors housing isavailable (Optional, there is MOQ)

LCD display with 3 optional backlightcolors

Selectable Heating/Cooling/VentilatingMode

High/Medium/Low/Auto Fan Speed, or SingleFan Speed,

Single stage or Multi stage with On/off,Floating, P&I Modulating and Network controls

Compatible between 2-wire and 3-wiremotorized valve in single stage system

EEPROM capacity

Infrared Remote Control Function(Optional)

RS-485 or Modbus protocol (Optional)

Key-card contact (Optional)

Specification

Back Light	White ( Defaulted), Green or Blue color
Temp. Display	Celsius (Defaulted), or Fahrenheit
Working Mode	On/off, Floating,Modulating or Multi-functions
Sensor	Internal or external
Usage	FCU System, or AHU System, etc.
Programmability	Non-programmable &Programmable (5+1+1 days, 5+2 days)
Network	RS-485, or M-Bus
Mounting box	Chinese standard/European standard

Power Supply	Thermostat:3VDC(2x AA1.5 V)/ Cooling/Heating Device:AC100V~AC240V, 50/60 Hz
Consumption	5A	Room Temp Range	0℃~99.5℃
Set Temp Range	5℃~40℃	WorkAmbient	-10-60℃
RelativeHumidity	95%RH	Accuracy	± 1℃
Control Accuracy	±0.5℃	Housing	ABS+PC fire-resistant
