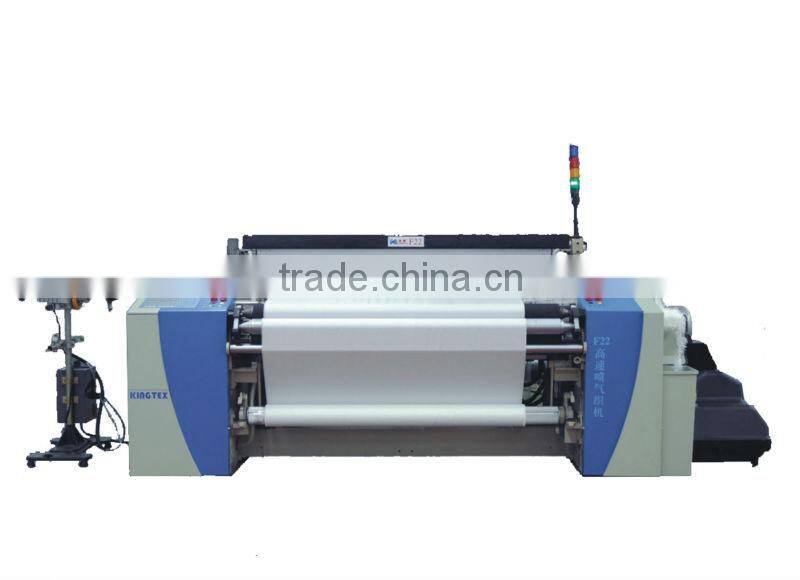

JAB-710 Air Jet Loom Price in China Cotton Machinery Factory

JAB-710 air jet loom cotton machinery with high quality and low price for sale

1.Hard frame and new structure

The strong frame was adopted robust wallboard and solid beam,Furthermore,we increase middle support to ensure that our loom could work in high speed,low voice,and the reed become wider.

2.Optimized design of beating structure

Use the four linkage beating structure which is optimized designed by the computer,the beating vibration is short,stoke is small,correspoding the weft time is long,the narrow is range of machines adopt 4 linkage beating which has been obtained the excellent evaluation in the of high-speed adaptive inspect.while,the wide range of machines adopt 6 linkage beating in weft's time which is much more enough,thus to realize the stable beating when run with high speed.

3.Rocking shaft intermediate supporting device.

Rocking shaft adopts solid shaft which is with supporting device in middle.it increases the rigidity of beating structure,the accurate and powerful beating in high speed is the guarantee for weaving the high-density fabrics.

4.Lubrication

The main drive shaft to take oil bath lubrication,the general part utilized centralized system to enforce lubrication,the aim is to improve the working lift of components.

5.electronic let-off

To detect the total inspection of warp yarns through tension sensor,the CPU handles the change of warp yarns tension caused by shedding or relax warp,let-off,take-up's change of warp beam,and instructs the servo motor to drive,warp beam,thus,this can keep the balanced tension in working procedure and eliminate the secret-mark,ensure the fabric equilibrium and formation.the machine adopts rigidity frame,warp beam gear with large diameter and positive relax warp driving shaft which is built-in oil bath,which makes the weaving machine furture to realize high speed and can be more sensitive to adapt the weaving requirements for high-density fabrics.

6.Take-up device

We adopt two forms of take-up:machanical continuous take-up and electronic take-up,it is very effective to prevent the stop-mark to combine with electronic take-up.it is very effective to prevent the stop-mark to combine with electronic let0off by accurate forwarder and reverse.

7.filling insertion

Filling insertion used the way of main nozzle+auxiliary nozzle+different reeds,issued by CPU frequency electromagnetic valve to realize the control of injection timing.

8.Double probe feeler

Double probe feeler,it is not only to discovery short or bending weft,but also to find the weft which was blowed,thus to ensure foolproof.

9.Energy saving

The support block is near from auxiliary nozzle,it has a short distance to supply air,better adapted to the high speed operation and lower energy consumption.
