scissor lift elevator

FOB Price

USD $1,500 - $25,000 / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Konty
Model Number	SJG	Lift Mechanism	Scissor Lift
Lift Drive / Actuation	Hydraulic	Power	3kw
Rated Loading Capacity	300--1000kgs	Min. Lifting Height	850mm
Max. Lifting Height	10000mm	Table Size	1900*1500mm
Overall Dimensions	19001500850mm	Weight	1500kgs
Certification	ISO	Warranty	1 year
After-sales Service Provided	Overseas third-party support available

Product Description

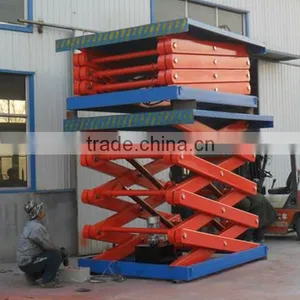

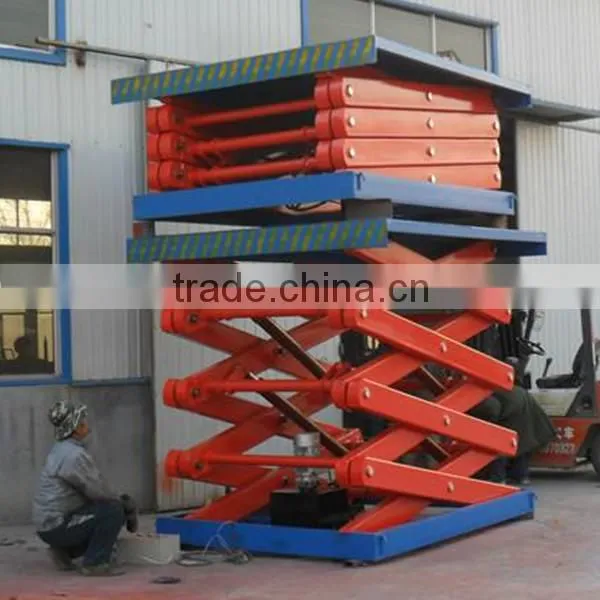

scissor lift elevator

stationary scissor lift tables used high-strength steel frame structure and can load from 0.1T to 10T.and the size and equipment size can be customized according to user needs.
Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
Our scissor lift tables offer a simple pushbutton operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains, portal rails, etc

Name	Type	Mix height (MM)	rises height (MM)	Raise weight (Kg)	Platform size (mm)	Power (KW)	Weight (KG)
stationary scissor lifts	SJG4.5-3.5	760	3500	4500	4000*2000	5.5	4500
	SJG2-4.8	700	4800	2000	3600*2000	5.5	3800
	SJG5-5.4	950	5400	5000	5000*1600	7.5	6000
	SJG3-7.2	860	7200	3000	5500*3000	11	8870
	SJG0.5-5	850	5000	500	2000*1000	2.2	1200
	SJG1-3.3	840	3300	1000	1900*1500	3	1300
	SJG1-4.3	860	4300	1000	2500*2500	1.5	2500
	SJG1-6	1230	6000	1000	2200*1500	2.2	2500
	SJG2-3.5	1000	3500	2000	2200*1500	2.2	1800
	SJG2-4.5	1070	4500	2000	1600*1600	4	2500
	SJG2-6.8	1400	6800	2000	2550*2200	4	3300
	SJG3-4.5	1060	4500	3000	2200*1800	4	2200
