fixed hydraulic scissor lift platform for goods
- Qingdao
- T/T Credit Card PayPal
You May Like
-
electric stationary lift hydraulic stationary scissor elevator platform
-
warehouse cargo stationary small hydraulic scissor lift
-
stationary hydraulic scissor cargo lift
-
Stationary hydraulic electric 5 ton fixed platform scissor car lift
-
hydraulic scissor lift platform for warehouse
-
stationary hydraulic scissor goods lift
Product Details
| Place of Origin | Shandong, China | Brand Name | Konty | |
| Model Number | SJG | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 3kw | |
| Rated Loading Capacity | 300--1000kgs | Min. Lifting Height | 850mm | |
| Max. Lifting Height | 10000mm | Table Size | 1900*1500mm | |
| Overall Dimensions | 1900*1500*850mm | Weight | 1500kgs | |
| Certification | ISO | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

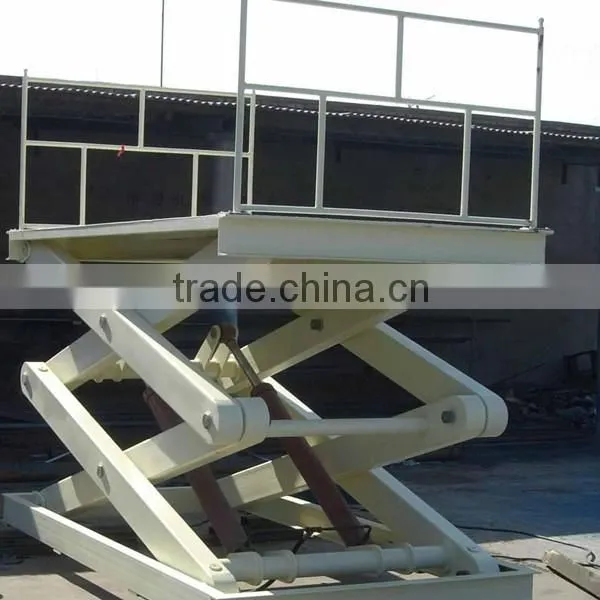

fixed hydraulic scissor lift platform for goods
stationary scissor lift tables used high-strength steel frame structure and can load from 0.1T to 10T.and the size and equipment size can be customized according to user needs.
Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
Our scissor lift tables offer a simple pushbutton operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains, portal rails, etc
Name |
Type | Mix height (MM) | rises height (MM) | Raise weight (Kg) | Platform size (mm) | Power (KW) | Weight (KG) |
stationary scissor lifts | SJG4.5-3.5 | 760 | 3500 | 4500 | 4000*2000 | 5.5 | 4500 |
SJG2-4.8 | 700 | 4800 | 2000 | 3600*2000 | 5.5 | 3800 | |
SJG5-5.4 | 950 | 5400 | 5000 | 5000*1600 | 7.5 | 6000 | |
SJG3-7.2 | 860 | 7200 | 3000 | 5500*3000 | 11 | 8870 | |
SJG0.5-5 | 850 | 5000 | 500 | 2000*1000 | 2.2 | 1200 | |
SJG1-3.3 | 840 | 3300 | 1000 | 1900*1500 | 3 | 1300 | |
SJG1-4.3 | 860 | 4300 | 1000 | 2500*2500 | 1.5 | 2500 | |
SJG1-6 | 1230 | 6000 | 1000 | 2200*1500 | 2.2 | 2500 | |
SJG2-3.5 | 1000 | 3500 | 2000 | 2200*1500 | 2.2 | 1800 | |
SJG2-4.5 | 1070 | 4500 | 2000 | 1600*1600 | 4 | 2500 | |
SJG2-6.8 | 1400 | 6800 | 2000 | 2550*2200 | 4 | 3300 | |
SJG3-4.5 | 1060 | 4500 | 3000 | 2200*1800 | 4 | 2200 |
