small hydraulic scissor lifts for cargo
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Konty | |
Model Number | SJG | Lift Mechanism | Scissor Lift | |
Lift Drive / Actuation | Hydraulic | Power | 3kw | |
Rated Loading Capacity | 300--1000kgs | Min. Lifting Height | 850mm | |
Max. Lifting Height | 10000mm | Table Size | 1900*1500mm | |
Overall Dimensions | 1900*1500*850mm | Weight | 1500kgs | |
Certification | ISO | Warranty | 1 year | |
After-sales Service Provided | Overseas third-party support available |
Product Description

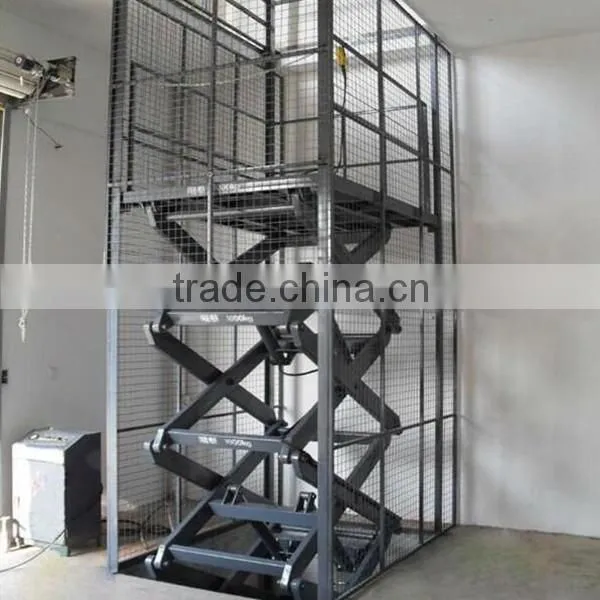

small hydraulic scissor lifts for cargo
stationary scissor lift tables used high-strength steel frame structure and can load from 0.1T to 10T.and the size and equipment size can be customized according to user needs.
Scissor lift tables provide a level grade for loading and unloading any vehicle, irrespective of their bed heights. Also safe ground level access is provided with minimal loss of time and more efficient use of space. Concrete ramps take up valuable space, and can be come slippery and unsafe when wet.
Our scissor lift tables offer a simple pushbutton operation to provide full control over all functions for easy and safe operation. The heavy- duty hydraulic lift cylinders enable a safe and efficient service of all vehicle bed heights. The high tensile structural scissor arms and rigid platform construction provide unit integrity and allow high capacities. Safety features include all-sided safety edges, deadman pushbutton control, safety support legs, safety roller curtains, portal rails, etc
Name |
Type | Mix height (MM) | rises height (MM) | Raise weight (Kg) | Platform size (mm) | Power (KW) | Weight (KG) |
stationary scissor lifts | SJG4.5-3.5 | 760 | 3500 | 4500 | 4000*2000 | 5.5 | 4500 |
SJG2-4.8 | 700 | 4800 | 2000 | 3600*2000 | 5.5 | 3800 | |
SJG5-5.4 | 950 | 5400 | 5000 | 5000*1600 | 7.5 | 6000 | |
SJG3-7.2 | 860 | 7200 | 3000 | 5500*3000 | 11 | 8870 | |
SJG0.5-5 | 850 | 5000 | 500 | 2000*1000 | 2.2 | 1200 | |
SJG1-3.3 | 840 | 3300 | 1000 | 1900*1500 | 3 | 1300 | |
SJG1-4.3 | 860 | 4300 | 1000 | 2500*2500 | 1.5 | 2500 | |
SJG1-6 | 1230 | 6000 | 1000 | 2200*1500 | 2.2 | 2500 | |
SJG2-3.5 | 1000 | 3500 | 2000 | 2200*1500 | 2.2 | 1800 | |
SJG2-4.5 | 1070 | 4500 | 2000 | 1600*1600 | 4 | 2500 | |
SJG2-6.8 | 1400 | 6800 | 2000 | 2550*2200 | 4 | 3300 | |
SJG3-4.5 | 1060 | 4500 | 3000 | 2200*1800 | 4 | 2200 |
Before quote you the exact prices,please advise the detailed specifications you need:
Lift height(M):
Lift capacity(KGS):
Platform dimension(M):
