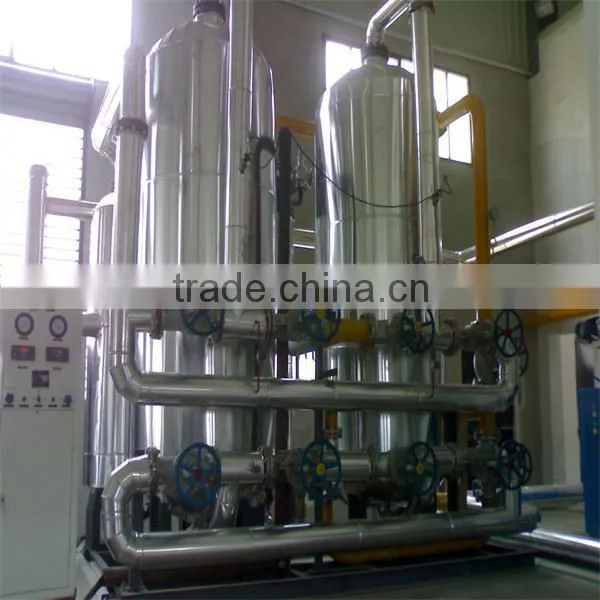

Liquid Air Separation Plant

Liquid Air Separation Plant thumbnail-1
Liquid Air Separation Plant photo-1
US$ 400,000 - 600,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
DYON
Model Number:
KDN-300Y
Contact Supplier Request Quote Chat Now
Handan Dyon Air Separation Plant Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name DYON
Model Number KDN-300Y
Condition New
After-sales Service Provided Engineers available to service machinery overseas





1.1 Basic Design Conditions

1.1.1  Atmosphere Conditions:

          Atmospheric pressure                    760mmHg

       Atmospheric temperature              32℃

Relative humidity             75%

1.1.2    Air conditions:

    O2component of Atmospheric:             20.95 %

CO2 of Atmospheric:             ≤350 ppm

CnHm of Atmospheric:             ≤3 ppm

SO2 and H2S:             ≤5 ppm

1.1.3  Circulating Cooling Water

           Feed water temperature             33℃

            Feed water pressure                  0.35Mpa

            Wind pressure                             HN/m2

            Temperature :( inlet)                   33℃

           Temperature :( outlet)                 40℃

               Pressure :( inlet)                     0.35Mpa

              Pressure :( outlet)

                    PH

                    Hardness:                         15

             Suspended matter:                 <50mg/L

                    Dirt ratio:                            0.0004M2h℃/Kcal

1.1.4    Power supply:

                     Voltage:                           380V/220V

               Frequency:                    50HZ

              Total Power:                  445KW

1.2    Main Performance Data

                 Liquid Nitrogen output:       300Nm3/h

                         Liquid Nitrogen Purity:       99.999%

Working pressure:            ≤8.5Mpa

Starting time:            ~6h

Total power:             445KW

                                    Power supply:           380V/220V/50Hz

Liquid nitrogen pressure out of cold box:  ≤0.4MPa(G)

Total water consumption:     50T/h

       Starting time:                  ≤6 h

       Heating time:                  ≤12h

     Running period(The period between two big heating):≥2 years
