100Nm3/h oxygen production plant

FOB Price

USD $80,000 - $180,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	DYON
Model Number	KZO-100	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Ⅰ Description of main parameters and characteristics

Oxygen output 100Nm³/h

Oxygen Purity 99.6%

Working pressure ≤1.2Mpa

Starting time ~8h

Total power 174KW

Power supply As required

1.skid-mounted construction

2.high-quality medical oxygen, purity range in 99.6-99.9%

3.area 75M²(15m×5m).

4.Very short starting time

ⅡSkid mounted oxygen plant models:

Non-base Skid-Mounted Air Separation Plant Parameter List
Model	Name	KZO-40	KZON-40/40	KZO-50	KZON-50/50	KZON-80
	Oxygen	40	40	50	50	80
	Nitrogen	-	40	-	50	-
Oxygen output	Nm3/h	40	40	50	50	80
Oxygen Purity	% O2	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6
Oxygen Pressure	bar.A	150	150	150	150	150
Nitrogen Output	Nm3/h	-	40	-	50	-
Nitrogen Purity	PPmO2	-	≤10	-	≤10	-
Nitrogen Pressure	bar.A	-	150	-	150	-
Consumption	Kwh/Nm3	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
Fractionating Column Size	mm	1500×1500 ×6000	1500×1500 ×7000	1500×1500 ×6000	1500×1500 ×7500	2000×2200 ×7000
Plant Dimension	m2	150	150	150	150	150

Non-base Skid-Mounted Air Separation Plant Parameter List
Model	Name	KZON-80/80	KZO-100	KZON-100/100	KZO-160	KZO-180
	Oxygen	80	100	100	160	180
	Nitrogen	80	-	100	-	-
Oxygen output	Nm3/h	80	100	100	160	180
Oxygen Purity	% O2	99.60%	99.60%	99.60%	99.60%	99.60%
Nitrogen Output	Nm3/h	80	-	100	-	-
Nitrogen Purity	PPmO2	≤10PPmO2	-	≤10PPmO2	-	-
Consumption	Kwh/Nm3	1.5	1.5	1.5	1.5	1.5
Fractionating Column Size	mm	2200×2000 ×8000	2200×2000 ×7000	2200×2000 ×8000	2200×2200 ×9000	2200×2200 ×10000
Plant Dimension	m2	210	210	210	250	250

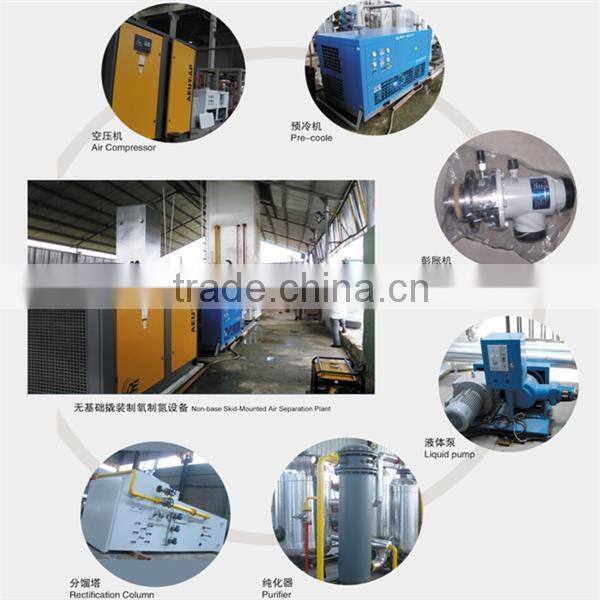

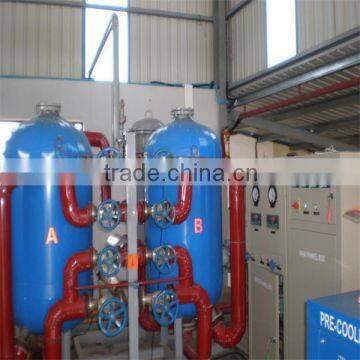

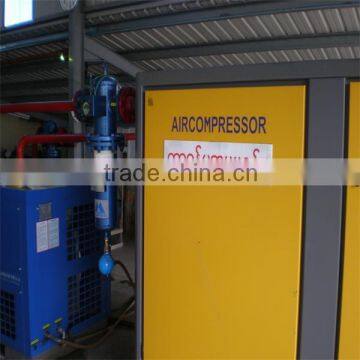

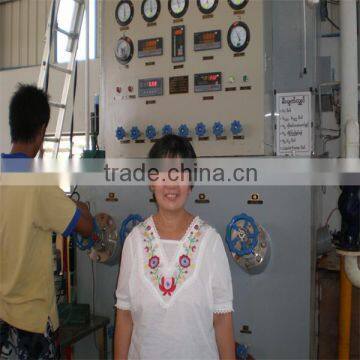

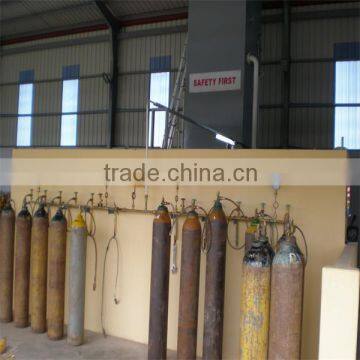

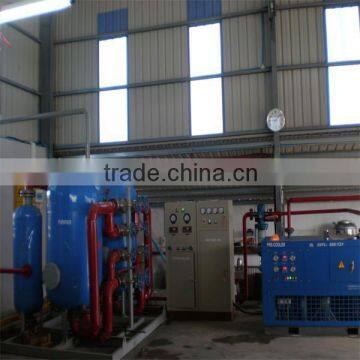

Ⅲ Unit photos:
