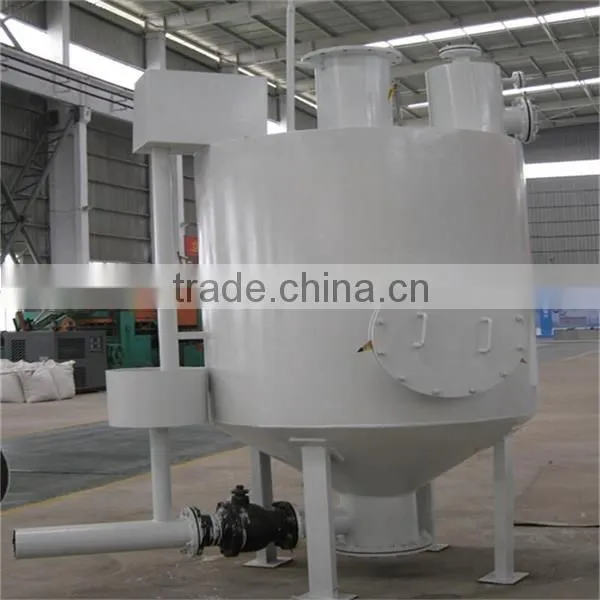

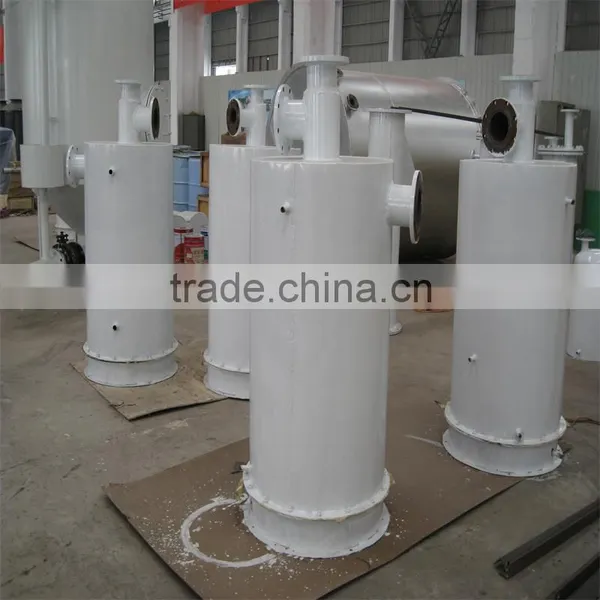

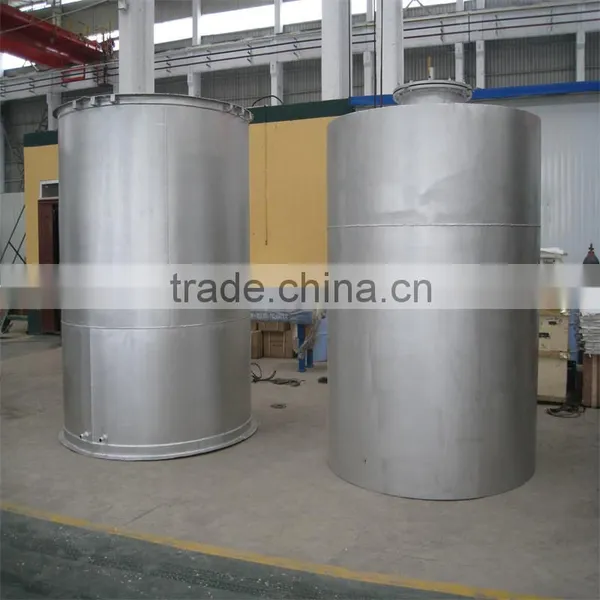

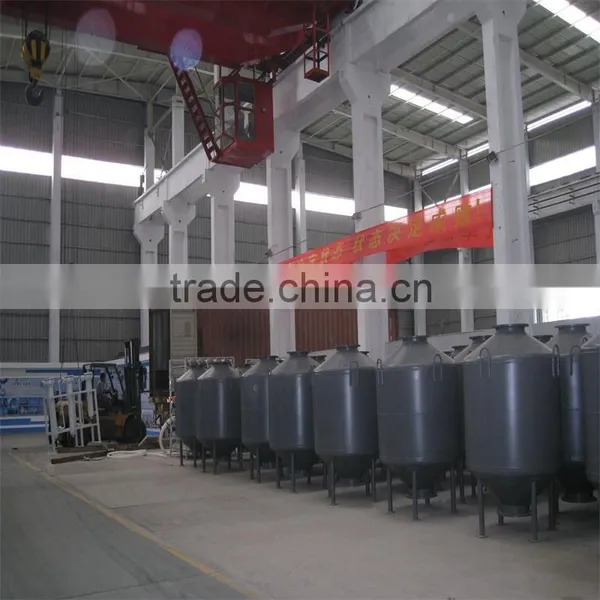

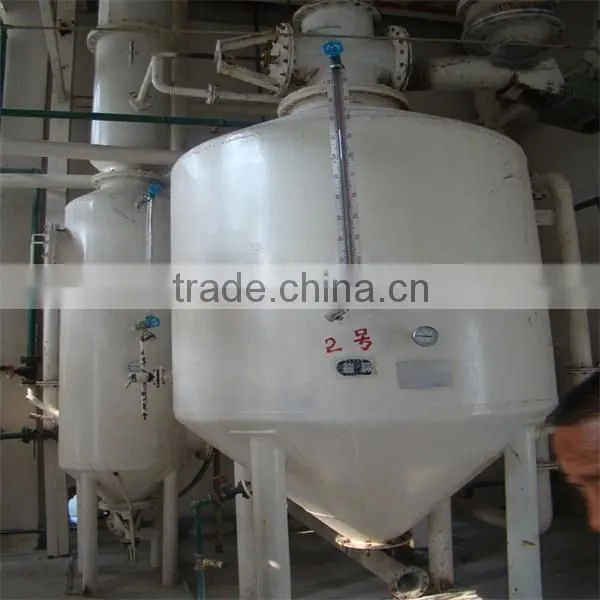

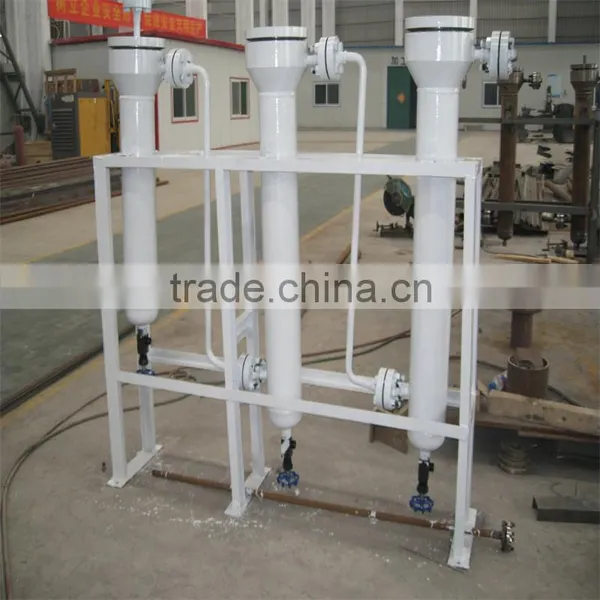

small Acetylene plant

 1. Acetylene plant parameter:

    Acetylene capacity:                         20Nm3 /h

    Purity of acetylene:               C2H2>98% PH2<0.02% H2S<0.05%

    Pressure at outlet of generator:      400~500mmH2O

    Water temperature of generator:    <65℃

    Size of calcium carbide:                 80~250mm

    Consumption of calcium carbide:   98kg/h

    Charging pressure:                        25kgf/cm2

    Charging board specific:               20×2

    Total water consumption:             ~3m3/h(circle water)

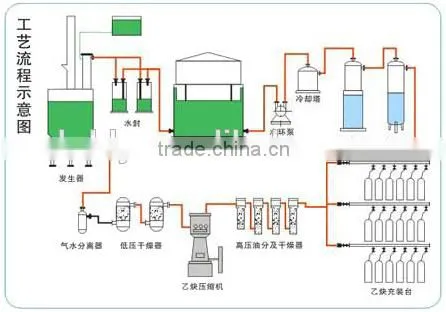

2. Process flow diagram

3.Company information

    Handan Dyon Air Separation Plant CO.,LTD, founded in 2009, is a professional engaged in air separation plant, dissolved acetylene plant, chemical tail gas recycling equipment, food grade CO2 equipment, liquefied natural gas equipment, N2O plant design, research and development, manufacture and after-sales service as one of technological innovation-oriented enterprises. Company existing staff 56, including engineering and technical personnel 13, senior engineering personnel 6, all is for many years engaged in the field of low temperature and chemical products’s technical research and development and manufacturing personnel, in the long-term technology research and development and the production practice has accumulated rich experience.

    Company to the abundant technical force as the backing, during short few years, on the basis of Skid-mounted air-cooled oxygen and nitrogen making plant, design and manufacture the domestic first set of 600Nm³/h oxygen with argon plant, the first set of 1000Nm³/h oxygen with argon plant; Made the domestic first set of 20000 tons/year of large coal bed methane gas liquefaction projects; Taken the lead in developing the domestic nylon acid fat waste water recycling project, to fill the domestic blank; Invented by cryogenic method to recycle hydrogen by-product during the manufacture of polysilicon cross-linked silicon and silicon tetrachloride technology; Invented by cryogenic method of acetyl chloride and hydrogen chloride in chloroacetic acid production exhaust gas recycling technology, and access to national patent grants.

Our main products are:

1.Air Separation Plant

20-180 Nm³/h Skid mounted oxygen and nitrogen Plant

In vitro liquefaction Plant

Liquid Plant (liquid oxygen, liquid nitrogen, liquid argon)

Large, medium and small size low pressure energy saving air separation plant with argon

Medical oxygen Plant

PSA VPSA Oxygen and nitrogen Plant

2. Dissolved acetylene Plant

3. Chemical tail gas recycling facility

4. Food-grade CO2 equipment

5. N2O plant

6. The cryogenic technology application and development

    Products are exported to Chile, Trinidad and Tobago, the Philippines, Indonesia, Vietnam, Laos, myanmar, kazakhstan, tajikistan, Russia, Syria, Iraq, Nigeria, Burundi, Zimbabwe, Libya, etc more than 20 countries and regions.

    Handan Dyon Air Separation Plant CO.,LTD. Based on the "quality credibility to survive, technology development and development" enterprise policy, adhering to the chuang tzu and party made use of "useless" ideas, no use is big use, constantly blaze new trails, strive to build a gas industry technology leader and pioneer, for the general customers to provide professional quality services.

    Welcome customers at home and abroad to visit and negotiate! Look forward to sincere cooperation with you!
