New Design(three Fold)150watt Foldable Solar Panel PWM/Waterprooft/MPPT Controller

This product can get power from sunlight directly and then provide power supply for some electric products. Meantime,its DC power can be changed to AC power by using solar inverter for load use.It is very convenient to carry and work together with solar controller and battery.
This powerful solar panel charger utilize high efficient Mono-crystalline solar modules. Each kit features a built in water proof charge regulator(we have three kind controller: PWM, Waterprooft, MPPT,price is different,which I quote in the website is PWN,if you want other kinds,just contact me,will quote you) that monitors the power output into the battery ensuring that the maximum charge is being provided and once fully charged,it will protect the battery from over charging.
In addition a strengthened, powder coated steel support frame is attached to allow the panels to be directed towards the sun,5 meters of high quality automotive cable with battery clamps for direct connections to the battery are included.

1.Characteristic

It is collapsible,waterproof and easy to carry.Suitable for outdoor travel,camping,etc.To

charge the battery.

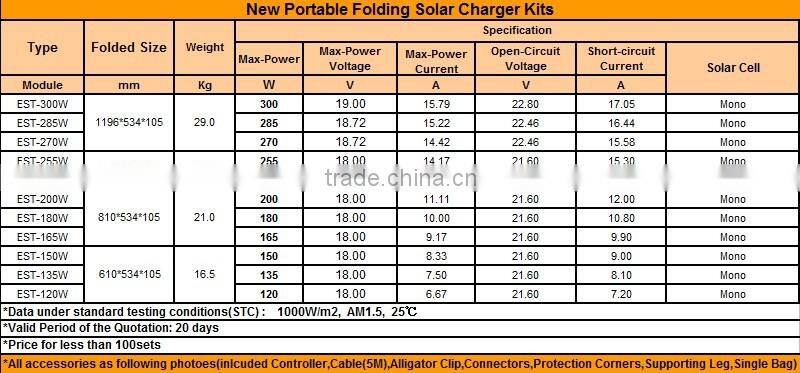

2.Technical parameters

Under normal lighting conditions,put the unfolded solar panel toward the sun direction,then red and

black alligator clips touch positive and negative ends of the battery respectively.

4.Protection Function

The solar controller have overcharge or undervoltage protection function for battery. When the charging

voltage is higher than 14.4V,the controller will turn off charging automatically;When the battery voltage

is lower than the protection voltage 10.8V,the controller turn off output automatically to protect the battery

from damage.At the meantime,the digital light flash and it can't charge

5.Attention

In the case of no load,do not connect the positive and negative.

Frequently Asked Questions

1.What is included in this item?

Solar panel 3PCS50W mono crystalline, heavy duty aluminum supporting legs all aluminum, we never

use the steel for legs like other ebay cheaper products

10A solar charge controller
