20W DC Portable solar Lighting kit with 12v led lamp

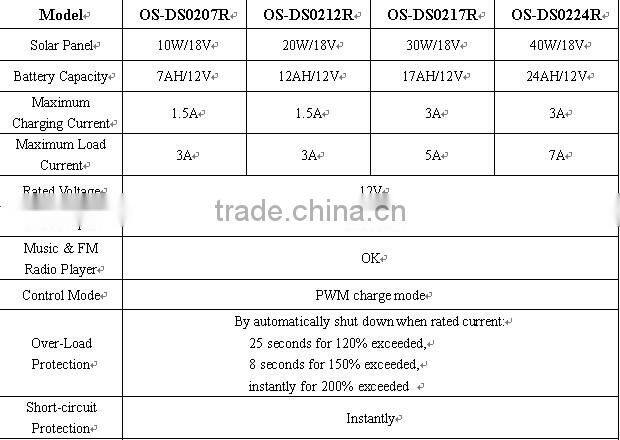

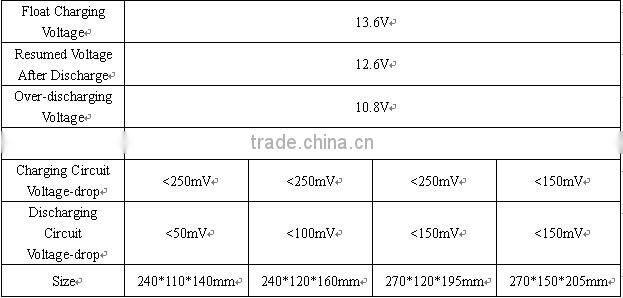

Specifications

solar system in punjab
solar panel:20W/18V
battery:Lead acid 12AH/12V
portable for home light,led bulb
good quality cheap

solar system in punjab :





Functions and Features

This device is a kind of portable power-supply solar system, specially made for DC power appliances. It is widely used in mobile phone charging, lighting, fans and other DC products. In the meanwhile, it also comes with radio and music player functions.

Its main features are as follow:

1.Compact chassis, LED lamps and connecting cables is very easy and convenient to use.

2.By using cables with four interfaces, we can charge several appliances simultaneously.

3.The intelligent chip control prevents the solar system from overcharge, overload, short-circuit, reverse-charging, which guarantees the whole system perform effectively as well as long life duration

4.DC 12V output can be used for DC bulb, fan and many other 12V appliances.

5.With USB cable we can charge mobile phones, electric toothbrushes, digital camera etc

6.Built-in speaker, with music and FM radio player.

Basic Configuration

   Functions and Features





Installation Instructions



1. Press on the “ON/OFF” button to check the working indicator light.



2. Plug the solar panel charging cable into the input port, then the charging indicator will lighten if the solar panel is being put under the sun. Please check the connections of the device carefully and ensure the terminal connector is tightened, if the charging indicator does not light up. In the meanwhile, please note that the charging cable should be connected in according to the indicating diagram, so that it can prevent the rainwater from flowing into the device.

3. Connect DC power appliances and electronic products with the device, and the system will work automatically.

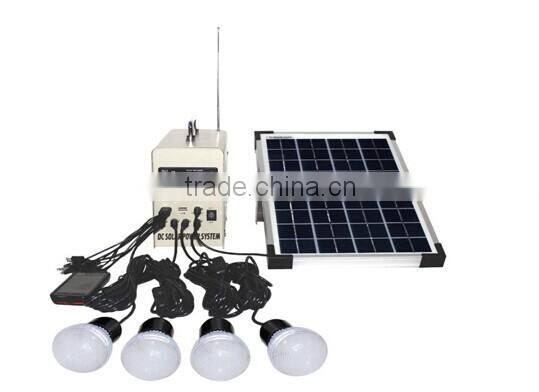

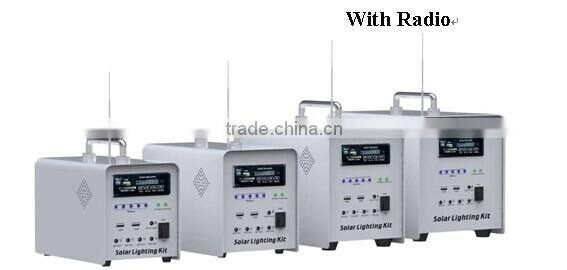

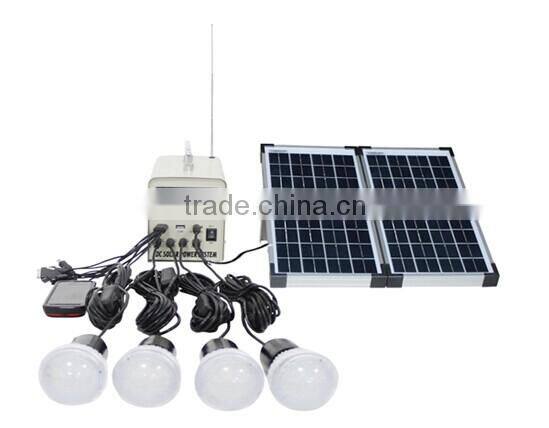

  Product Show

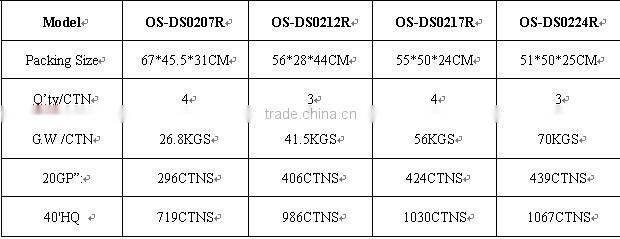

Packing Information







Guarantee Item



1.  1 years upon date of production, we will guarantee to keep the power box in



repair. (not including the battery and accessories.)







2.  1 year upon date of production, we will guarantee to keep the battery in repair.







3.  5 years upon date of production, we will guarantee to keep the solar module in repair.



4.  Guarantee service is subject to normally using.







5.  The guarantee do not cover any normal wear and tear, misuse, or which has been damaged through abuse, alteration, improper installation or application, unauthorized service or modification, storage, transportation or resulting from any power failure surges, natural disaster, or other events outside the dealer’s control.













Payment Terms:

• T/T, 30% Deposit, 70% Pay Before Loading (L/C,O/A can do too)
• Minimum Order: 100SETS
• SAMPLE IS AVAILABLE
