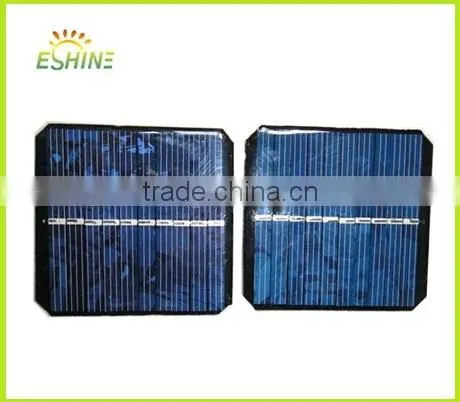

72.5X70.5mm 6V 100mA Mini Solar Panel 6v

72.5X70.5mm 6V 100mA Mini Solar Panel 6v thumbnail-1
72.5X70.5mm 6V 100mA Mini Solar Panel 6v photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Epoxy solar
Model Number:
XRE-72x70-6v100
Contact Supplier Request Quote Chat Now
Ningbo Ever Shine Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Epoxy solar
Model Number XRE-72x70-6v100
Material Polycrystalline Silicon
Size 72.5x70.5mm
Number of Cells 12
Max. Power 0.6W

Specifications

Mini Solar Panel 6v
1) Power: 0.6W
2) Customized design
3)72.5x70.5mm

Epoxy solar panel :



Features



1) High Module conversion efficiency, through superior manufacturing technology

2) 0 to +5W positive tolerance for mainstream products

3) Certified to withstand high wind loads and snow loads

4) Anodized aluminum is for improving corrosion resistance

5) Anti-reflective, Highly transparent, low iron tempered glass

6) Excellent performance under low light environment











Electrical Characteristics





Item No. XRM-72x70-6v100
Optimum Operating Voltage (Vmp) 6V
Optimum Operating Current (Imp) 0.1A
Open Circuit Voltage (Voc) 6.5V
Short Circuit Current (Isc) 0.15A
Maximum Power at STC (Pmax) 0.6W
Cell  Efficiency 15%
Operating Module Temperature    -40 °C to +85 °C
Maximum System Voltage   1000 V DC (IEC) / 600V DC (UL)
Maximum Series Fuse Rating    15 A
Power Tolerance    0/+5 %



STC:  lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;

Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%







Mechanical Characteristics



Solar Cell
 Poly-crystalline silicon solar cell
No. of Cells 12pcs
Dimensions 72.5x70.5mm
Weight 40g
