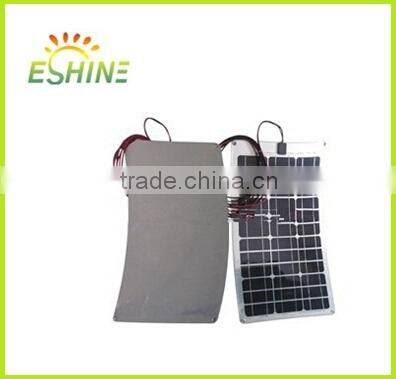

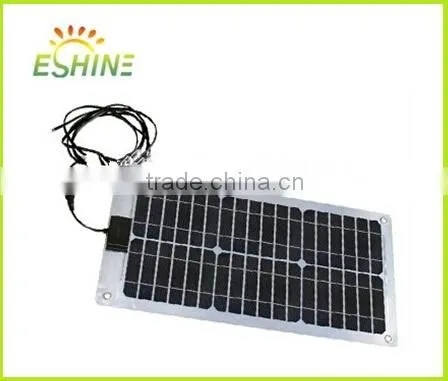

18W Semi Flexible Solar Panel With ETFE Material

18W Semi Flexible Solar Panel With ETFE Material photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Epoxy solar
Model Number:
XRS-156M-18W
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Epoxy solar
Model Number XRS-156M-18W
Material Polycrystalline Silicon
Size 800X 1200X30mm
Number of Cells 36
Max. Power 120w

Specifications

etfe flexible solar panel
1) Power:18W
2) For solar lights, solar products use
3).CE certificate

Epoxy solar panel :

Features



1)  Semi flexible: bending angle up to 30 degrees.

2)  Backed with oxide aluminum, bendable, no glass

3)  Completely water proof

4)  Light weight 70% less than rigid solar panel for easy carrying

5)  Rounding corners to prevent hand from bending scratched

6)  The thickness only 2.5mm, easy joint to your yacht or RV roof

7)   High efficiency mono crystalline solar panel

8)   Hard treatment on the surface to prevent from hand being scratched





Benefit



25-year performance warrant

10-year Product warranty





Electrical Characteristics



Item No.XRS-156M-18W
Optimum Operating Voltage (Vmp)18V
Optimum Operating Current (Imp)1A
Open Circuit Voltage (Voc)21.24V
Short Circuit Current (Isc)1.1A
Maximum Power at STC (Pmax)18W
Cell  Efficiency 18.2%
Operating Module Temperature   -40 °C to +85 °C
Maximum System VoltageDC 300V
Maximum Series Fuse Rating15A
Power Tolerance   0/+5 %



STC:  lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;

Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%



Mechanical Characteristics



No. of Cells36(4X9)
Dimensions600x300x2.5MM
Solar Cell TypeMono






Packaging & Shipping





    1) Price: EXW Ningbo based on 1 unit.

   2) Payment: 30% by T/T, balance by T/T before shipment. Other payment way can be negotiated for big order.

    3)  Package: Export standard package suitable for tough handling and sea transport.

   4) Delivery: Goods to be ready within 5-20 days depending on order quantity.
