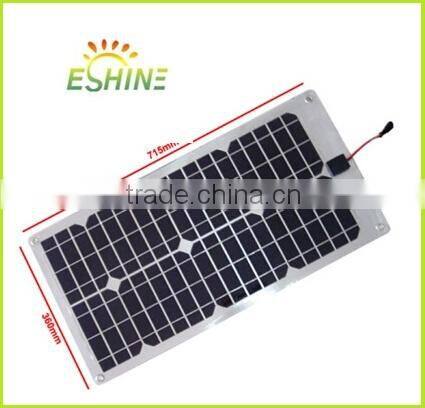

30W Adhesive Thin Film Flexible Solar Panel
- 10000 Piece / Pieces per Month
- NINGBO
- T/T Credit Card
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Epoxy solar | Model Number: | XRS-156M-30W |
Material: | Polycrystalline Silicon | Size: | 715X360X2.5mm | Number of Cells: | 36 |
Max. Power: | 30w |
Product Description
Specifications
adhesive thin film flexible solar panel1) Power:30W
2) For solar lights, solar products use
3).CE certificate
Epoxy solar panel :
Semi flexible solar panel:
A kind of thin-film solar panel, has a lot of obvious advantages, such as: advanced technology, excellent performance, low cost, and versatile. Flexible solar energy is an important field of application is BIPV (Building Integrated Photovoltaic, BIPV), which can be integrated in a window or roof, exterior walls or interior walls.
Features
1) Semi flexible: bending angle up to 30 degrees.
2) Backed with oxide aluminum, bendable, no glass
3) Completely water proof
4) Light weight 70% less than rigid solar panel for easy carrying
5) Rounding corners to prevent hand from bending scratched
6) The thickness only 2.5mm, easy joint to your yacht or RV roof
7) High efficiency mono crystalline solar panel
8) Hard treatment on the surface to prevent from hand being scratched
Benefit
80% output for 25years
90% output for 12years and
Electrical Characteristics
Item No. | XRS-156M-30W |
Optimum Operating Voltage (Vmp) | 18V |
Optimum Operating Current (Imp) | 1.67A |
Open Circuit Voltage (Voc) | 21.24V |
Short Circuit Current (Isc) | 1.83A |
Maximum Power at STC (Pmax) | 30W |
Cell Efficiency | 16.8% |
Operating Module Temperature | -40 °C to +85 °C |
Maximum System Voltage | DC 300V |
Maximum Series Fuse Rating | 10A |
Power Tolerance | 0/+5 % |
STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5;
Best in Class AAA solar simulator (IEC 60904-9) used, power measurement uncertainty is within +/- 3%
Mechanical Characteristics
No. of Cells | 36(4X9) |
Dimensions | 630x440X2.5MM |
Solar Cell Type | Mono |
1) Price: EXW Ningbo based on 1 unit.
2) Payment: 30% by T/T, balance by T/T before shipment. Other payment way can be negotiated for big order.
3) Package: Export standard package suitable for tough handling and sea transport.
4) Delivery: Goods to be ready within 5-20 days depending on order quantity.
