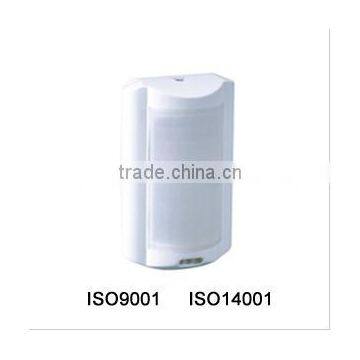

High Quality!!!motion sensor wall pir street light esl-16

Specifications

sensor details:

FEATURES:

• Double detectors;
• SMD technology;
• Three indicators;
• Pulse width adjustable;
• Preventing false alarm function;
• Preventing pet design;
• Shape is delicate and cabinet, installation is convenient and flexible.

SPECIFICATION:

       Power supply: 8V/DC~16V/DC              Static current:6.4mA              Working current:15 mA              Sense distance:8~9m              Sense angle:120°              Installation height:>2 m              LED indicator:              yellowtop detector detects signal              red alarm output signal              greenlower detector detects signal

MOUNTING:

• untighten the screw between front cover and bottom cover, take off the front cover;
• untighten the screw fixing PCB and pull PCB up from clip slot;;
• bore crossing-line hole on the bottom cover;
• run the wire along the wire slot located on the backside of the back cover and insert the wire through the wire access hole ,then fix the detector base to the wall, corner or ceiling with screws;
• reinstall the PCB by place it on the lower stoppers and push the PCB, make the screw hole aim at the one on bottomecover;
• connect wire to the connection block according the figure;
•         replace the front cover and tighten the screw.

  TERMINAL BLOCK:

• Terminal 1 — +12V

Connect to the positive polarity;

• Terminal 2 — -12V

connect to the negative polarity,

• Terminal 3&4 — RELAY

Output terminal,

• Terminal 5&6 — TAMPER

Tamper output, when front cover isremoved, the alarm signal will output to controlling unit.

JUMPER SETTING:

1.LED/ON/OFF: denote three indicator on or off;ON: LED on; OFF: LED off;

2. PULSE, if it set to ”AUTO” , when within 15s the two detector detect signal twice at the same time, output alarm, which can reduce false alarm; when set to “I”as long as the two detector detect signal at the same time, output alarm.

3.” WEIGHT” for choosing the sense object weight,it is also to adjust sensitivity.       When it set to “25KG”,it only detects object weight beyond 25KG;       When it set to “15KG”,it only detects object weight beyond 15KG.

TEST:

• Switch on power, about 60s later the sensor enters working state; (note: when switch on power for the first time, the red LED flashed once every 0.5s)
• Walk test: move along the lens tangentin the sense range;
• When PULSE set to “AUTO”,after the yellow and green LED works twice at the same time within 15s, the red LED should work;(the yellow and green LED works each time for about 3s and the red LED works for 4~5S);
• IfPULSE set to “I”,after the yellow and green works for about 3s, the red LED should work for 4~5s.

Superiority

Manufacture with strong OEM/ODM capability.

Appearance patented.

Many colors availabel.

Safety approval, food grade certificate.

Warranty:

1 year except man-made and natural disasters for fans

Payment Terms:

• T/T, 30% Deposit, 70% Pay Before Loading (L/C,O/A can do too)
• SAMPLE IS AVAILABLE
