Double Side Brushing Machine1.Brushing on the double side
2.Add drying process
3.Full Automatic Control

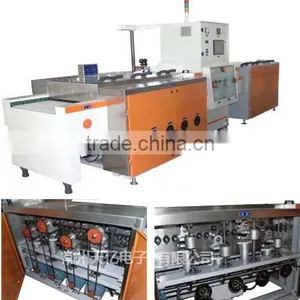

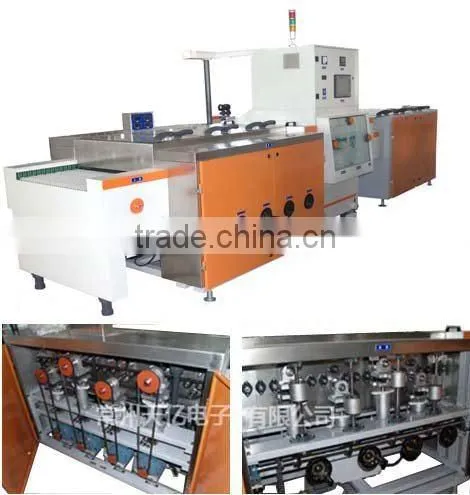

Double Side Brushing Machine
Characteristics:
The line is used as washing treatment for double side plate, usually it is used for surface treatment of drying or wet membrane, also it can use as flux after de-lead or tin. Two upper and two lower roll make the brush even. Spray with acid before brush, which can remove the oxidation layer.
Process Flow:
Put the plate—acid washing—pump washing—urban water washing—rotate the 4 roll brush—pump washing—hi-pressure washing—urban water washing—absorb—blow—dry with hot air—discharge
Main Parameter:
1.Outline Dimension:8151mm×1600mm×2030mm
2.Work Dimension:200mm×200mm(Min)
3.Convey Speed:0.5-5m/min(Speed adjust by frequency conversion)
4.Convey Width:640mm
5.Convey Height:900±250mm
6.Water Flow Volume:15-20L/min
7.Power:28KW
