Automatic comprised etching machine equipped with specially designed whirl Jets which gives equal depth all over th etching areaPCB etching machine
EMC2040 acid etching system with two stage water rinse and integrated regeneration. The EMC2040 is a compact, all-in-one unit with a 30 inch wide conveyor. This machine is ideal for photo chemically etching metals such as stainless steel and copper alloys as well as circuit boards. The integrated regeneration system is designed for use with sodium chlorate and hydrochloric acid.
Ⅰ Pics Display

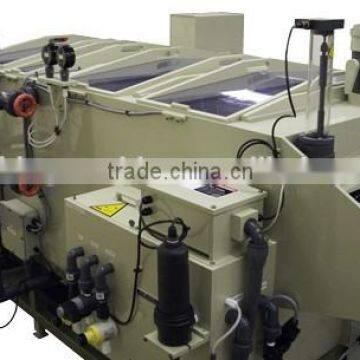

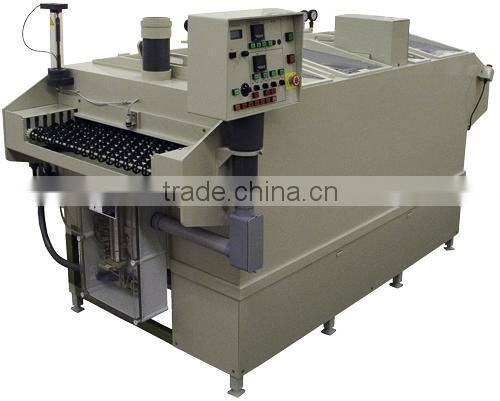

Tianyi EMC2040 Acid Etcher Right Front View

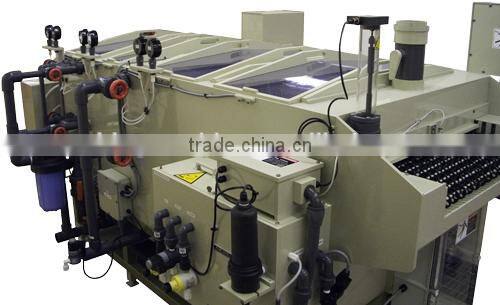

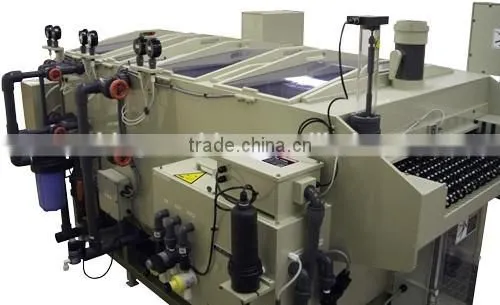

Rear View

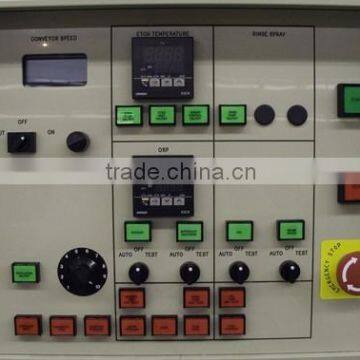

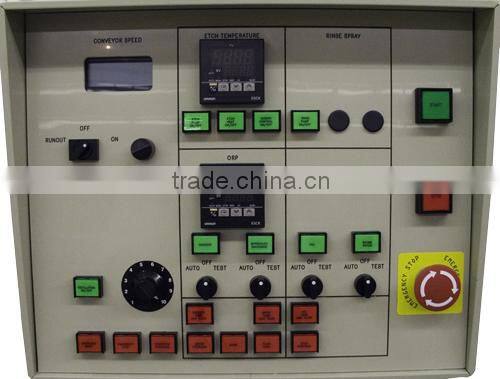

Integrated control panel with etching and regeneration
controls.
Ⅱ Details Description
Parameters:
Model:EMC2040
Power 380V/4.5kw
Working Width: 600mm(length not limit)
Size: 2000*1250*1100mm
Weight: 230kg

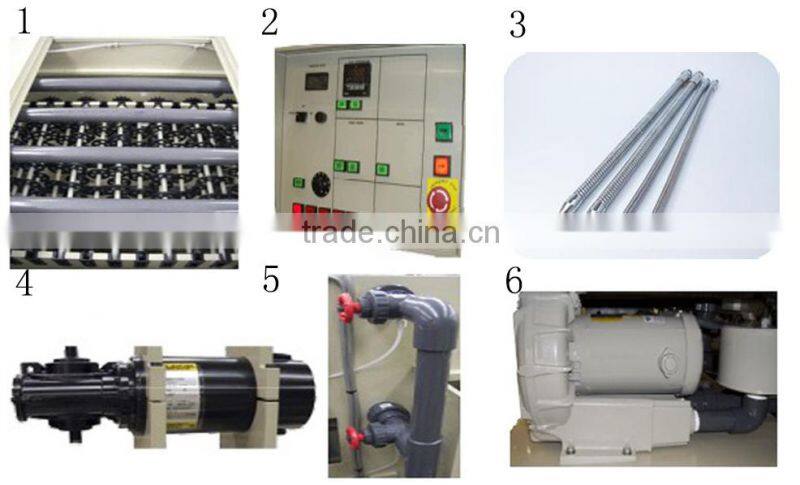

1Sprinkler pipe
All EMC2040 system feature oscillating top and bottom spray tubes in the main etching and developing sections. Each tube can have up to four nozzles. Different types of nozzles and flow rates are availabe to optimize the performance for the application .
2 Control panel
All EMC2040 system feature the main controls located in an eye-level control panel on a swivel mount .A digital temperature control and a digital conveyor control are standard on all EMC2040 systems. Luminatd switches and indicators show the status of the system.
3 Titanium cooling coil
It is standard in the main process chamber. The main chamber also includes titanium heating.
4 Precision DC gearmotors
Operate the main chamber osillation and the conveyor.
5 Main process chamber
It features separate top and bottom valves to regulate and balance the spray pressures. Spray pressure valves are also included in most rinse chambers . Pressure gauges are included as standard features.
6.Dryer
They are availabe as both built-in options for most systems and as independent drying only systems. The Dryer features as
A Tianyi dryer head and air blower built into the system. The blowr is equipped with an air inlet filter.
Ⅲ Application:

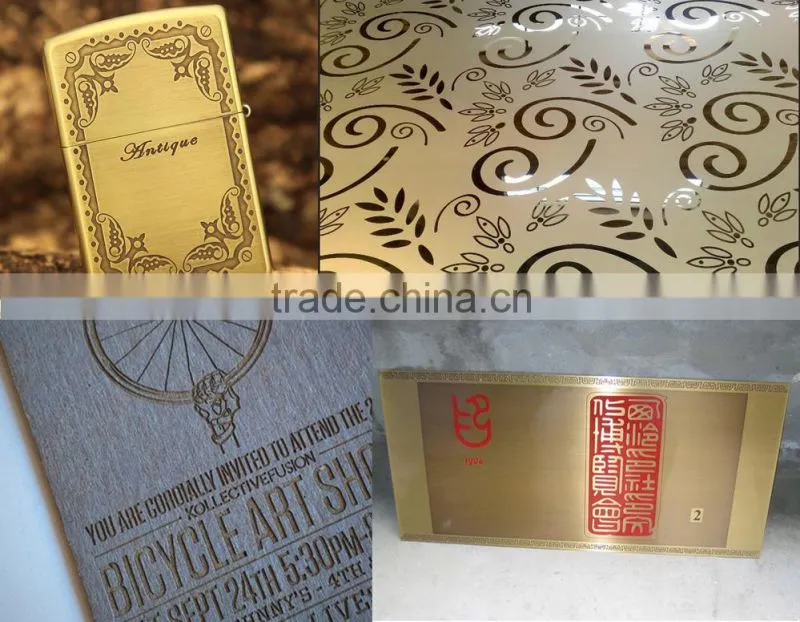

Metal etching :Copper,Nickle,Zinc ,Aluminum,Iron,Tin,Chrom,Magesium ,Pewter,Brass,Silver,etc.

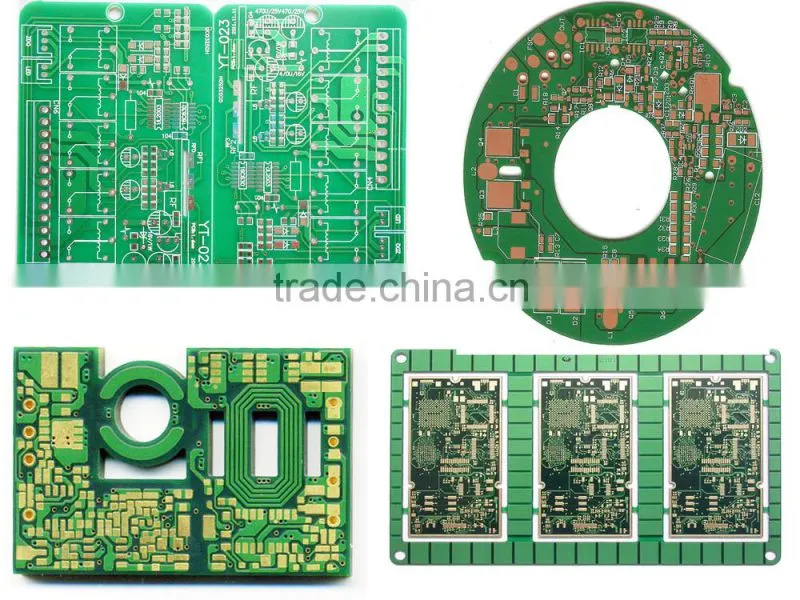

PCB etching : Mobile PCB, Computer PCB, Light PCB , Battery PCB,etc.
Quality & Inspection
- Cooperated with good reputation suppliers.
- 100% check spare parts quality which produced from matching suppliers.
- QC checking each step from spare parts to production on the full of line.
Production for a series of etching,cleaning electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
