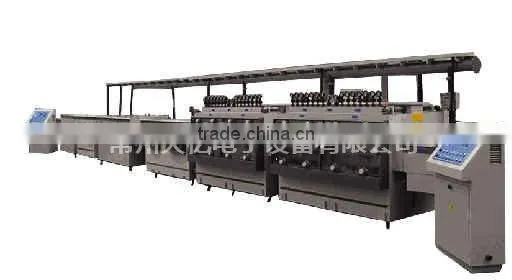

Flex Plate Etching Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Tian Yi
Model Number	TY-CBE-21

Product Description

Specifications

1.suitable for etching flexible,double side and multi-layer lead-tin coating plate
2.most reliable process for SMOBC.

Flex plate etching line:

It is suitable for etching flexible, double side and multi-layer lead-tin coating plate. It is one of most reliable process for SMOBC.
Process Flow:
Put the plate—etching i—recycle water washing i/ii—urban water washing—check—recycle water washing—urban water washing—absorb—blow by strong air—dry by hot air—discharge
Characteristics:
I. The cover is made by toughness glass
II. Use frequency conversion to change the speed, imported pump and electrical appliance.
III. Each spray pipe has its own pressure adjustment, which make the developing even, clean and quick.
IV. The special wheelbase is suitable for thin plate.
V. Man-machine interface
VI. Special design of drain and exhaust system is easy for installation.
VII. Overhead wiring which is easy for maintenance and avoid any damage to liquid medicine
VIII. Flow volume is adjusted, which can save energy.

Main Parameter:

1	Effective height	630mm
2	Work height	900±25mm
3	Convey speed	0.2-5m/min
4	Convey distance	33mm
5	Application	Max: 620mm * any dimension Min.: 60mm * 80mm
6	Workpiece	Flexible plate:≥0.075mm Hard plate:≥0.8mm
7	Total power	67.51KW
8	Outline dimension	12150mm 1800mm2000mm
