Help CenterSUS Etching Stripping Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tian Yi
Model Number:
TY-CBE-27
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Tian Yi
Model Number
TY-CBE-27
Specifications
1.Highly-required precision2.Etching and stripping on stainless steel
3.High quality and accurracy of etching,stripping

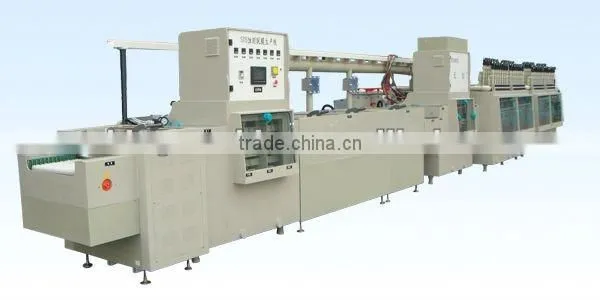

SUS Etching Stripping Line
Process flow:
Feeding → Etching 1 → Etching 2 → Etching 3 → Etching 4 → Wind shearing → Recycle water washing 1&2 → Running water washing → Blot up → Check → Soak → Stripping → Recycle water wash 3&4 → Running water washing → Blot up → Hot wind drying → Discharge
Application:
It’s widely used in the process of etching and stripping on stainless steel with highly-required precision.
Main technical parameter:
1 |
Size of Machine |
L17200×W2050×H1980mm |
2 |
Working Height |
900mm |
3 |
Working Width |
650mm |
4 |
Wheelbase |
35mm |
5 |
Running Speed |
0.5-5m/min |
6 |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
7 |
Total power of the machine |
150KW |
8 |
Size of minimal board |
Min 80*60mm |
9 |
Thickness of outputting board |
0.05-1.5mm |
10 |
Running water consuming |
24-36L/min |
