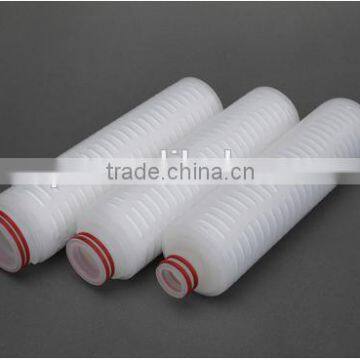

Help CenterPES Mineral Water Filter Cartridge for Equipment Filtration Machine
Related Products
-
0.2 Micron Wine Filter Cartridge for Liquid IndustryUS$ 19 - 40MOQ: 20 Pieces -
Sterilizing Grade 0.2 um PES Membrane Filter Cartridge For Sartorius Filter ReplaceUS$ 18 - 40MOQ: 20 Pieces
-
1micron Water Filter PP Filter Cartridge,10inch 20 Inch pp Pleated Filter Cartridge ,replacement Water FiltersUS$ 0.1 - 2MOQ: 10 Pieces
-
Polypropylene Pleated Filter Cartridges ,PP Filter,water Filter CartridgeUS$ 0.1 - 2MOQ: 20 Pieces
-
PES Filter Cartridge Water Filter System for Drinking SystemUS$ 18 - 40MOQ: 10 Pieces
Specifications:
Material Of Construction | Filter media | Hydrophilic Polyethersulfone |
| Support Layers | Polypropylene |
| Micron rating | 0.1,0.2,0.45 μm |
| Inner core | Reinforced Polypropylene |
| Outer cage,End Cap | Reinforced Polypropylene |
| Seal Method | Thermal Bonded,No Adhesives |
| O-ring/Gaskets | EPDM,Slicone,Buna,Viton |
Cartridge Dimensions | Outer Diameter | 69mm(2.75”) |
| Inner Diameter | 28mm(1.10”) |
| Length(Based on DOE End Cap) | 10”-254mm,20”-508mm,30”-762mm,40”-1016mm |
| Filtration Area(m2) | 0.65m2 per 10” |
Operating Conditions | Normal Operating Temperature | Up to 65℃ (140℉) |
| Max.Operating Temperature | 90℃ (194℉) at P≤1.0 bar (14.5psi) |
| Forward Flow Direction | 4.2 bar (60 psi) at 25℃ (77℉) |
| Reverse Flow Direction | 2.1 bar (30psi) at 25℃ (77℉). |
| PH Value Compatibility | 2-13 |
| Sterilization Temperature Time | Steam Sterilization for 30 minutes at 121±2 ℃, 100 cycles, Cumulative time: 8 hours |
Cartridge Safety | Endotoxin | <0.25 EU/ml |
| Extractables | 0.03g / 10" |
Delivery Details : 12 days after payment
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
