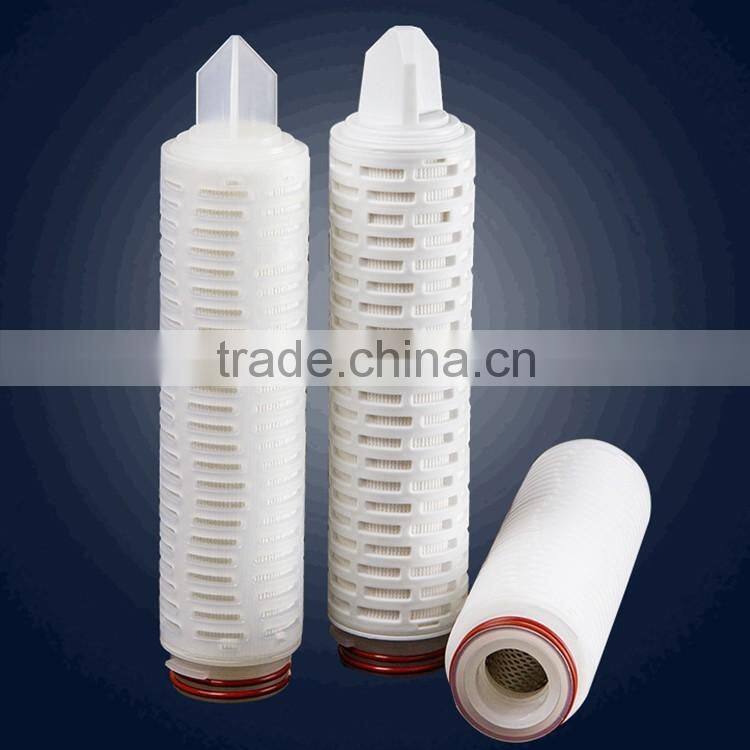

PP Alkaline water filter cartridge With 0.2 micron Absolute filtration effeciency

Material of construction

Membrane

PP membrane

Diversion layer

PP fiber or screen fabric

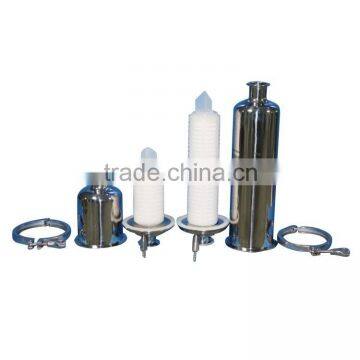

Housing

PP

Membrane support

PP or stainless liner

Dimension

OD

Φ69mm

ID

Φ28mm

length

2.5~40"

Seal ring

Silicone,EPDM,Nitrile,Fluorous,Fluorous with PTFE,

Precision

0.10,0.20,0.45,0.65,1.2µm

Effective filtration area

≥0.65m²

Operating requirements

PH value

1~14

normal working temperature

≤60℃

ing temperature

85℃,Pressure difference≤0.10Mpa

Max.differential pressure

25℃,forward direction 0.42Mpa,reverse direction 0.21MPa

Sterile requirements

121±2℃ steam for 30min/ once or sterilization cabinet 30min/once.

Educt

Endotoxin

<0.25EU/ml

Extractive

<0.03g/10"cartridge

Electronic grade

Hundred thousand grades purify workshop + high-purify backwash,

which satisfy with electronic requirements. Inner and outer diversion

 layer are the import long fiber fabric and the rejection rate is 99.9999% .

Pharmaceutical grade

Hundred thousand purify workshop + second level RO purify water backwash,

which meets with GMP standards. Inner and outer diversion

 layers are the import long fiber fabric and the rejection rate is 99.9999% .

Food grade

Hundred thousand grades workshop + high-purify water,

which meets with FDA regulations Inner diversion layer: import  PP long  fiber  fabric, outer diversion layer: domestic fiber fabric, rejection rate is99.98%.
