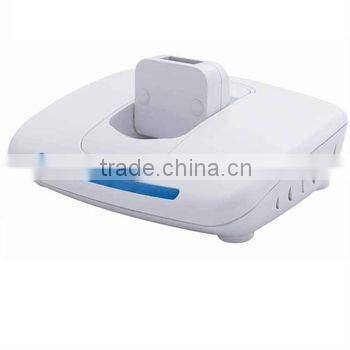

ZTE MF10 is a portable 3G wireless router providing wireless broadband internet service on 2G and 3G network.

1. 3G & WIFI wirelss router ZTE MF10 PK D100 7.2mbps

2.with wifi function support five user

3G wirelss router ZTE MF10 PK D100 7.2mbps

Features:
* USB to connect the modem
* WiFi 802.11 b/g
* 2 × 100 Mbps Ethernet ports
* Supports up to 5 clients WiFi

By default, the administration interface is available in http://192.168.0.1 with admin username and password.

Physical characteristics
Size	93mm X 70mm X 25mm

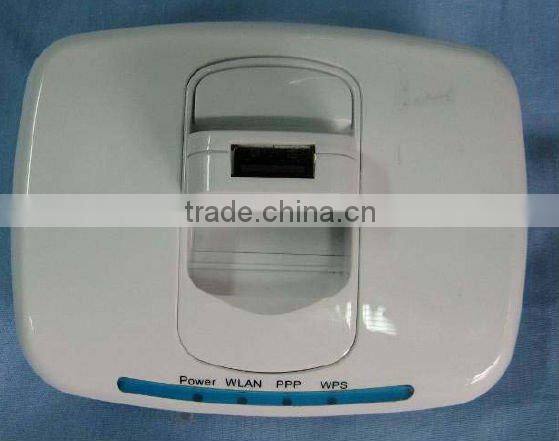

Indicator LED	Support four LEDs: Power, WLAN, PPP and WPS
Temperature	Storage: -20°C ~ +60°C
Temperature	Operation: -10°C ~ +55°C
Button	Support two buttons: WPS and Reset
MTBF	>30000H
Power
Power Supply	Primary driven by an AC connection (uses an external adapter)
Power Supply	Input voltage: 100V~240V, 50Hz~60Hz
Adapter Spec.	Rated voltage: 5V DC±10%
Adapter Spec.	Rated current 2A
Power Consumption	ON State: MAX 6.8W
Power Consumption	OFF State: MAX 0.5W
Interface Port
LAN	RJ45 x 2 (10BaseT/100BaseTX with Auto-MDIX IEEE 802.3)
USB	High Speed USB 2.0
USB	Interface (For USB Modem x 1)
Main board for routing
Soc Processor	RT3050
	Highly-integrated networking security/application processor
	300Mbps PHY data rate
	Support boot from 8/16-bit parallel NOR type Flash
	Embedded a 7-port Ethernet switch and a 5 shot 10/100Mbps PHY
	Hardware packet processing acceleration
	Support 16/32-bit SDR SDRAM
	SDRAM data 31:16 are pins shared with GPIO
Memory	SDRAM 16MByte
Memory	FLASH 8MByte
Internal Power	3.3V 0.9A
	1.5V 0.7A
	1.8V 200mA
	5V 500mA

Modems that ZTE MF10 3G Router supports:

* K3765 and K3765-Z
* K3565
* K3520
* E220
* E172
* ZTE MF626
* ZTE MF627
* Huawei E156G
* Huawei E170 (not officially listed)
