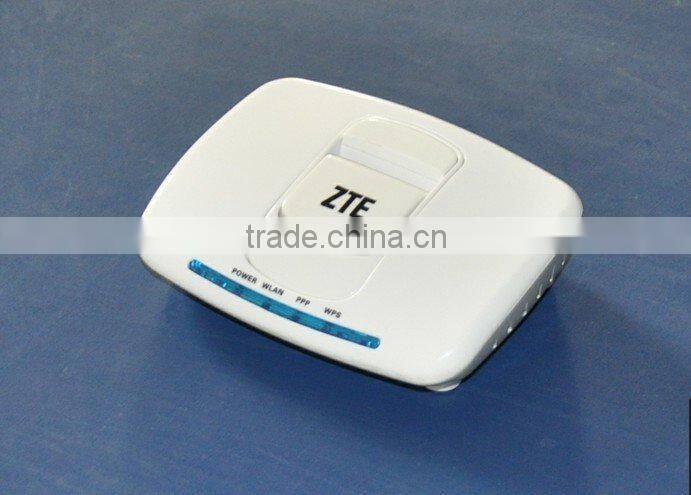

Hot!!! ZTE MF10 3G Wireless Router, HSDPA 7.2Mbps, HSUPA2.1Mbps, Supports up to 5 clients WiFi

Specifications

ZTE MF10 is a portable 3G wireless router providing wireless broadband internet service on 2G and 3G network.

ZTE MF10 - Unlocked ZTE MF10 3G Mobile Broadband Wi-Fi Hub, Unlocked ZTE Vodafone Base WiFi MF10

ZTE MF10 is know is 3 Mobile Broadband Wi-Fi Hub and  Vodafone Base WiFi  MF10, The MF10 Router can support 2 PC and 5 wifi devices at the same time. This unlocked MF10 wireless router support most ZTE, Huawei, Three and Vodafone dongles with SIM/USIM card.

Features:
* USB to connect the modem
* WiFi 802.11 b/g
* 2 100 Mbps Ethernet ports
* Supports up to 5 clients WiFi
By default, the administration interface is available in http://192.168.0.1 with admin username and password.

Physical characteristics
Size	93mm X 70mm X 25mm
Indicator LED	Support four LEDs: Power, WLAN, PPP and WPS
Temperature	Storage: -20°C ~ +60°C
	Operation: -10°C ~ +55°C
Button	Support two buttons: WPS and Reset
MTBF	>30000H
Power
Power Supply	Primary driven by an AC connection (uses an external adapter)
	Input voltage: 100V~240V, 50Hz~60Hz
Adapter Spec.	Rated voltage: 5V DC±10%
	Rated current 2A
Power Consumption	ON State: MAX 6.8W
	OFF State: MAX 0.5W

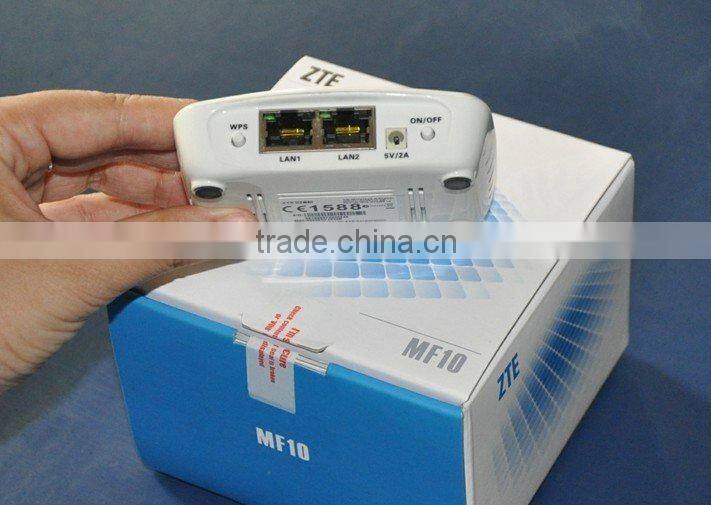

Interface Port
LAN	RJ45 x 2 (10BaseT/100BaseTX with Auto-MDIX IEEE 802.3)
USB	High Speed USB 2.0
	Interface (For USB Modem x 1)
Main board for routing
Soc Processor	RT3050
	Highly-integrated networking security/application processor
	300Mbps PHY data rate
	Support boot from 8/16-bit parallel NOR type Flash
	Embedded a 7-port Ethernet switch and a 5 shot 10/100Mbps PHY
	Hardware packet processing acceleration
	Support 16/32-bit SDR SDRAM
	SDRAM data 31:16 are pins shared with GPIO
Memory	SDRAM 16MByte
	FLASH 8MByte
Internal Power	3.3V 0.9A
	1.5V 0.7A
	1.8V 200mA
	5V 500mA

ZTE MF10 3G Router supported Modems:

Huawei E172 E272 E220 E1750 E1550 E1752 E1612 E180 E169 E122 E176G E182E E156G  D31HW D21HW D22HW D26HW
ZTE MF626 MF636 MF633 MF632 MF627 MF180 MF110 MF100 MF190 MF112 MF662 MF668
Vodafone K3570 K3571 K3565 K3765 K4505
