Specifications
1.Fax GSM FWT2.Support Fax
3.Support voice
4.Reversal polarity
5.RJ-11 Fax interface
Brand: ETROSS or OEM brand
Model No.: ETROSS-SD189

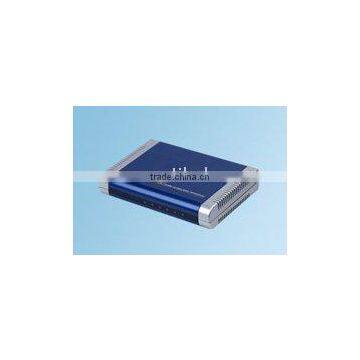

Product name: GSM G3 FAX Terminal
Frequencies: GSM 900/1800MHz
Features:
1.DTMA Clip
2.Clear voice
3.Industrial design
4.Caller ID display
5.Locking PIN/Phone
6.Low power consumpton
7.Attractive plastic casing
8.Suitable for wide voltage
9.SIM card supported(1.8V,3V)
10.Antenna with high sensitivity
11.Provide reversal polarity signal for billing
12.Employ SIEMENS TC35I module to make the unit
13.2 RJ-11 sockets(One for telephone sets,one for fax devices)
14.With indicators of signal intensity,working status,breakdown etc
15.Can send and receive fax by connecting to an analogue fax machine
16.Compatible to most telephones,PBX devices and analogue fax machines
Specification:
1.Power supply
a.Input voltage:AC90~260V
b.Output voltage:DC12V
c.Output current:1.2A
2.Antenna interface:SMA
3.Antenna gain:2.5dBi
3.Bake-up battery:Ni-MH battery 7.2V/1.2A
Operation circumstance
1) Operation temperature: -10'C ~ +40'C
2) Operation humidity: 45% ~ 90% (without frost)
3) Atmosphere pressure: 86 ~ 106KPa
4) Environment noise: less than 60dB
Packaging(Standard carton,20pcs/carton):
1) Dimension (average): L420 x W220 x H70mm
2) Weight:
A) FWT weight: 500g
B) Total weight: 800g
3) Color: Blue
