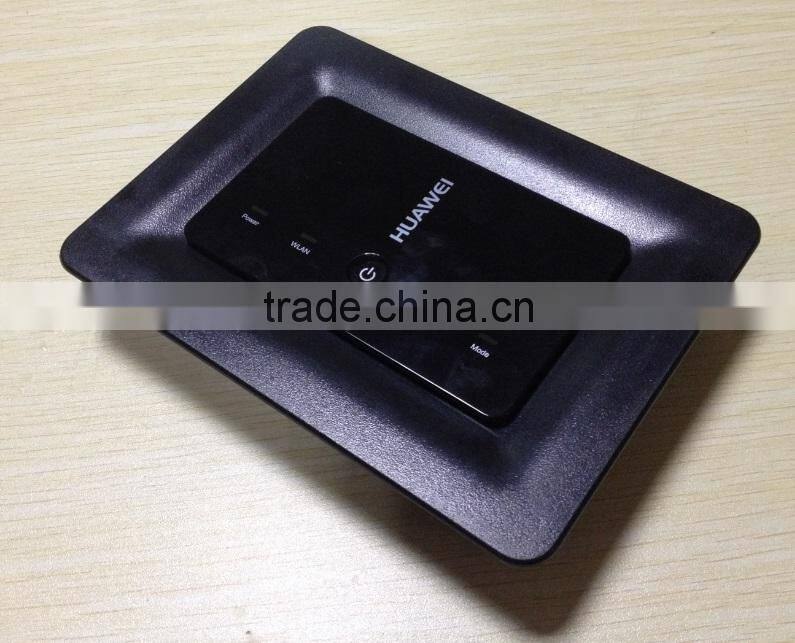

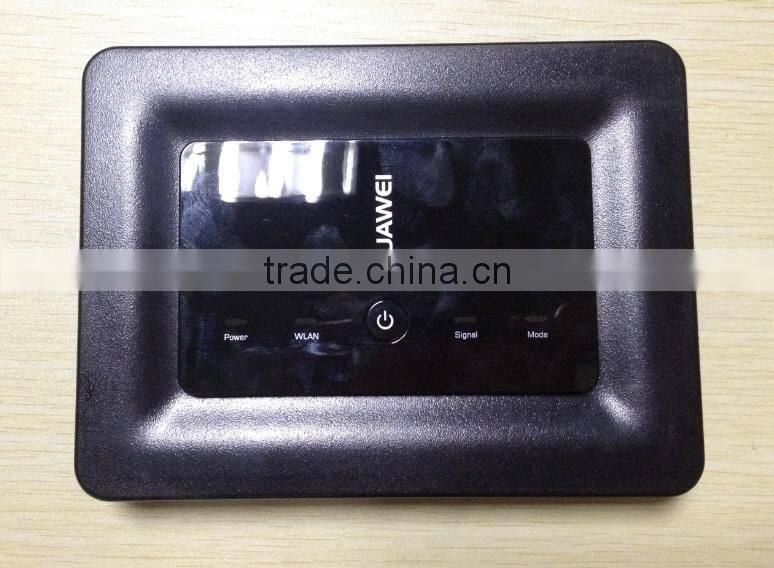

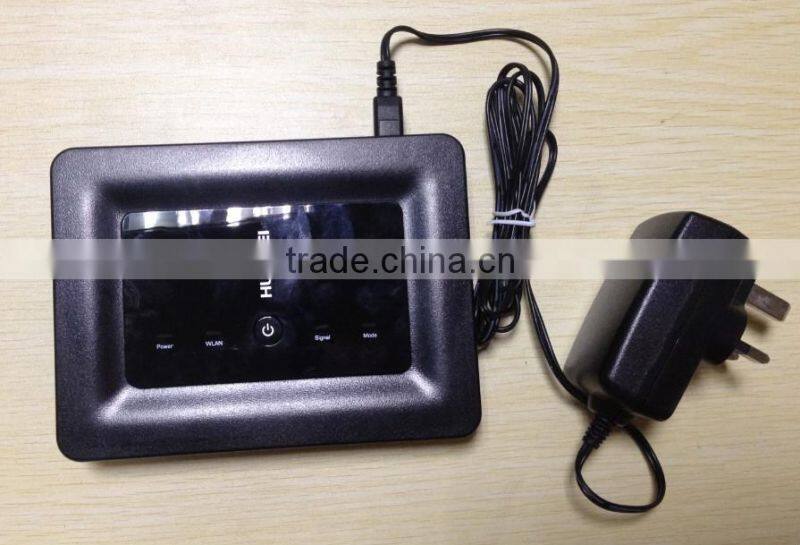

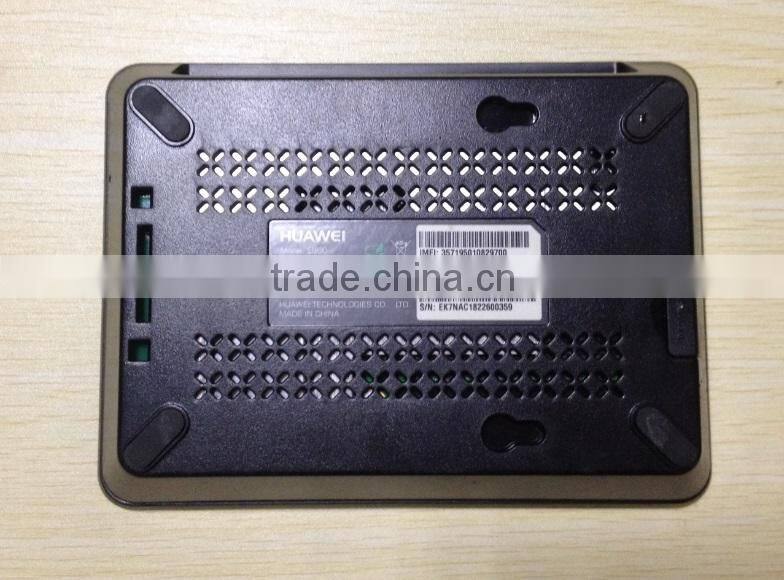

Original Huawei E960 3G GSM to Landline Converter With WIFI

Specifications

Huawei e960 wifi 3g router with sim card slot

1.Wi-Fi/Lan Support Up to 54 Mbps.

2.Built in High Gain Wi-Fi antenn

Highlight

· Supporting two working modes of the wireless gateway and USB modem

· Supporting the HSDPA at a rate of 3.6/7.2 Mbit/s for downlink and 384 Kbit/s for uplink

· Built-in WCDMA and WLAN high gain antenna, which supports receiving diversity and equalizer

· Supporting Web-based management, parameter presetting, and plug-and-play

· Ultrathin and artful ID

· User-friendly design of indicators

· Supporting three placement methods: desktop, desktop inclining, and wall-mounted

Dimensions

(Length × Width × Height)

155 mm × 115 mm × 28 mm

Weight

<500 g

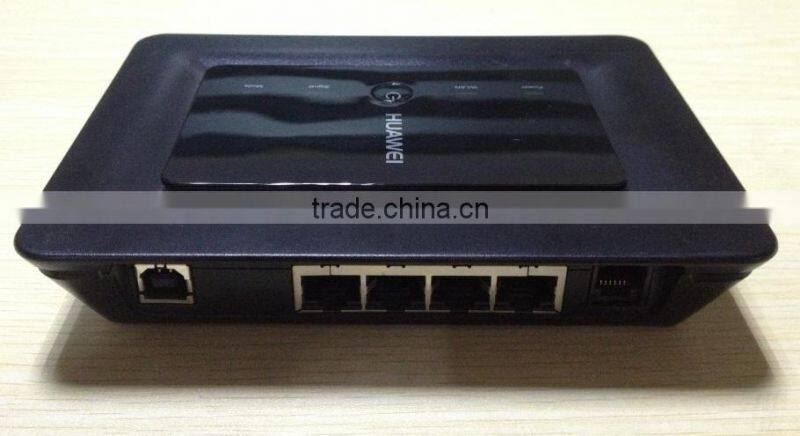

External Interfaces

Four LAN interfaces for the RJ 45

One telephone interface for the RJ11

WLAN: maximum of 32 users

Power supply interface and USB interface multiplex

Indicators

One power supply indicator

One signal type indicator

One indicator for WLAN in service

One signal intensity indicator

Four Ethernet interfaces, each Ethernet interface has a LINK/ACTIVE indicator

Antenna

Built-in antenna

UIM

Supports the R-UIM mode

Operating System (OS)

Windows 2000, Windows XP, Windows Vista, and MAC OS

Band Class

Supports HSDPA/UMTS 2100 M

Supports GSM/GPRS/EDGE 850/900/1800/1900 MHz

Technical Standards

1. HSDPA/WCDMA: 3GPP R5 2004/06

2. GSM/GPRA/EDGE: 3GPP R99 2003/12

Functions

Functions in wireless gateway mode:

· High speed data

· Voice

· Route

· LAN and WLAN access

· Web-based local management and maintenance

Functions in USB Modem mode:

· High speed data

· Short message· Phone book

· Automatic installation, and plug-and-play

· The power is supplied through the USB from the PC. Thus, no external power supply is required.

Others

· Passed certifications such as EMC, SAR, CE, ROHS, and GCF

· Reliable quality and good compatibility

Unlock huawei E960 wireless router, huawei hsdpa gateway router

*************************************************************************************
