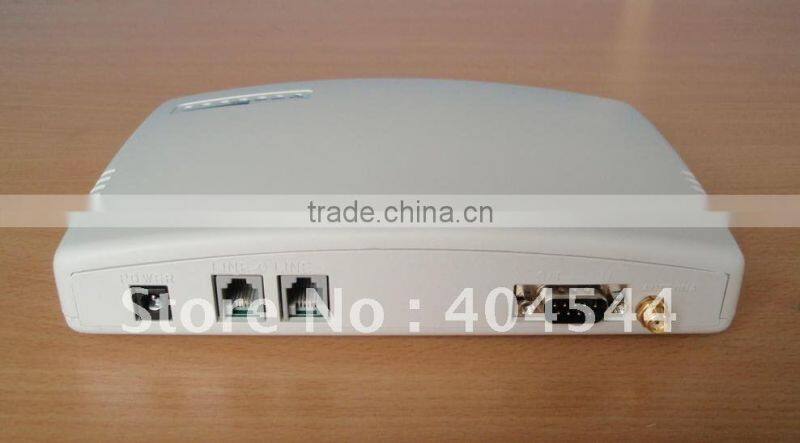

900/1800MHZ GSM FWT Fixed Wireless Terminal Compatibale for Phone,PBX,Alarm

Specifications

GSM is a Fixed Wireless Terminal designed to provide better wireless connectivity between POTS (plain old telephone set) and existing GSM 900/1800Mhz network with high sensitivity to receive signal and large transmitting power to expand extensively the effective coverage of GSM service.

MAIN FUNCTION &FEATURES

1.Simple to install and easy to maintain

2.Steady module & reliable design ensures good performance

3.Provide optimized circuit directly connecting the exchange device for extensions

4.Compatible to most telephones, PBX & VoIP gateways and Alarm System

5.Strong signals with high gain antenna

6.Attractive Plastic casing

7.SIM card support(3V,5V)

8.Caller ID Display

9.Provide reversal polarity signal for metering

10.No noise &Clear voice

11.Suitable for wide voltage range &Low power consumption

12.Suitable for all kinds of weather & environment

13.RJ-11 ports (two extensions line /phone and line (optional) )

14.Locking PIN/ Network (optional)

15.Two extension lines allowed or Wireless to wire (connection to PSTN) (Optional)

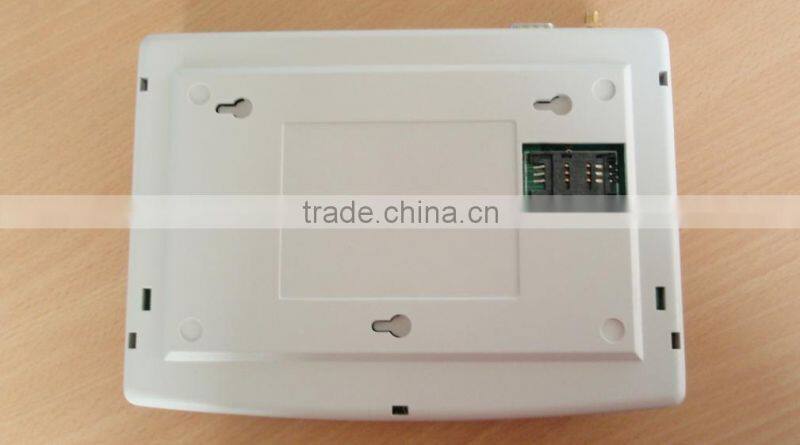

                                             Bottom side

SPECIFICATION

1.Air Interface Standard: GSM 900/1800 MHz Phase 2+

2.Frequency Ranges:

                   Transmission         Reception

GSM 900         890~915MHz        935~960MHz

GSM 1800       1710~1785MHz      1805~1880MHz

3.Channel Space: 200KHz

4.User line, bell signal :In line with GB/T15279

5.Max Power:0.25W/0.5W

6.Consume :Immobility≤25MA,Transmission ≤400MA

7.Sensitivity :-105db

8.Dialtone frequency: 450Mhz (Standard)

9.Surrounding Temperature:-10°C ~ +40°C Relative humidity:45% ~ 90%(Without frost)

10.Atmosphere Pressure:6 ~ 106Pka

11.Environment Noise :(0db

12.Antenna Amplifying: 3.5db(omni directional),12db(certain direction /chosen direction )

13.AC Power:DC10V—20V

   Input: (AC100-230V,50/60Hz) Output: (12V 1A) Switching type /Transformer type Ac-adapter( optional)

14.Connector of Power:China

15.Dimensions(L×W×H) Average :185×135×22(mm)

16.Weight :FWT 400g, full set with ac-adapter &antenna &box 850g

17.Color: White / blue(Optional)

18.Connection Mode:RJ-11 phone sockets

19.Antenna Connection: SMA Antenna Connection.
