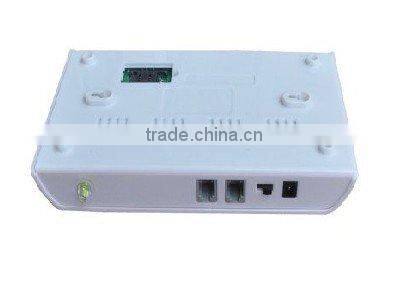

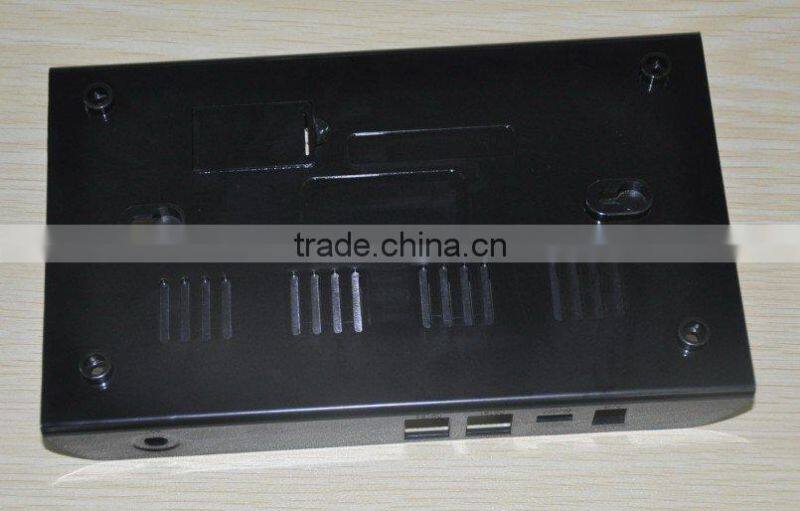

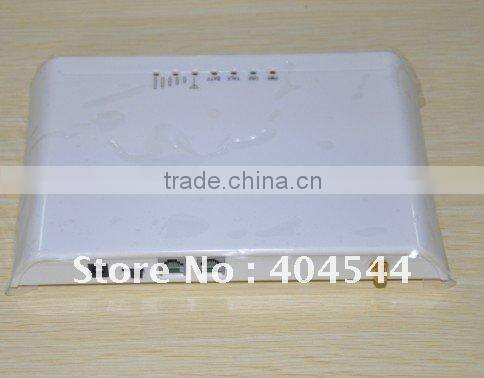

GSM FWT with G3 FAX
Brand: Etross or OEM brand
Model no.: etross-8848
Product name: GSM G3 FAX Terminal Gateway/GSM Fixed Wireless G3 Fax Terminal
Frequencies: GSM 850/900/1800/1900MHz
Features
1) GSM G3 fax terminal supports voice and fax function;
2) Employ Siemens TC35i /MC55i module to make ;
3) Can send and receive fax by connecting to an analogue fax machine;
4) Compatible to most telephones, PBX devices and analogue fax machines;
5) Strong signals with high gain antenna;
6) Attractive plastic casing;
7) SIM card supported (1.8V, 3V);
8) DTMF CLIP ( Caller ID display);
9) Provides reversal polarity signal for billing;
10) No noise and clear voice;
11) Suitable for wide voltage range and low power consumption;
12) Suitable for all kinds of weather and environment;
1) RJ-11 ports (both can connect to ordinary phone set and analogue fax machine);
15) Locking PIN / network (optional);
16) Back up Li-ion battery (Optional) 7.2V 1300mAh.standby 24hrs, talking time: 2.5hrs.
Technical Parameters
1) Air interface: GSM 900 / 1800MHz or Quad band (850/900/1800/1900Mhz)
Frequency ranges:
A) GSM 850 GSM 1900:
I) Transmission: 869.2 ~ 893.8MHz I) Transmission: 1, 930 ~ 1, 990MHz
Ii) Reception: 824.2 ~ 848.2MHz Ii) Reception: 1, 850 ~ 1, 910MHz
B) GSM 900: GSM 1800:
I) Transmission: 890 ~ 915MHz I) Transmission: 1, 710 ~ 1, 785MHz
Ii) Reception: 935 ~ 960MHz Ii) Reception: 1, 805 ~ 1, 880MHz
2) External in interface:
The power supply interface: POWER/DC12V
Outside phone interface: 2 RJ11 (PHONE)
The antenna interface: SMA (Female)
1.8V, 3V SIM interface
3) Power adapter:
Input voltage: AC90-260V/ 50HZ
Output current: 1.2a
4) Backup battery (Optional)
Build-in li-ion battery. 7.2V 1300mAh
5) Antenna:
Frequency Band:
890-960 MHz / 1710-1880 MHz
Gain: 2.5dBi
Wave ratio: <1.5
Input resistance: 50ohm.
Polarize method: perpendicularity polarizes
6) Size: (LxWxH): 420mmX 220mm X 70mm (not include the antenna)
7) Weight:0.8kg (include the antenna, battery, power adapter).
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.
AC-Adapter type: EU, US, AU, British can be optional
AC-Adapter type: EU, US, AU, British can be optional
