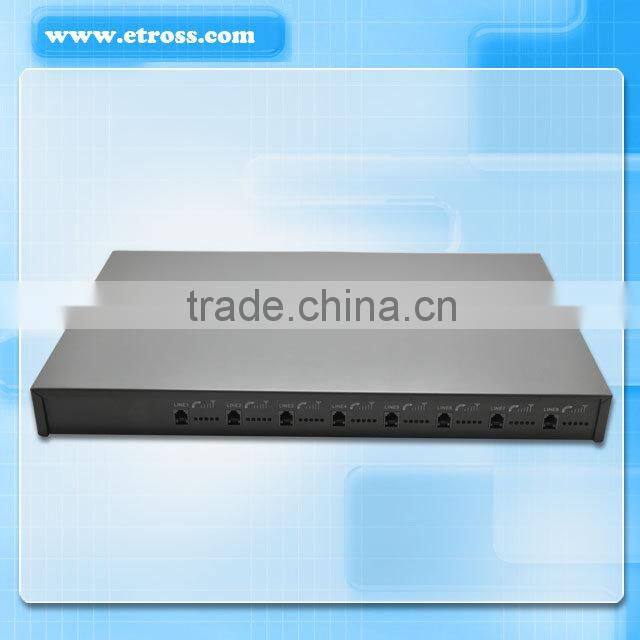

64 SIM 8 Ports GSM FWT Gateway for Termination

Etross-8888

8 ports 64 sim GSM Gateway / Fixed wireless terminal / FWT / FCT / WLL / Dialer

Brand: Etross or OEM brand
Model no.: Etross-8888
Product name: GSM Gateway / Fixed Wireless Terminal / FWT / FCT / WLL / Dialer / Local Loop

Frequencies: GSM850/1900Mhz,900/1800Mhz

General Description:

     Etross-8888 is a GSM to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

     The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect PBX for call extention, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway. It is a GSM Fixed Wireless Terminal that produces an Analog FXS phone line.

Available in: GSM 900/1800Mhz dual band,

                            GSM 900/1800/1900Mhz Tri-band,

                            GSM850/900/1800/1900Mhz Quadband.

Features:

1) It is a 8 channels with 64 sim cards GSM Gateway that has 8 ports FXS interfaces,

     SIM cards rotation.

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.;

3) Dialing tone frequency:450hz;

4) Employ Industrial module Sim300(900/1800/1900Mhz),Sim340 (850/900/1800/1900Mhz) or Wavecom Q2303A,Q2403A,SIM300W ( 900/1800Mhz)], Quectel M10 to make;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

7) SIM card supported (1.8V, 3V);
8) Caller ID display and hide;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;
13) Antenna socket (SMA);
14) IP Presetting;
15) Working status and Signal Strength by LED indicator;

16) IMEI Change (optional)

Key functions:

1) IMEI change by DTMF from telephone set;
2) SIM rotation;
3) Auto IMEI change when SIM rotation.
    - rotator by really clock (4 time o’clock)
    - rotator by dial times
    - rotator by total talking minutes
    - rotator by working hours
 4) GSM 8 ports FWT with IMEI changer
      PS: You can change the IMEI to any 15-digital code or One Number Unified. These are the typical points of 64 sims 8 ports GSM FWT-8888(GATEWAY).

Technical Specifications
Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
    A) GSM 850                                         GSM 1900:
    I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
    Ii) Reception: 824.2 ~ 848.2MHz          Ii) Reception: 1, 850 ~ 1, 910MHz
    B) GSM 900:                                        GSM 1800:
    I) Transmission: 890 ~ 915MHz           I) Transmission: 1, 710 ~ 1, 785MHz
    Ii) Reception: 935 ~ 960MHz              Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: INPUT: AC 110~240V
OUTPUT: 5V 7A

AC-Power type: EU, US, AU, British can be optional

Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

Package:

8 RJ11 Socket

 Independent switch:

64 pieces of sim card slot:

Sketch of connecting with VOIP device:
