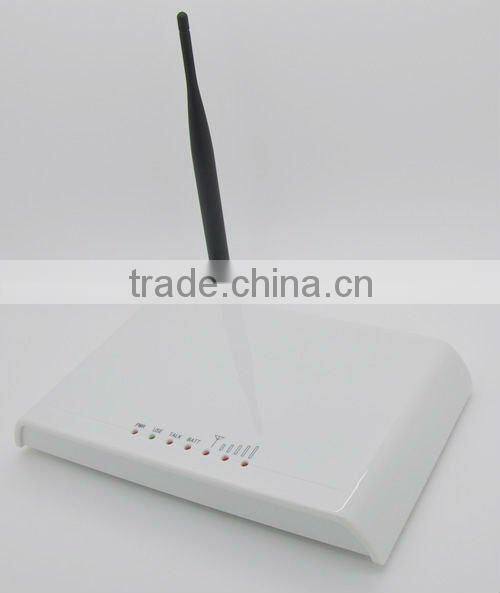

Hot Sale 1 Port GSM FWT G3 Fax Terminal With Analog Fax

Specifications

ATTN: 1) Please confirm your network frequency before you place the order, in North American, Central American and Caribbean and South American countries,GSM Network frequency is: GSM 850/1900Mhz or Quadband 850/900/1800/1900Mhz; while in Europe,Asia,Africa,Oceania and Middle east, GSM frequency is GSM 900/1800Mhz.

2) When you use the GSM fax terminal, please activate your sim card's data &fax function from your severice provider in advance.

3) if you want to send fax,add "#" or "## " before the fax number, (e.g. #28167031, "28167031" is fax number), default is 9600bps.

 the maximum fax speed of # is 9600bps. (high speed)

 the maximum fax speed of ## is 4800bps. (low speed).

if you want to make phone call, just dial the phone number directly.

Brand: Etross or OEM brand

Model no.: GSM G3 FAX Terminal

Frequencies: GSM 850/900/1800/1900MHZ

Main function & Features

-GSM G3 fax terminal supports voice and fax function

-Employ Siemens TC35i module to make

-Can send and receive fax by connecting to an analogue fax machine

-Connect to Alarm systems to realize wireless alarm(for security use)

-Strong signals with high gain antenna

-Attractive plastic casing

-SIM card supported(1.8V ,3V

-DTMF CLIP (Caller ID display)

-Provides reversal polarity signal for billing

-No noise and clear voice

-Suitable for wide voltage range and low power consumption

-suitable for all kinds of weather and environment

-RJ-11 ports (1 for connecting ordinary telephone set,another for connecting fax device)

-Locking PIN / Locking Phone

Specifications:
1. Air interface:  GSM900 and GSM1800Mhz frequencies
2. External in interface:
 The power supply interface: POWER / DC12V
 Outside phone interface: RJ-11(PHONE)
 Outside fax interface: RJ-11 (FAX)
 The antenna interface: SMA (Male)
 3V SIM interface.
 The data Service interface: SERIAL PORT
3. Power adaptor:
 Input voltage: AC90-260V / 50Hz
 Output voltage: DC12V
 Output current: 1.2 A
4. Backup battery:
 Ni-MH battery
 7.2V / 1.2A
5. Antenna:
 Frequency Band:
 890-960 MHz / 1710-1880 MHz
 Gain: 2.5dBi
 Wave ratio: ≤1.5
 Input resistance: 50ohm.
