GSM G3 FAX Teminal with Quadband 850/900/1800/1900mhz

Brand: Etross or OEM brand
Model no.: Etross-8848
Product name: GSM G3 FAX Terminal
Frequency: Dual band: 900/1800mhz

                        Quad band: 850/900/1800/1900mhz


General Description:

The GSM FAX Terminal-8848 has the basic telephone function by easily connecting to telephone set, and it can connect to analogue fax machine to send/receive faxes. The device is available to use in areas where the cable and telephone installation are not accessible.

Available:

GSM 900/1800Mhz dual band, employing Siemens TC55i module to make,

GSM850/900/1800/1900MHz Quad band, employing Siemens MC55i module to make.

General features:

1) Bell signal;

2) DTMF Dialing;
3) Polarity reversal;

4) IP Presetting;

5) Caller ID display;

6) SIM card supported (1.8V, 3V);

7) Employ siemens TC55i module to make

8) GSM G3 fax terminal supports voice and fax function

9) Can adjust voice volume by setting up from telephone set;

10) Working status and Signal Strength by LEDindicator;

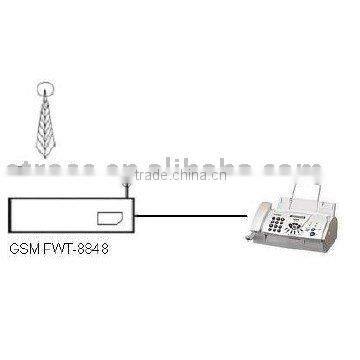

11) Can send and receive fax by connectiong to an analogue fax machine

12) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. ;

13) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

14) The RJ-11 socket which connect the phone or billing system for metering purpose;
15) back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.

External in interface:

Hanging voltage: 45V

Sensitivity:<-104DBM
Transmitting power<3W
Dialing tone Frequency: 450Hz

Outside phone interface: RJ-11(PHONE)

Outside fax interfaxe:RJ-11(FAX)
Picking off voltage: 30mA / 41Ma

Antenna interface: Antenna amplifying>2.5db
AC-Adapter interface: Input: AC 110~240VAC 50~60Hz
Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional

Package:

Attention

1) Please confirm your network frequency before you place the order, in North American, Central American and Caribbean and South American countries, GSM Network frequency is: GSM 850/1900Mhz or Quadband 850/900/1800/1900Mhz; while in Europe, Asia, Africa, Oceania and Middle east, GSM frequency is GSM 900/1800Mhz.

2) When you use the GSM fax terminal, please activate your sim card's data &fax function from your severice provider in advance.

3) if you want to send fax,add "#" or "## " before the fax number, (e.g. #28167031, "28167031" is fax number), default is 9600bps. the maximum fax speed of # is 9600bps. (high speed) the maximum fax speed of ## is 4800bps. (low speed). if you want to make phone call, just dial the phone number directly.
