G20 GSM Burglar Alarm System With LED

Description

• Product Name: GSM burglar alarm system G20 with LED

• Item Code: 144264860

• Category: Other Telecom Systems Add to Favorite Categories

• Short Description: Specifications Wireless GSM burglar Alarm system G20 1. partial arm function 2. LCD display and keypad

• Quantity: 1 Piece

• Package Size: 30.0 * 27.0 * 8.1 ( cm )

• Gross Weight/Package: 1.3 ( kg )

Wireless GSM burglar Alarm system G20***

The GSM alarm system adopts the newest GSM network and Digital Signal Processing technology, and is widely used in security field. With SMS data transmission and voice platform of GSM network, it really realizes wireless alarm control and remote managements and solves the limitation of wired data transmission in telephone and wired network.
GSM alarm system are popular in the world now, so GSM alarm products could extensive apply to security installation, data monitor and long-range supervision systems in same areas such as family, electric power, transportation, petroleum, coal, railroad, government, police station etc.

Main Function
Adopt wavecome double frequency GSM module.
With color LCD show screen and keyboard on the host
1.11 wireless guarding zones (1 wireless SOS zone, 1 fire alarm zone, 1 external power failure alarm zone , and other 8 wireless guarding zones can be defined by user )
2.Send SMS to 3 mobile phones automatically while alarming
3.Call 3 phones automatically while alarming and drive#160;wiretap
4.Set the time of arm/disarm/partial arm
5. Arm/disarm/partial arm by the keyboard on the host, remote controller or SMS.
6. Set the host by keyboard on the host or SMS
7. Modify the name of 8 wireless guarding zones and inquire the status of host by SMS demand
8.Define the 8 wireless guarding zones as partial arm/arm by keyboard on the host
9.With standby rechargeable battery
10. The host automatically stores system status, while its power is off
11. Connect with the alarm center through GSM network

Specification
1.Zone
11 Wireless guarding zones;
Working frequency between detector and alarm host(315M/433M optional )

2.GSM
GSM frequency, 900/1800MHz & 850/1900MHz (optional)
The frequency of Model No.G20E, 900/1800MHZ
The frequency of Model No.G20EA,850/1900MHZ
Consumption, 1W(while sending message)

3.LCDshow

4.External power failure alarm
Start-time: less than 1s

5.Alarm response time
Less than 8s (GSM in normality)

6.The volume of siren
More than 110db

7.Power
Power requirements, AC 220V 50Hz (optional)
Working power consumption,less than 3W
Standby battery,DC 8.4V
Standby battery working hours, more than 15 Hours

8.Working conditions
Operating temperature, -20°C ~ 60°C
Humidity, 20% to 95%

9.Weight of alarm host
Net weight, 0.5Kg
Gross weight, 0.75Kg

10.Dimension of alarm host
Dimension, 160mm(Long)×113mm(Wide)×38mm(High)


Packing details:

One alarm host (main unit)
One wireless door/window magnetic contact
One wireless PIR sensor
Two remote controllers
One siren
One AC adapter
One English user manual

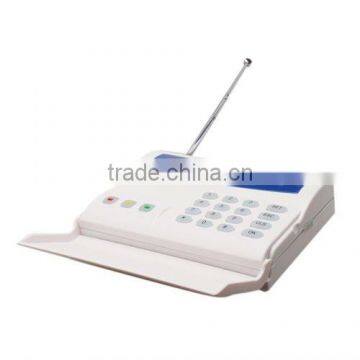

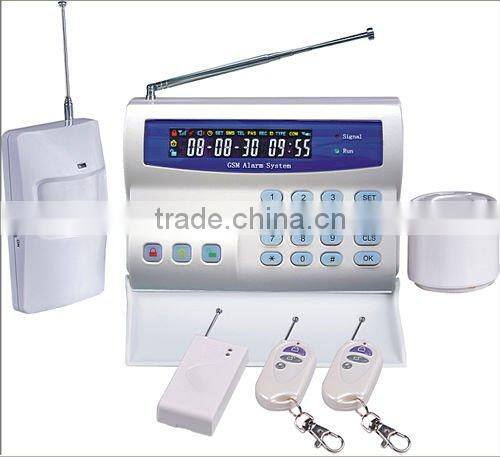

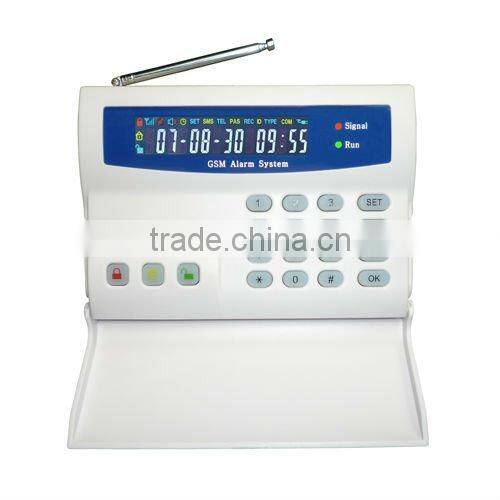

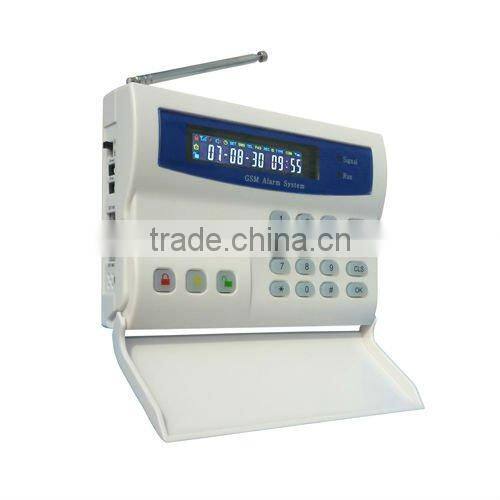

Pictures of G20 GSM Burglar Alarm System
