Asterisk IP PBX FXO/FXS PCI CARD With 16 ports

Brand: Etross or OEM brand
Model no.: Etross-1600P
Product name: Asterisk FXO/FXS PCI CARD With 16 channels

Descripition:

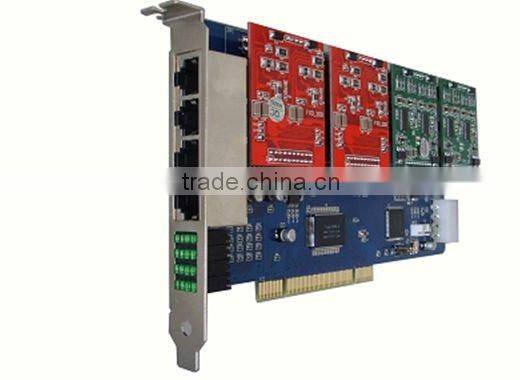

ETROSS-1600P is a 16 channels FXS/FXO analog Asterisk PCI card which is mainly applied to PSTN environment. It supports all the functions of Asterisk PBX systems needed.

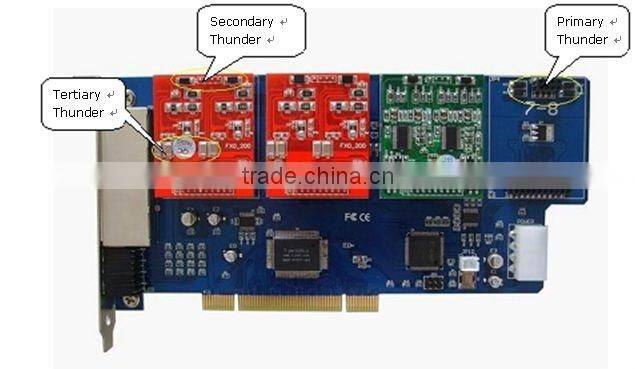

1.High security: It adopt tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.

2.World Wide Usable: Configurable line interface to meet global telephone lineinterface requirements.

3.User could choose any of combinations of FXO_200 or FXS_200 modules according to their requirements.

4.32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention.

5.The high stability firmware is exported / imported with DMA data exchange, so it accelerated and reduced CPU load greatly. Under the environment of the same hardware, CPU rate of utilization is equal to CPU rate of utilization of using 4 port analog card.

6.It supports all the functions of Asterisk PBX systems needed.

7.Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabing users finger effectively.

Applications:

PBX/IVR Services

VoIP Services

VoIP Gateways

FAX Server, FAX On Demand

Voice Mail Services

Call Centers

Prepaid Calling Card System

Callback Service

Traditional Calls/VoIP Calls Conference

Hardware and software requirements:

1.Interface:  PCI Express 1x

2. CPU    800+MHZ

3.  RAM   128+MB

4. Linux   kernel   2.4.x or 2.6.x

Size and Weight:

Size(L*W*H):  214*105*24MM

Wight: 294g

Environmental instructions:

1.  Temperature Operation: 0 to 70°C

2.  Temperature Storage: -35°C to 120°C

3.  Humidity: 10% to 90% Non-condensing

4.  Voltage: 3.3V/12V

5  Power Dissipation Mas: 3.25w/30.76w
