4 Port FXS/FXO Analog Asterisk PCI Express Card

Specifications

Etross-400E Specification


Etross-400E is a 4 port FXS/FXO analog Asterisk PCI Express card which is mainly applied to PSTN environment. It supports all the functions of Asterisk PBX systems needed.

Features:

1. High security: It adopts tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.

2. World Wide Usable: Configurable line interface to meet global telephone line interface requirements.

3. The PCI plug is based on PCI Express 1X. User could choose any of combinations of FXO_100 or FXS_100 modules according to their requirements.

4. 32 bit bus master DMA data exchanges across PCI interface at
250Mbytes/sec for minimum host processor intervention.


5. It supports all the functions of Asterisk PBX systems needed.

6. Easy to stall: Both software and hardware compatible with Digiums
TDM400P.

7. Exchangable with Digium modules: It is mixable with X100M/S100M of Digium.

8. Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabing users finger effectively.

Special Features:

1. High security: It adopts tertiary thunder preventing technology, can prevent the thunder and lightning from striking effectively.

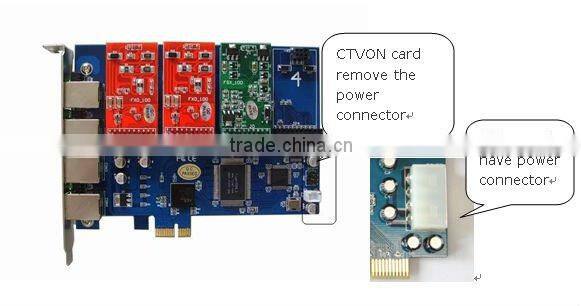

Etross card remove the power connector

Other cards have power connector

2. Humanization is designed: The module socket that should be nipped is all adopted and stuck to one slice of sockets, can prevent stabling users finger effectively.

3. Etross-400E has a clock output plug to realize the clock synchronization. Through the clock line connect to the plug; Etross-400E can be connected to other cards, like GSM400P. With the clock synchronization, user can plug some cards in one computer.

Clock output plug


4. Super strong Anti-interference: All logic signals urge with the special-purpose drive chip, it make the card has super strong anti-interference. And support clock resume automatically. When the clock was interfered with the frequency deviation to happened by the external world to influence the communication, the system can reset to the clock automatically, resume normal communication


Applications:

1. PBX/IVR Services

2. VoIP Services

3. VoIP Gateways

4. FAX Server, FAX On Demand

5. Voice Mail Services

6. Call Centers

7. Prepaid Calling Card System

8. Callback Service

9. Traditional Calls/VoIP Calls Conference

Hardware and software requirements:

1. Interface: PCI 2.2
2. CPU 800+MHZ
3. RAM 128+MB


Linux kernel 2.4.x or 2.6.x

Size and Weight

1. Size (L*W*H): 140*104*12MM

2. Wight: 152g

3.Temperature Operation: 0 to 80°C
4.Temperature Storage: -35°C to 120°C

5.Humidity: 10% to 90% Non-condensing

6.Voltage: 5V/12V

7.Power Dissipation Mas: 2.65w/10.8w

Disclaimers: Digium? is registered trademark of Digium, Inc

                    Asterisk? is registered trademark of Digium, Inc
