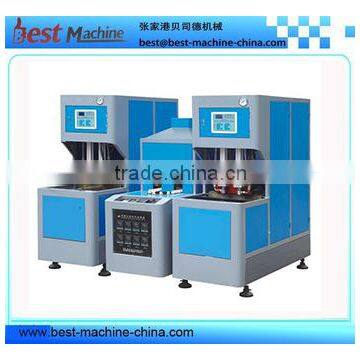

Semi automatic plastic bottle blowing equipment
This machine is mainly dedicated to the raw materials of polyester (PET) hollow molding, now promoted to the market of today's comprehensive domestic and foreign advanced transmission device and automatic control technology, in product design and manufacture according to customer feedback, constantly updated and improved. With the characteristics of fast production speed, stable operation, long service life, convenient maintenance and so on.
Main characteristics
The hyperbolic arm is arranged. The four pull rod is arranged. The clamping speed is quick. The clamping force is strong, and the closing mode is tight and fine.
Using the chain transfer mode system is simple and fast.
The only use of the overall casting frame, weight, not easy to shake.
Using the rigid guide rail to move the template and the former template fixed structure, the production of 100% not out of the bottle, greatly enhanced the safety and reliability of the whole machine and running smoothly.
Double start work and safety device, to prevent injury.
Advanced electrical control system design to ensure accurate and reliable execution of components.
Air circuit design is advanced, with a buffer device, the moving parts of the work is smooth, no impact, low noise.
Sealing, stretching the design of the cylinder body, left and right cylinder each into a group, not interfere with each other.
Isolated gas control system, to prevent the waste gas emissions pollution workshop.
Delivery of special bottle blank and one-way bottle fetching function, which is convenient, quick, put, improve productivity.
The bottle blowing machine adopts photoelectric protection device, which makes the operation more safe and reliable.
Project | Description | Standard dimension | Remarks |
| Product volume | Maximum volume of products | 2L(Maximum) | 1 out of 2 |
| Technical parameters | Theoretical output | (0.5L)1200-1400pcs/hour | |
| Heating power | 25.6KW 380V 50HZ | Actual power consumption ≈9KW | |
| Blow pressure | <3.5Mpa | Action pressure≤0.8 Mpa | |
| Shift mode stroke
| 140-170mm
| ||
Die thickness range | 120-220mm | ||
Maximum stretch length | 360 mm(Adjustable) | ||
| Temperature control section | 8 section 4group | Controlled by the intelligent pressure regulating power meter | |
| Cooling fan | 2pcs 220V | ||
| Host size | 1.36(L)*0.6(W)*1.55(H)m | Not packed | |
Heater size | 1.77(L)*0.6(W)*1.38(H)m
| Not packed | |
| Machine weight | 550kg | Not packed | |
| Oven weight | 220KG | Not packed | |
| The auxiliary (optional) | High pressure air compressor | 2.0CBM/3.0Mpa | Delivery / pressure |
| Gas storage tank | 1.0CBM/3.0Mpa | Delivery / pressure | |
| Cooling-water machine | 3AC | ||
| Motion control | Motion control | Wuxi xinje
Varying with the change of the product.
| |
| Operation interface | Wuxi Xinjie | ||
| Die cooling | Independent water source 1 into 1 | ||
Package: wooden case
We take care of our machine packing and loading.
Blowing machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We should take photos of loading, and send to you for reference.
