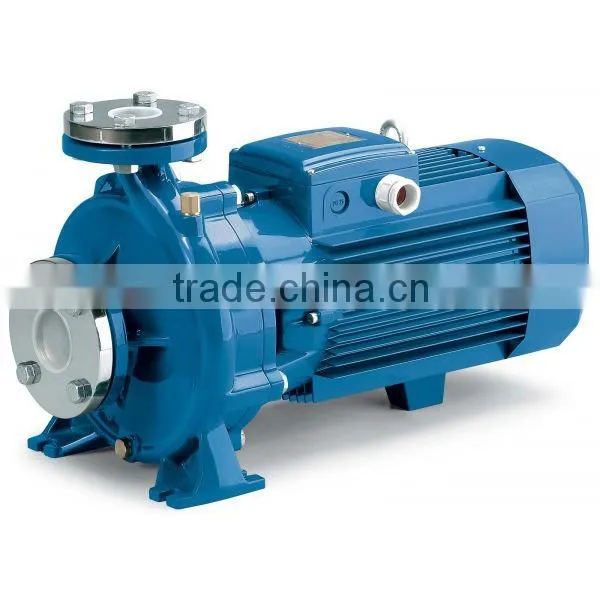

Centrifugal Pumps with Energy Saving "EFF Motor" F65/160A
Negotiable
1 (Min. Order)
You May Like
Product Details
| Place of Origin | Italy | Brand Name | Pedrollo | |
| Model Number | F65/160A | Theory | Centrifugal Pump | |
| Usage | Water | Power | Electric | |
| Fuel | Other, Motor | Application | Other, Clean water |
Product Description
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Flow rate up to 2400L/min.
- Head up to 95m.
Installation and Use:
- Water supply.
- Pressure boosting.
- Irrigation.
- Water circulation in climatisation sets.
- Cleaning sets.
- Firefighting sets.
- Industrial applications.
- Agricultural applications.
- The pumps must be installed in enclosed places, or at least protected against inclement weather.
| Model | F65/160A |
| Size (Discharge) | 3" x 2-½" |
| Power (Kw) | 15 Kw |
| Phase | 3 |
| Performance--Flow (L/min) | 600 ~ 2400 |
| Performance--Head (Meter) | 40.5 ~ 28 |
Electric Motor : F > Three-phase 400/690V - 50Hz.

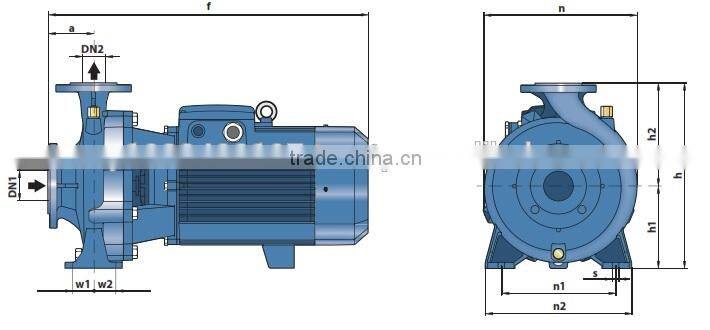

Dimensions:
| Model | F65/160A |
| Ports (DN1) | 80 |
| Ports (DN2) | 65 |
| Dimensions (mm) ---a | 100 |
| Dimensions (mm) ---f | 716 |
| Dimensions (mm) ---h | 360 |
| Dimensions (mm) ---h1 | 160 |
| Dimensions (mm) ---h2 | 200 |
| Dimensions (mm) ---n | 300 |
| Dimensions (mm) ---n1 | 212 |
| Dimensions (mm) ---n2 | 280 |
| Dimensions (mm) ---w1 | 47.5 |
| Dimensions (mm) ---w2 | 47.5 |
| Dimensions (mm) ---s | 14 |
