Submersible Stainless Steel Sump Pump SQ-112N

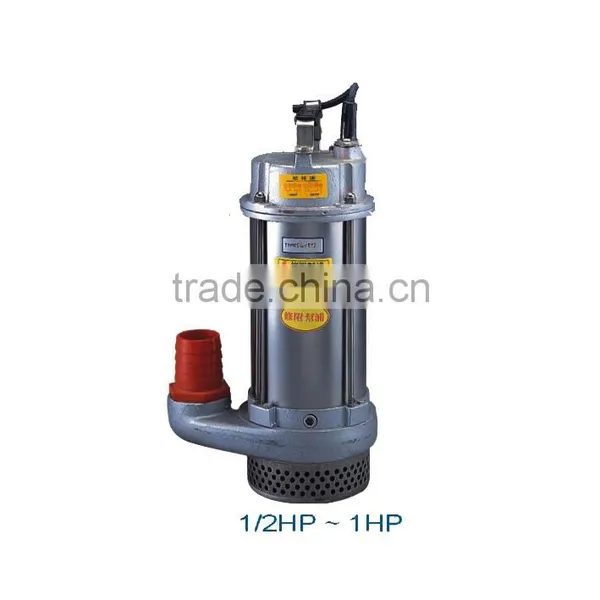

Submersible Stainless Steel Sump Pump SQ-112N photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
ShowFou
Model Number:
SQ-112N
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name ShowFou
Model Number SQ-112N
Structure Other, Submersible Pump
Usage Water
Power Electric
Fuel Other, Motor
Application Other, chemical, maritime

Specifications

1. All Stainless Steel.
2. High efficiency.
3. Made in Taiwan.

Features:

  • Extra long life design, since the pump and all related parts are made of SCS 13 stainless steel, these will have the capability of anti-acid & alkali; and also suitable for using in sea water.
  • Equipped with double mechanical seals, together with anti-corrosion viton so as to make up these special assemblies.
  • Impeller was balancing processed, this vibration free advantage brings the pump and motor superior servicing life.
Applications:
  • The pumps are applicable in the following industries: Chemistry, heavy-chemistry, medicines, photograph, dyeing, bleaching, food, fishery, drinks, brewing, oil and fat, oil refining, cosmetic., fiber, metal treatment and electro-chemistry.
  • For a member of plant preventing pollution, sewage and drainage treatment, washing plant, dust collecting plant and clean air plant.

Model SQ-112N
Motor >> Power--KW (HP) 0.75 (1)
Motor >> Phase (PH) 1
Motor >> Volt (V)  220
Pump >> Disch. Dia.--inch (mm) 3" (80)
Pump >> Max. Head (m) 10
Pump >> Max. Flow (m³/min) 0.5
Cable (mm² x M) 2² x6
Weight (KG) 24 Kilogram (KG)



Dimensions:

Submersible Stainless Steel Sump Pump SQ-112N
Model SQ-112N
A (mm) 300
B (mm) 150
C (mm) 190
D (mm) 240
E (mm) 125
F (mm) 505
