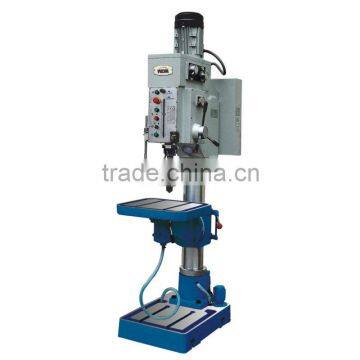

Pillar type Vertical Drilling Machine Z5050

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Feature and Applications:

New-designed, pleasing appearance, compact construction, wide speed change range, easy to operate.
Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
The working table can be rotated 180° and can be tilted ±45° as well, it is reliable and easy job can be done.
Equipped with coolant system and tapping mechanism.
Equipped with shortcut and overload protection, its electrical system with powerful spindle motor, it designed according to IEC standard.
Characteristic protection device is safe and reliable.
Ideal choice for single piece, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.

Standard accessories:

Special accessories:

Model	Z5050
Maximum drilling diameter (mm)	50mm
Maximum tapping diameter (mm)	M30mm
Column diameter (mm)	180mm
Spindle travel (mm)	240mm
Spindle center to column surface distance (mm)	360mm
Maximum spindle nose to table distance (mm)	570mm
Max. distance spindle nose to base (mm)	1160mm
Spindle taper	MT4 or MT5
Spindle speed range (r / min)	42 to 2050 (R/min)
Spindle speeds series	12
Spindle feed rate (mm / r)	0.07, 0.15, 0.26, 0.40
Working table size (mm)	550mm*470mm
Table travel (mm)	550mm
Base table size (mm)	450mm*440mm
Overall height (mm)	2380mm
Main motor (kw)	2.2/2.8
Cooling pump motor (W)	40
GW / NW (kg)	800Kg / 730Kg
Packing size (cm)	108cm62cm245cm

** All Specification and Design are subject to change without prior notice **
