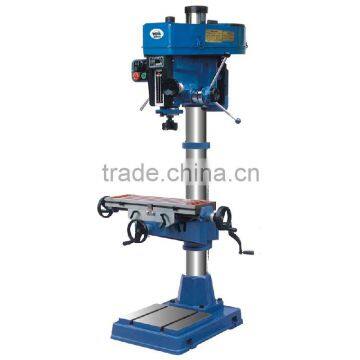

Drilling & Milling Machine ZX-32HC
Negotiable
1 (Min.Order)
- 0 per Month
You May Like
- Vertical Facing And Centering Machine VZ820550
- CNC Cylindrical Grinding Machine MA2060/MP2060
- Inner Race Milling Machine QYXB125
- grey color interlocking kelly bar, drill pipe for Bauer Sany Soilmec XCMG Casagrande
- Friction kelly bar,yellow color kelly bar for rotary Bauer Sany Soilmec XCMG Casagrande
- new design friction kelly bar, Rotary drill pipe for Bauer Sany Soilmec XCMG Casagrande
Product Details
Condition: | New | Drilling Speed: | 100 ~ 2150 | Brand Name: | Xest Ling |
Model Number: | ZX-32HC | Voltage: | 415V | Power(W): | 1500W |
Dimension(L*W*H): | 80cm*75cm*186cm | Weight: | 305 Kg |
Product Description
ZX-32HC Drilling & Milling Machine Characteristics:
- The machine adopt belt driving and the low noise, the machine can drill, enlarge, ream and milling.
- The machine has the twelve-series speed variable feature, which can be widely fot for processing to kinds of common hard & soft material.
- The head and table can rise & down freely, the head could also move reverse, enlarge the range of process.
- The main body is stable & form, effective working area of table is 585mm*190mm.
- According to the customer demand the machine can drill, enlarge, ream, and tap the multi-holes by the multi-spindles.
Standard accessories:
- Drill chuck Φ16mm.
- Cutter Φ80mm.
- Taper sleeve.
- Arbor.
- Drift.
- Wrench.
- Drawbar.
Special accessories:
- Milling chuck.
- Angle vice.
- Safety guard.
Model | ZX-32HC |
Max. Drilling capacity (mm) | 31.5mm |
Width of face milling (mm) | 80mm |
Diameter of vertical milling (mm) | 22mm |
Diameter of column (mm) | 115mm |
Spindle travel (mm) | 130mm |
Distance spindle axis to column generating line (mm) | 202mm |
Max. Distance spindle nose to table (mm) | 745mm |
Max. Distance spindle nose to base (mm) | 1245mm |
Spindle taper | MT3 |
Spindle speeds range (R /min) | 100 ~ 2150 |
Spindle speeds series | 12 |
Dimension of worktable surface (mm) | 585mm*190mm |
Table travel (mm) | 370mm*140mm*515mm |
Dimensions of base (mm) | 635mm*460mm |
Overall height (m) | 1760mm |
Main Motor (W) | 1500W |
G.W / N.W (Kg) | 345Kg / 305 Kg |
Packing Dimensions (cm) | 80cm*75cm*186cm |
** All Specification and Design are subject to change without prior notice **
