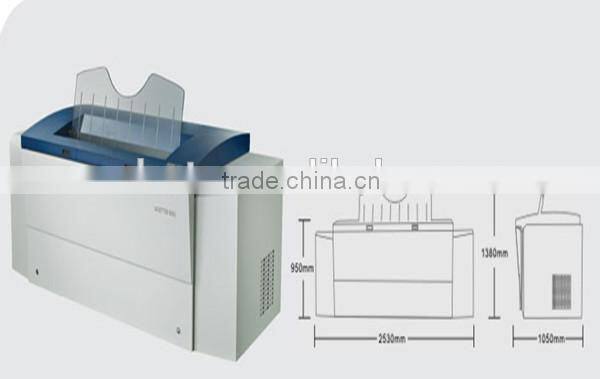

Amsky Offset Pringting Machine Ausetter 800 Thermal CTP Machine

Name: Amsky Offset Pringting Machine Ausetter 800 Thermal CTP Machine
Brand: Amsky
SKU: 133028143
Availability: InStock

Guangzhou Colorte Printing Company Limited

US$ 1 - 1 MOQ: 1 Set

Key Specifications

Use:

Offset Printing

Material:

Other, Iron

Style:

Other, Amsky CTP machine

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Use Offset Printing

Material Other, Iron

Style Other, Amsky CTP machine

Type Other, CTP Plate, plate setter

Place of Origin Guangdong, China

Brand Name Amsky

Model Number Ausetter U848

Amsky UV CTP machine Ausetter 800 series

Product Description

Competitive Advantage:

1. Dynamic Autofocus

2. Fast Balance &Auto Switch of Laser Beam

3. Auto Constant Thermostatic Control of Laser Chassis

4. Technology of DDS Frequency Multiplication and Drum Auto Balance

5. Accurate Graphic Size Calibration

Amsky Ausetter 800 Series Technical Specifications

Mode	U848
Exposing Method	External Drum
Imaging System	48-channel
	Discrete 400-410nm laser
Output Speed	22 plates/hour
	1,030×800mm 2,400dpi
Plate Size	Max.1,130×920mm,Min. 400×300mm
Exposing Size	Max.1,130×904mm
Media Type	UV plate, high-sensitive PS plate
Plate Thickness	0.15mm~0.3mm
Resolutions	2,400dpi
Repeatablity	±5μm(Continuous exposure over four times on the same plate with a temperature of 23℃ and 60% RH )
Interface	USB2.0/USB3.0(Recommended option is USB2.0)
Plate Loading	First manual, then autoload
Net Weight	900KG
Device Size	2,530×1,050×950mm(W×D×H)
Power supply	Single phase:200V-240V; Max power(Peak value):4KW
Environment	Recommended temperature: 21-25℃ Allowable temperature: 18-26℃ Humidity: <70%
