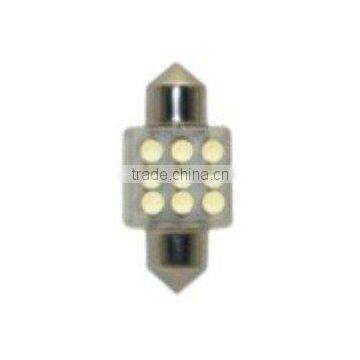

LED Licence Plate Light

Specifications

Size:10*36mm
Socket:Festoon Light
LED Quantity: with 8pcs super bright led

Description.:F0036008X50TD-3chips(Hot Products)

1. Size:10*36mm
2. Socket:Festoon Light
3. LED Quantity: with 8pcs super bright led
4. LED Specfication:5050 SMD
5. All the colors are available
6. Available Voltage: 12VDC/24VDC;
7. Warranty: 1 year (operate as specification)
8. Usage : It can be used as licence plate light, reading light, top light





Product Features:

1. 360 degree emitting angle, and easy to install;
2. Available size: 31mm, 36mm, 39mm, 41mm, 42mm, 44mm. For the special size can be designed by clients’s requirement.
3. With the different requirement both size and brightness of different cars, we can provide 2, 3, 4, 6, 8, 12 led with different design.





Absolute Maximum Ratings AT Ta=25°C

PARAMETER	MAX	UNIT
Continuous Forward Current	20	mA
Peak Forward Current(1/10 Duty Cycle 0.1ms Pulse Width)	100	mA
Reverse Voltage	5	V
Storage Temperature/humidity Range	--40°C to +100°C/40%to70%
Storage Temperature Range	--30°C to+65°C
Lead Solder Temperature 1.6mm Below Package 260°C For 5 seconds



Electronics And Optical Characteristics:Ta=25°C



Emitting Color	Forward Voltage/V	Totality Luminous Intensity/LM	Single LED Intensity/mcd	Dominant Wavelength/nm	Viewing Angle/deg	Color Temperature/K
White	12V	55--57	4000--6000	-----------------	360	6000--6500
Test Condition	Voltage: 14V		Current: 115—120mA		Power: 1.7W
	IR max: 0.01mA;     VR=5V
