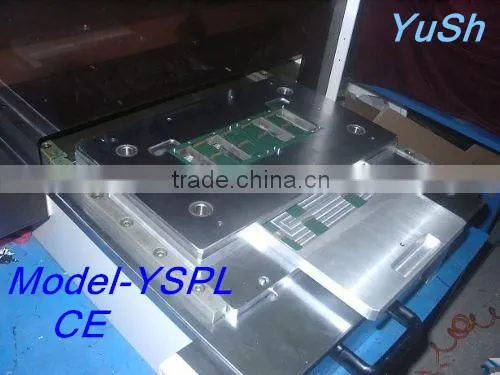

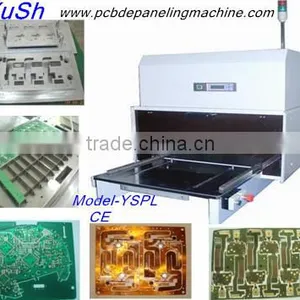

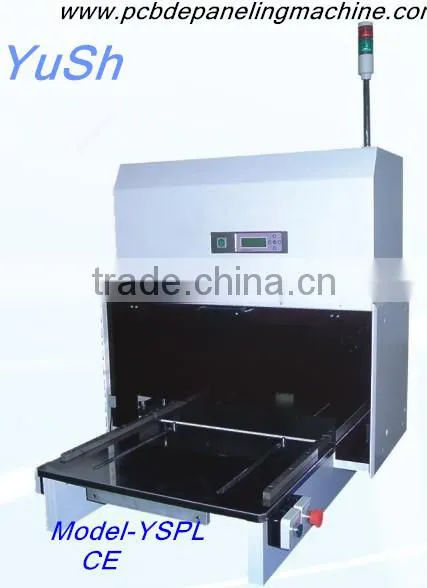

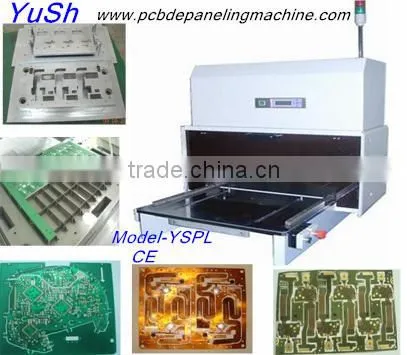

PCB punch separation YSPL
1.high degree of automation,high efficiency,simple operation
2.can replace multiple mold for production and mold changing easily

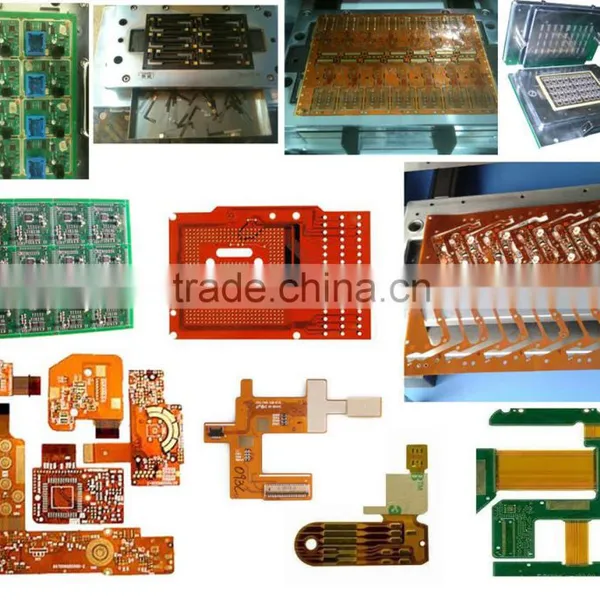

3.apply to cut rigid pcb,flexible pcb(FPC),rigid-flexible pcb
PCB punch separation specifications:
Model |
CWPL |
Punch Contribute (T) |
8 |
Working area (mm) |
460*320 |
Size (mm) |
930*880*1230 |
Weight (kg) |
680 |
Model |
CWPM |
Punch Contribute (T) |
8 |
Working area (mm) |
330*220 |
Size (mm) |
800x730x1230 |
Weight (kg) |
580 |
PCB punch separation features:
1.high degree of automation, simple operation and safety
2.can replace a variety of mold, and mold changing easily
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer
4.make internal stress generated by PCB cutting to minimize and avoid stress cracking of tin
5.punching cutting semi-finished PCB, FPC with high efficiency
6.mold and die can be made according to customer's request

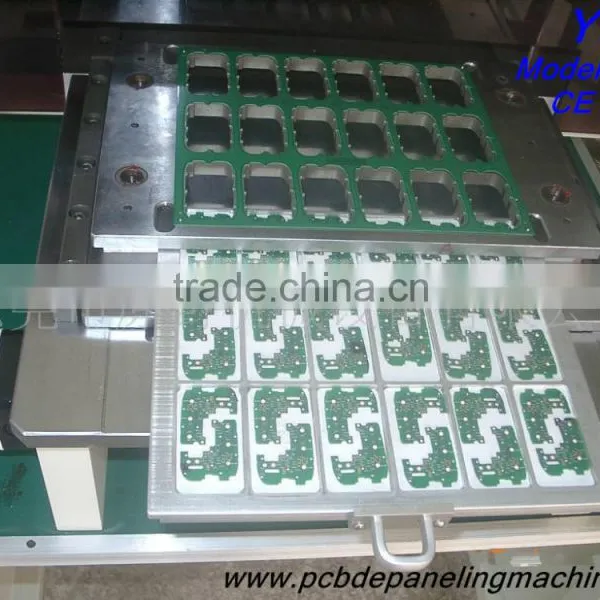

Punching Mold
PCB/ FPC die
1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3.Moveable lower die for easy loading and unloading PCB punch die| FPC die| PCB punch mold| FPC mould
