pcb depaneling
Model: YSV-1A
pcb guillotine machine length (mm): 460 or 600
cutting speed (mm/s): 100/200/300/500
cutting thickness(mm): 0.6-3.5
power supply(v): 110/220
Size(mm): 770*510*450
weight: 55kg

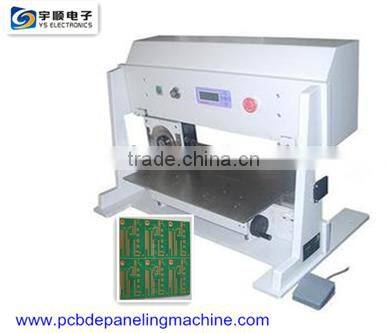

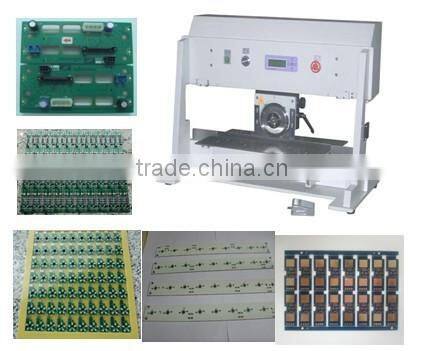

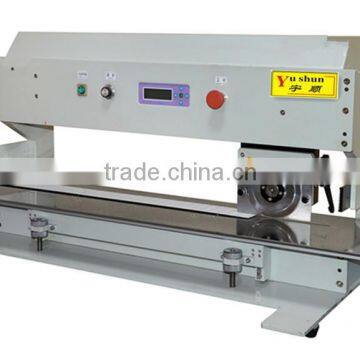

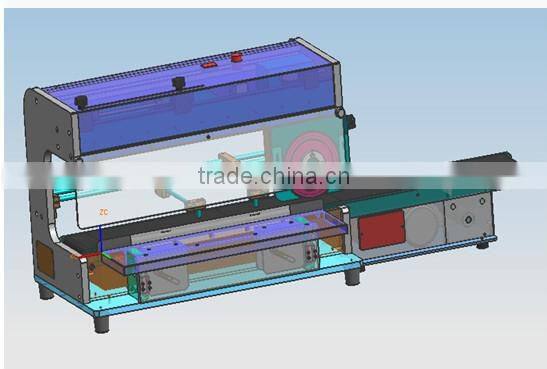

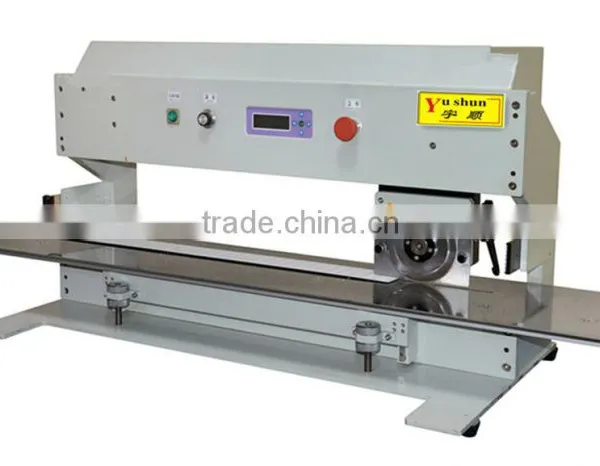

Motorized Circular / Linear Blade Depanelizer (YSV-1A)

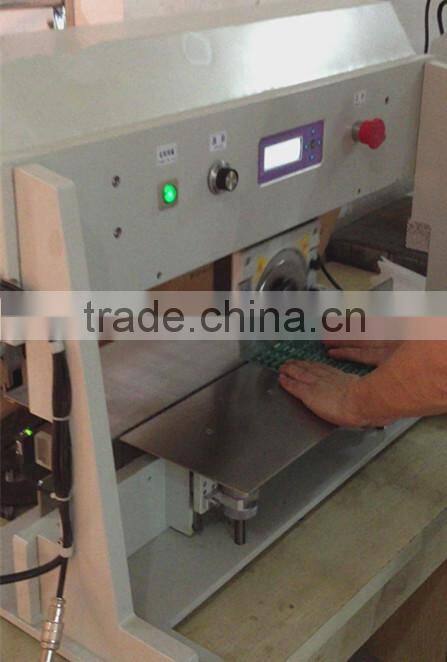

1.Separate pre-scored PCB assembly without stress on either PCB or component
2.One touch programming of cut length with digital display
3.Separating speed is adjusted by a rotary knob
4.Handle Intermittent scoring or cut-outs
5,Board with projected component can be cut precisely
6.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

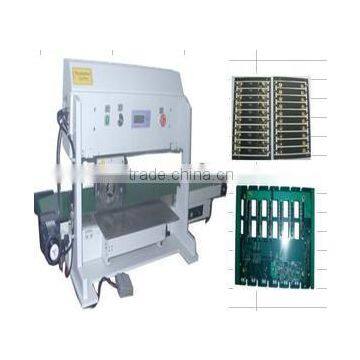

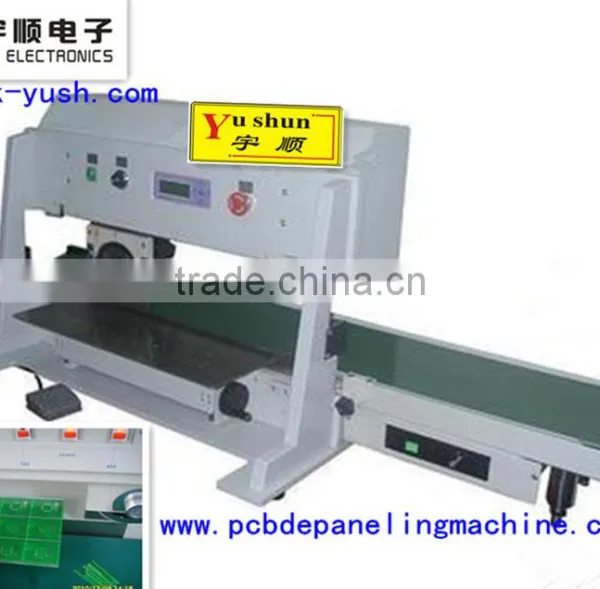

7.Optional PCB conveyor belt to remove finished board

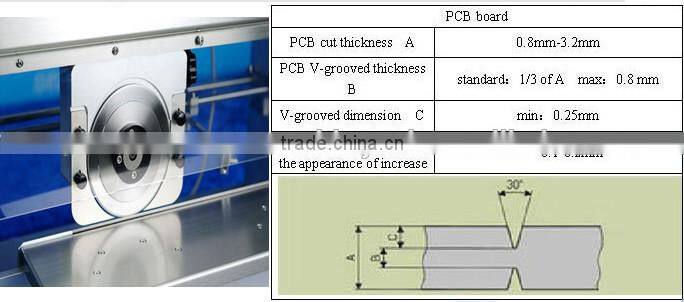

8.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
FEATURES:
To avoid welding spot cracking and deceasing physical strength during cutting process.
PCB remain stable when V-CUTTING,can make sure personal safety when moving back and forth.
Introduced Siemens PLC controller,easy to operate and high relibility.
Cutting principle is based on data convension.
Apply to all kinds of V-CUT PCB board.
Maximum length of the board: |
460mm / 600mm |
Package Size: |
770mm(L)*510mm(W)*450(H) |
Thickness: |
0.60~3.5mm |
Power supply: |
220VAC / 110V |
Working air pressure: |
0.4——0.6Mpa |
Weight: |
189 kg |
Scope of application: |
All V-CUT SMD PCB board |
