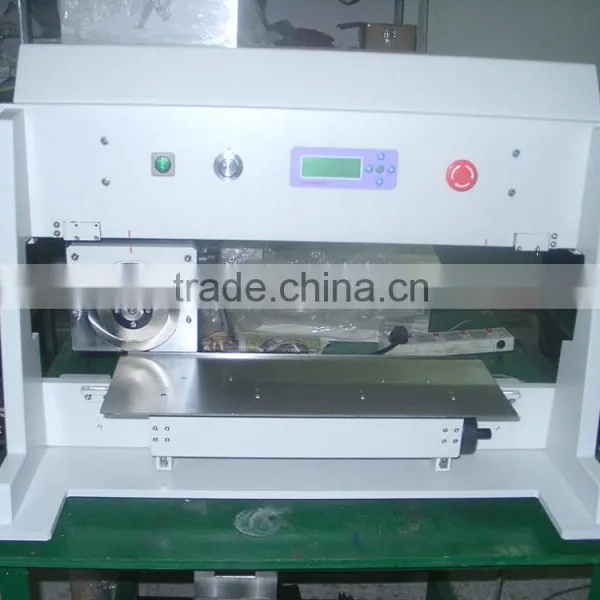

Help CenterRouting Machine for PCB IMS / Pcb Cutter / PCB Separator EM-260 -YSV-1A
Related Products
-
V Cut Groove PCB Cutting Machine / Pcb Routing Machine - YSVC-2US$ 1,000 - 5,000MOQ: 1 Set -
Cutting Pcb Board / Laser Cut Pcb Board / Pcb Board Circuit De-panelling MachineUS$ 39,800 - 39,800MOQ: 1 Set
-
Metal Core Depaneling Device / Separator Pcb BoardUS$ 39,800 - 39,800MOQ: 1 Set
-
Price of Pcb Board Cutter / Milling Pcb Boards CutterUS$ 39,800 - 39,800MOQ: 1 Set
-
Multilayer Pcb Board Supplier Cutter / Small Pcb Board CutterUS$ 39,800 - 39,800MOQ: 1 Set
Model: YSV-1A
length (mm): 460 or 600
speed (mm/s): 100/200/300/500
thickness(mm): 0.6-3.5
power supply(v): 110/220
Size(mm): 770*510*450
weight: 55kg
features:
1.Separate pre-scored PCB assembly without stress on either PCB or component
2.One touch programming of cut length with digital display
3.Separating speed is adjusted by a rotary knob
4.Handle Intermittent scoring or cut-outs
5,Board with projected component can be cut precisely
6.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7.Optional PCB conveyor belt to remove finished board
8.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Competitive Advantage:
1.YSV-1A pcb cutting machine suppliers original manufacturers
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
