High Compent Manual V-CUT PCB Cutting Machine -YSV-1M
- 500 Set / Sets per Month
- Shenzhen Shanghai.Ningbo
- T/T L/C D/P D/A Credit Card PayPal
-
2-Axis North-Seeking MEMS Gyro
-
High Precision Navigation MEMS Gyroscope
-
iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
-
iEVLEAD 9.6KW 40A SAE Level 2 RFID EVSE AC Charging Station
-
GT-RS368 resistance coil maxhine for coil with big in the middle small in both end heating and cooling companies
-
High Performance Navigation Grade MEMS Gyroscope
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Yush | Model Number: | YSV-1M |
Product Description

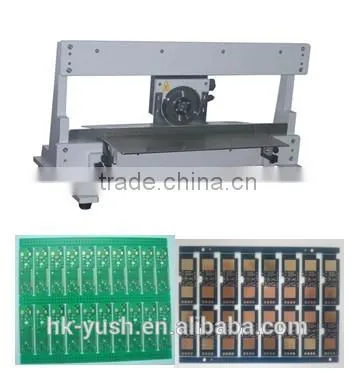

Manual V-CUT PCB Cutting Machine
YSV-1M
V-CUT PCB Cutting Machine Detailed Product Description
PCB depaneling economical type
1.PCB Protection
2.Calibration Blade Setting
3.All Speed Control By Human
4.More Accurating
V-CUT PCB Cutting Machine Specification:
Model | YSV-1M |
PCB Cutting Length (mm) | 460/700 |
Cutting Speed (mm/s) | manual |
Cutting Thickness (mm) | 0.6~3.5 |
Size (mm) | 400*780*480 / 1220*560*650 |
Weight (Kg) | 55 / 80 |
Blade working life for metal (Year) | 0.5 |
Blade working life for PCB (Year) | 1 |
Guarantee (Year) | 1 |
Delivery (Day) | 1 |
V-CUT PCB Cutting Machine Detailed Product Description
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
V-CUT PCB Cutting Machine Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
V-CUT PCB Cutting Machine Feature:

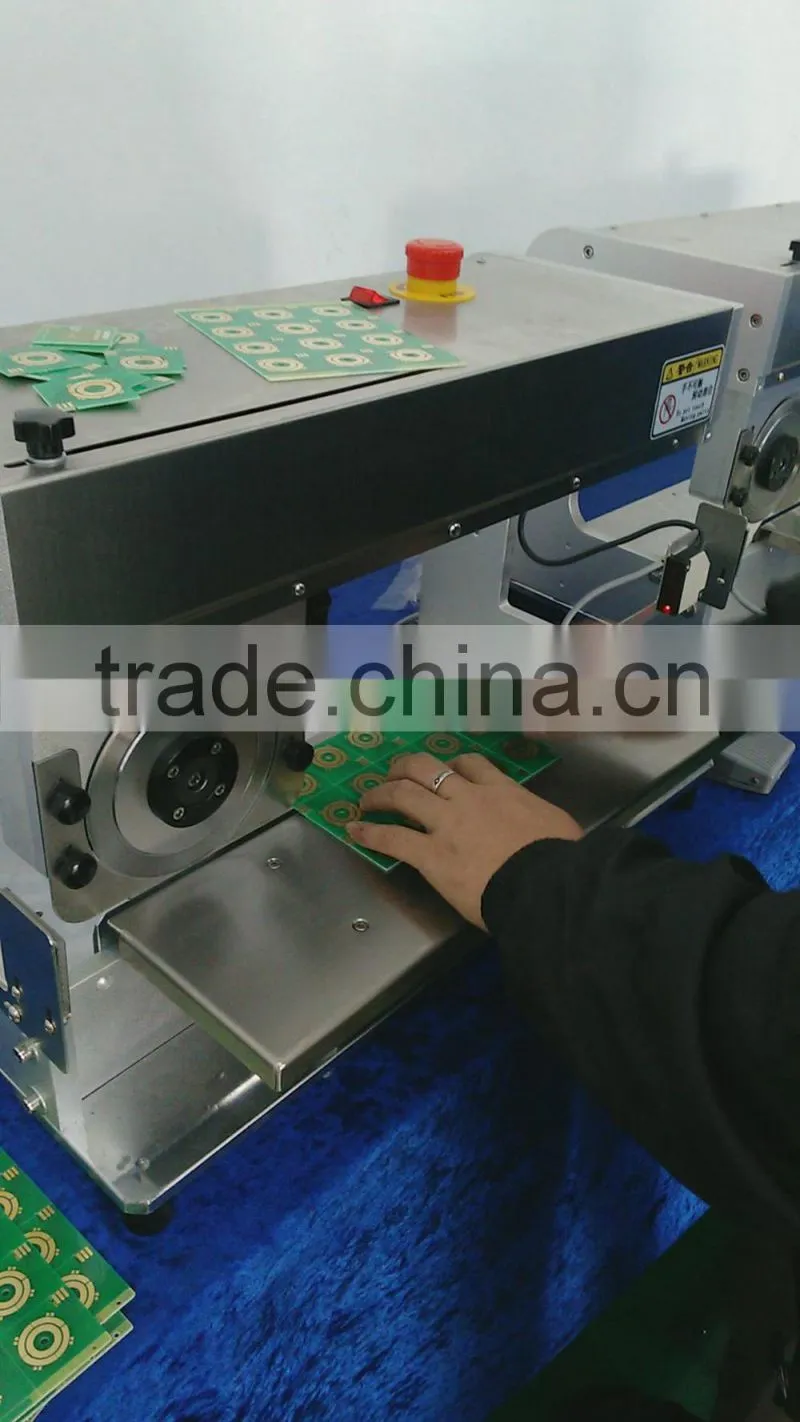

1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate pre-scored PCB assembly without stress on either PCB or component
3.One touch programming of cut length with digital display
4.Separating speed is adjusted by a rotary knob
5.Handle Intermittent scoring or cut-outs
6.Board with projected component can be cut precisely
7.Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8.Optional PCB conveyor belt to remove finished board
9.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
V-CUT PCB Cutting Machine Advantage :
1.Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years
experience,equipment quality will be satisfying.
